Altronics Redback A 1707A Operating Manual

50 event 4 output 24 hour 7 day timer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
www.altronics.com.au
Operating Manual
A 1707A

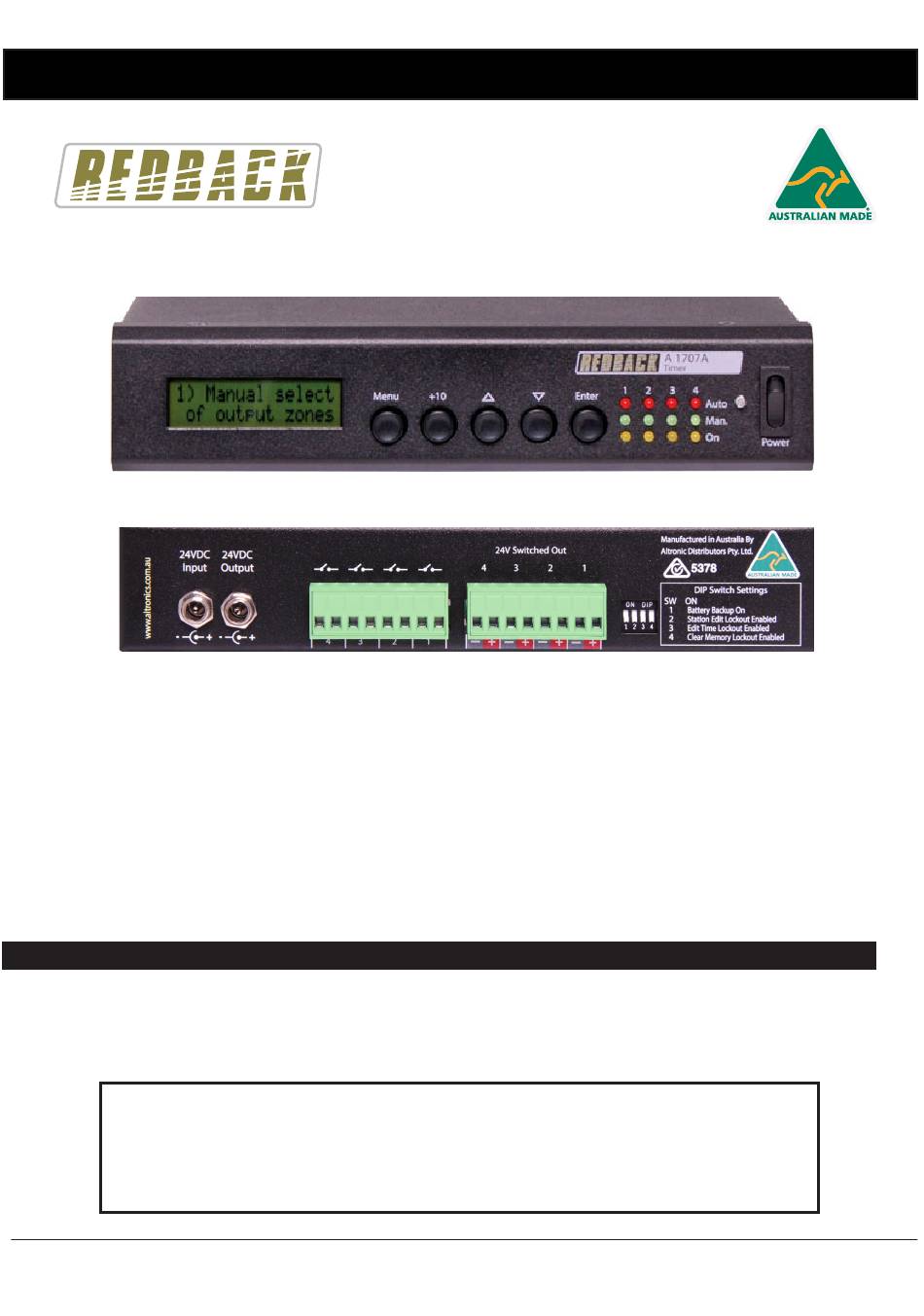

50 Event 4 Output 24 Hour 7 day Timer
Redback® Proudly Made In Australia
Distributed by Altronic Distributors Pty. Ltd.
Phone: 1300 780 999 Fax: 1300 790 999 Internet: www.altronics.com.au
IMPORTANT NOTE:
Please read these instructions carefully from front to back prior to installation.
They include important setup instructions.
Failure to follow these instructions may prevent the unit from working as designed.
User manual revision number: 1.0 18/11/2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Redback A 1707A and is the answer not in the manual?

Questions and answers

Related Manuals for Altronics Redback A 1707A

Summary of Contents for Altronics Redback A 1707A

  • Page 1 50 Event 4 Output 24 Hour 7 day Timer Redback® Proudly Made In Australia Distributed by Altronic Distributors Pty. Ltd. Phone: 1300 780 999 Fax: 1300 790 999 Internet: www.altronics.com.au IMPORTANT NOTE: Please read these instructions carefully from front to back prior to installation.

  • Page 2: Operation

    3.0 NAVIGATING THE MENUS When the unit is first powered up the model number and Chipset will be displayed briefly before the current time is shown. Altronics A 1707A Fig 3.1 DS3231 Chipset 1 The main screen (Current Time Screen) shown in Fig 3.2 displays the current time. When this screen is displayed the unit is running in “AUTO MODE”...
  • Page 3 3.1.1 Manual Selection OF Output Zones After selecting this option the screen should appear as shown in Fig 3.4. The square brackets indicate the cursor position on the screen. OUTPUT 1 Fig 3.4 [AUTO] www.altronics.com.au Redback® Proudly Made In Australia...

  • Page 4: Special Note

    Navigate to the “Add or Edit a Station Time” Sub Menu as shown in Fig 3.3. If this is the first time entering this menu the screen should appear as shown in Fig 3.6. The number “1)” shown is the Station (or Event) number which is highlighted by a flashing cursor. Fig 3.6 Start @ 00:00:00 Redback® Proudly Made In Australia www.altronics.com.au...
  • Page 5 Once the day or multiple days desired is shown on the LCD, press the “Enter” button to confirm. The cursor will now move to the start time. This is the time the “Event” is to take place and is in 24 hour format. www.altronics.com.au Redback® Proudly Made In Australia...
  • Page 6 Press the UP and DOWN 3) ZONE DURATION buttons to scroll up and 00:00:00 down. Enter Press the ENTER button to make your selection Menu Press the MENU button to exit at any time. 49) ZONE DURATION 00:00:00 Redback® Proudly Made In Australia www.altronics.com.au...
  • Page 7 Press the UP and DOWN 02:00:00 buttons to change the Duration” screen. hour/min/secs. Enter Press the ENTER button to make your selection Menu Press the MENU button to exit at any 1) ZONE DURATION time. 22:00:00 Fig 3.13 www.altronics.com.au Redback® Proudly Made In Australia...
  • Page 8 Press the UP and DOWN 02:00:00 Edit buttons to change the hour/min/secs. Enter Press the ENTER button to make your selection Menu Press the MENU button to exit at any Monday time. 22:00:00 Edit Fig 3.14 Redback® Proudly Made In Australia www.altronics.com.au...

  • Page 9: Important Note

    If the entire A 1707A requires backup power a backup power supply can be connected to the 24V DC input. DIP Switch Settings SW ON Battery Backup On Fig 4.1 Station Edit Lockout Enabled Edit Time Lockout Enabled Clear Memory Lockout Enabled www.altronics.com.au Redback® Proudly Made In Australia...

  • Page 10: Battery Backup

    To replace the battery, remove the lid and use a CR2032 battery (such as Altronics S 4999A) as the replacement. The location of the battery is shown in Fig 5.1.
  • Page 11 The Zone 1 switched output of the timer is then used to trigger a 24V DC bell. As the current draw of the Bell is more than 250mA a relay board is used to switch an external power supply. The Altronics S 4444 24V Relay Board as shown is an inexpensive and easily installed option designed for this purpose.
  • Page 12 A sheet has been provided to record all of the Event(s) information for easy reference. OUTPUT 1 = OUTPUT 2 = OUTPUT 3 = OUTPUT 4 = STATION OUTPUT TURN ON TIME DURATION TURN OFF TIME Redback® Proudly Made In Australia www.altronics.com.au...
