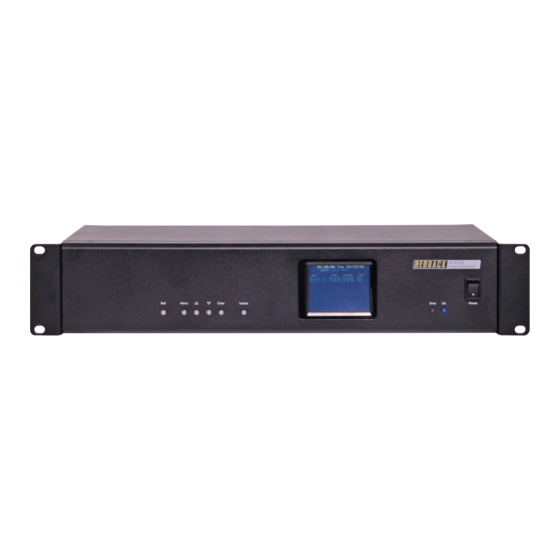

A 4510 Software Programming Guide
www.altronics.com.au
Software Programming Guide
A 4510
Yearly Timer
Redback® Proudly Made In Australia
Distributed by Altronic Distributors Pty. Ltd.
Phone: 1300 780 999 Fax: 1300 790 999 Internet: www.altronics.com.au
User manual revision number: 1.0 03/02/2017

Advertisement

loading
Need help?

Need help?

Do you have a question about the REDBACK A 4510 and is the answer not in the manual?

Questions and answers

Related Manuals for Altronics REDBACK A 4510

Summary of Contents for Altronics REDBACK A 4510

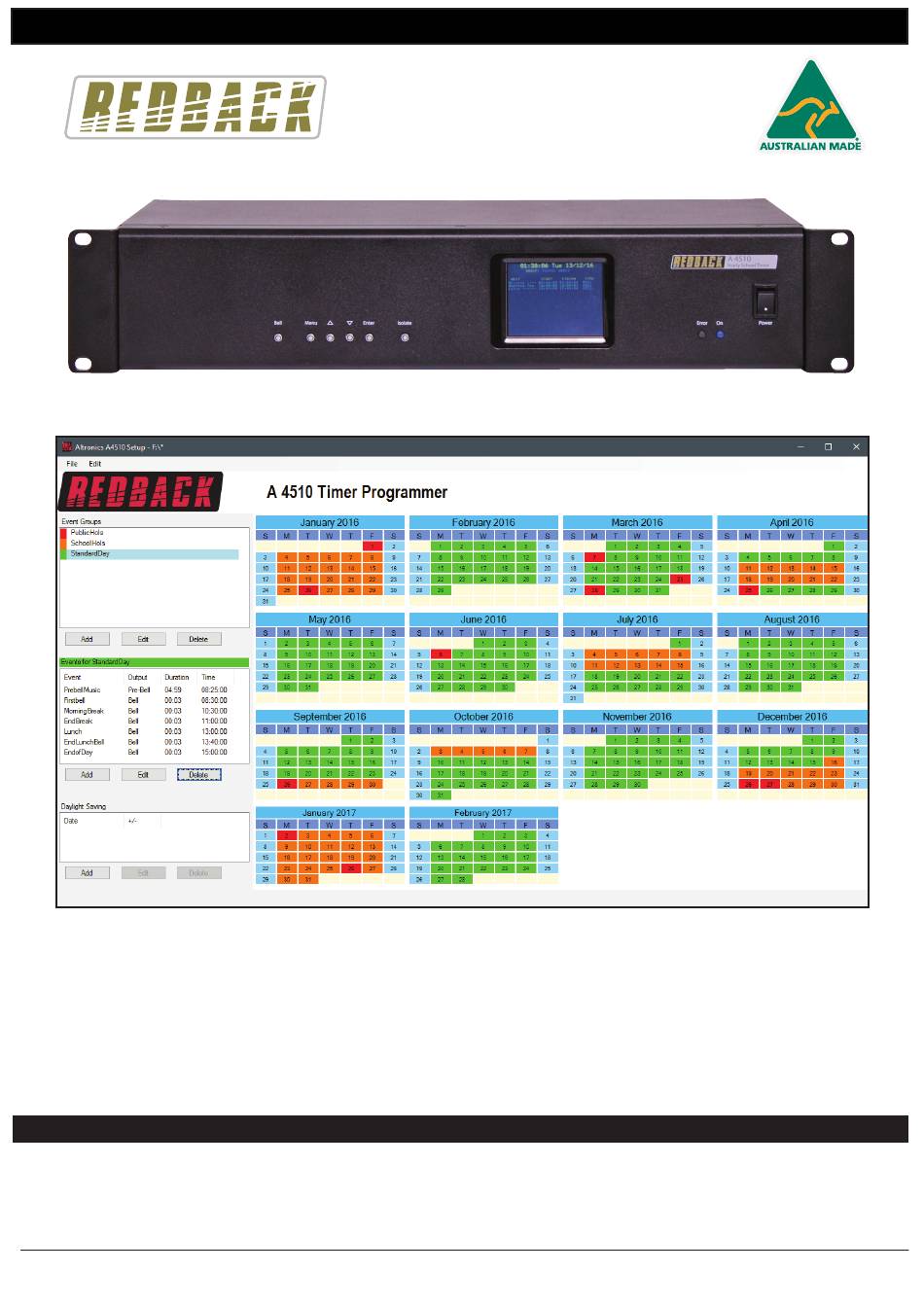

  • Page 1 A 4510 Software Programming Guide www.altronics.com.au Software Programming Guide A 4510 Yearly Timer Redback® Proudly Made In Australia Distributed by Altronic Distributors Pty. Ltd. Phone: 1300 780 999 Fax: 1300 790 999 Internet: www.altronics.com.au User manual revision number: 1.0 03/02/2017...
  • Page 2 In order to access the program, the SD card will need to be connected to a Windows based device such as a PC or laptop. It will need to be equipped with an SD card reader to do this. If an SD slot is not available then the Altronics D 0371A USB Memory Card Reader or similar would be suitable (not supplied).
  • Page 3 “StandardDay”, “PublicHols”, “SchoolHols”, “StudtFreeDay”, “AssemblyDay”, etc up to a maximum of 12 characters. To add a group, simply press the “ADD” button in the Event Groups section of the window. The window shown below should appear. www.altronics.com.au Redback® Proudly Made In Australia...
  • Page 4 “SchoolHols”. We can do this by following the same procedure just outlined or we can use the “Duplicate Event Group” option (see section 6.0 for more details). The result is shown in figure 5. Redback® Proudly Made In Australia www.altronics.com.au...
  • Page 5 February 8th has been selected. We will call this the “Single Day” selecting mode. To undo the selection press the right mouse button on the same day, and the day will become deselected. Fig 6 www.altronics.com.au Redback® Proudly Made In Australia...
  • Page 6 You will notice that the selected days will flow over the days and months. For the purposes of our example we will select all days of the calendar as shown below (figure 8). Fig 8 Redback® Proudly Made In Australia www.altronics.com.au...
  • Page 7 The Prebell and Music options will play the MP3 audio files in the “Prebell” and “Music” folders of the SD card. NOTE: If more than one MP3 file is in either of these folders, then each time these outputs are activated the audio files will be randomly played. www.altronics.com.au Redback® Proudly Made In Australia...
  • Page 8 Enter all details and then press the “OK” button. The Event should now appear in the events list for the StandardDay group as shown below in figure 12. Fig 12 The Prebell has been programmed to start at 8:25 AM and play the MP3 file in the “Prebell” folder for five minutes. Redback® Proudly Made In Australia www.altronics.com.au...
  • Page 9 To change the PrebellMusic Event ,simply highlight this event and press the edit button. The Event window will appear and then the changes can be made. Once done, the FirstBell Event can be programmed and saved and will appear in the Events list as shown in figure 13. Fig 13 www.altronics.com.au Redback® Proudly Made In Australia...
  • Page 10 Make sure the A 4510 is OFF and insert the SD card into the slot in the rear; it will click when fully inserted. The A 4510 can now be switched On. If all is well, after the startup screen is displayed the current time and list of the events should be displayed on the screen. Redback® Proudly Made In Australia www.altronics.com.au...
  • Page 11 Prebell duration to 4 minutes and 59 seconds, the Bell duration to 3 seconds and the Music duration to 4 minutes and 59 seconds as shown below. Now whenever we create a new Event the duration of the selected output will default to these settings. www.altronics.com.au Redback® Proudly Made In Australia 11...
  • Page 12 Begin by highlighting the “PrebellMusic” Event in the StandardDay Group. Navigate to the “Edit” menu in the top left cor- ner and then select “Event, Duplicate” as shown in figure 16. Fig 16 The Duplicate Event window should now appear with the “PrebellMusic” event properties as shown in figure 17. Fig 17 Redback® Proudly Made In Australia www.altronics.com.au...
  • Page 13 There is no option to save the configuration with a preferred name. The configuration file is saved to the CONFIG folder and the event group information is saved to the GROUPS folder. www.altronics.com.au Redback® Proudly Made In Australia 13...
  • Page 14 Type in a different name, change the colour and then press OK. For our example we will use the name Mondays and change the colour to yellow as shown in figure 22. NOTE: The same name cannot be used for the new Event Group. Fig 22 Redback® Proudly Made In Australia www.altronics.com.au...
  • Page 15 We will then edit the events for the newly created Mondays Event Group and add an assembly at 9:30 am. Finally the rele- vant school term Monday’s will be selected on the calendar. The result is shown in figure 24. Fig 24 www.altronics.com.au Redback® Proudly Made In Australia 15...

  • Page 16: Daylight Saving

    There is no option to save the configuration with a preferred name. The configuration file is saved to the CONFIG folder and the event group information is saved to the GROUPS folder. Redback® Proudly Made In Australia www.altronics.com.au...
