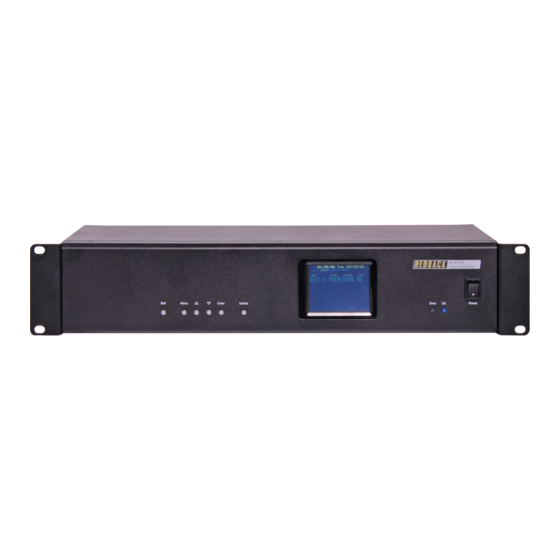

A 4510 Yearly Timer
www.altronics.com.au
Operating Manual
A 4510
Yearly Timer
Redback® Proudly Made In Australia
Distributed by Altronic Distributors Pty. Ltd.
Phone: 1300 780 999 Fax: 1300 790 999 Internet: www.altronics.com.au
IMPORTANT NOTE:
Please read these instructions carefully from front to back prior to installation.
They include important setup instructions.
Failure to follow these instructions may prevent the unit from working as designed.
User manual revision number: 1.4 27/11/2018
Advertisement
Table of Contents
Related Manuals for Altronics Redback A 4510
Summary of Contents for Altronics Redback A 4510
- Page 1 Yearly Timer Redback® Proudly Made In Australia Distributed by Altronic Distributors Pty. Ltd. Phone: 1300 780 999 Fax: 1300 790 999 Internet: www.altronics.com.au IMPORTANT NOTE: Please read these instructions carefully from front to back prior to installation. They include important setup instructions.
-
Page 2: Table Of Contents
2.4 Audio Connections 2.5 DIP Switch settings 2.6 24V Output Connections 2.7 Battery Backup (Of Time) 3.0 Troubleshooting 3.1 Symptoms and Remedies 4.0 Specifications 5.0 Warranty Published by Altronic Distributors © 2017 Altronic Distributors Redback® Proudly Made In Australia www.altronics.com.au... -
Page 3: Introduction
• Suitable for any amplifier with an auxiliary input • 10 Year Warranty • Australian Designed and Manufactured 1.3 WHAT’S IN THE BOX A 4510 Yearly School Timer SD Card 24V 2A DC Plugpack Instruction Booklet Programming Booklet www.altronics.com.au Redback® Proudly Made In Australia... -
Page 4: Front Panel Guide
This LED indicates the unit has a fault condition with the MP3 playback. On Indicator This LED indicates the unit has power. Power Switch Use this to turn the unit on. 1.5 REAR PANEL CONNECTIONS Redback® Proudly Made In Australia www.altronics.com.au... - Page 5 Level Level Backup www.altronics.com.au Common 24V Out This is a common 24V DC output which is activated when any of the Prebell, Bell, or Music tones or the Relay only option are activated. The terminals provided can be used for “Normal” or “Failsafe” modes (see section 2.6 for more details).
- Page 6 Connects to a 24V DC backup supply with at least 1 amp current capacity. (Please observe the polarity) 24V DC input Connects to a 24V DC Plugpack with 2.1mm Jack. (The unit is supplied with a 24V DC 2 Amp plugpack). Redback® Proudly Made In Australia www.altronics.com.au...
-
Page 7: Setup
PC. You will need a Windows based device such as a PC or laptop equipped with an SD card reader to do this. If an SD slot is not available then the Altronics D 0371A USB Memory Card Reader or similar would be suitable (not supplied). - Page 8 Once the calendar has been programmed insert the SD card again. If the self check is successful and the MP3 files and folders, Config and Groups configuration are OK then the unit will dis- play the “Current Time” screen and the upcoming events. Redback® Proudly Made In Australia www.altronics.com.au...
-
Page 9: Setting The Current Time
This switch is used to loop the Bell tone, or play the Bell tone only once after it has been triggered. (Note: this affects only the automatic activation of the Bell tone. It does not apply to manual operation of the front Bell button). OFF = Loop, ON = Play Once Switch 2-8 Not Used. www.altronics.com.au Redback® Proudly Made In Australia... -
Page 10: Output Connections
A power fail will not mean a loss of the programmed events, as they are stored on the SD card. Once power is restored the unit will power up and read the events from the SD card and operate as normal. Redback® Proudly Made In Australia www.altronics.com.au... -
Page 11: Troubleshooting
PLEASE NOTE: 24V DC Output loads limited 0.12Amp each WEIGHT: ≈..........2.8 kg INPUT CONNECTORS: COLOUR: .............Black 24V DC Power:....Screw Terminals 24V DC Power:....2.1mm DC Jack * Specifications subject to change without notice www.altronics.com.au Redback® Proudly Made In Australia 11... -
Page 12: Warranty
Australian Made Status All Redback house products made by Altronics will now be sporting the official Australian Made logo. Since starting manufacturing of commercial audio equipment in the mid 70’s we have always taken pride in producing a quality local product.
