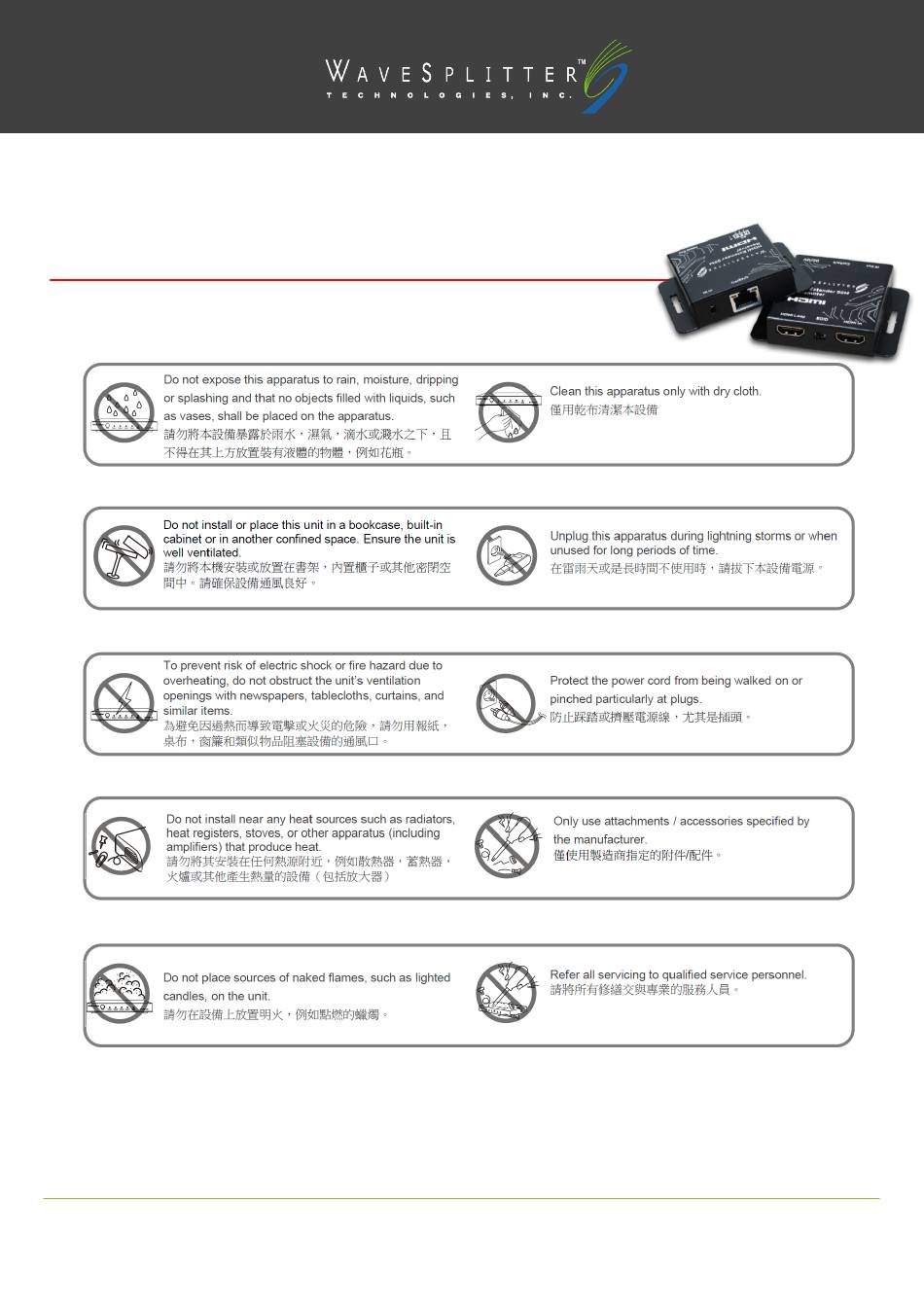

- Page 1 OPERATION MANUAL Model No. WST-PEX004 HDMI 1080P PoC & IR over Single Cat.5e/6 Extender with Loop out, 50m Safety Instruction Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
- Page 2 Introduction The WST-PEX004 Extender is a simple to use plug and play solution which lets the user extend HDMI signals up to 50m using a single low-cost Cat.6 UTP cable (not included). For added convenience, IR signals (20-60KHz) can also be extended using the supplied IR Receiver and Emitter cables.
- Page 3 Plug in the IR-RX cable and IR-TX cable to the IR jack port located on the Receiver and transmitter banal. Power on the transmitter firstly, then power on the source and sink. Applications Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800...
- Page 4 TX : 79 x 68 x 17mm RX : 79 x 68 x 17mm Weight TX : 120g RX : 115g Country of Origin China Certification Safety & Emission CE / FCC / RoHS / RECAH Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
