Related Manuals for WaveSplitter WST-PEX009
Summary of Contents for WaveSplitter WST-PEX009

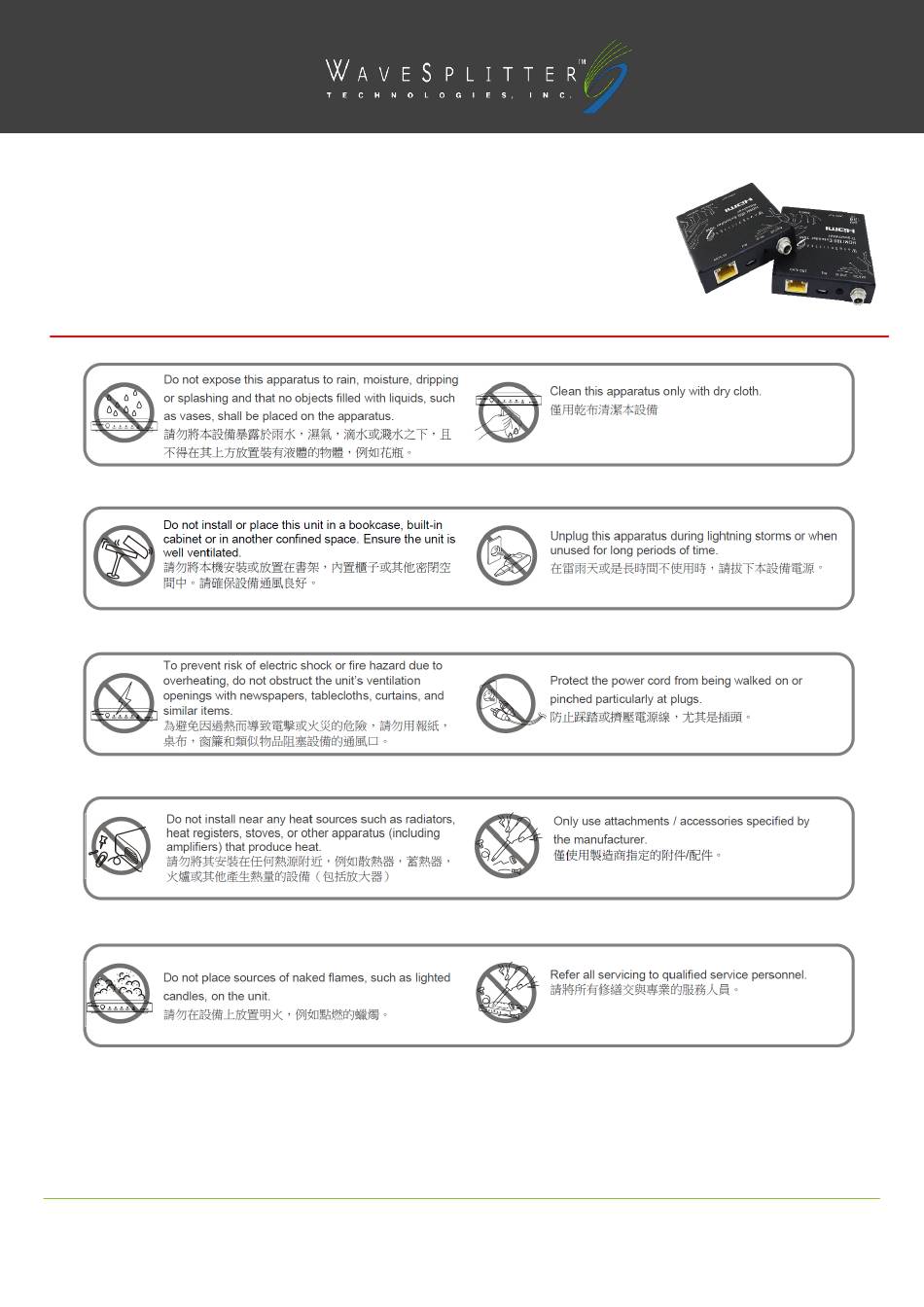

- Page 1 OPERATION MANUAL Model No. WST-PEX009 HDMI 4K@60Hz & IR over Single Cat.6 Extender with PoC & Loop out & Audio Extraction, 70m Safety Instruction Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
- Page 2 OPERATION MANUAL Introduction The WST-PEX009 Extender is a simple to use plug and play solution which lets the user extend HDMI signals up to 70m using a single Cat.6 UTP cable (not included). The Extender supports HDMI 2.0 18G specification with resolutions up to 4K Ultra HD. It also supports High-Dynamic Range that enables video content with enhanced brightness, greater contrast of black and white and a much wider color gamut, making it perfect for an immersive home cinema experience.
- Page 3 Plug in the IR-RX cable and IR-TX cable to the IR jack port located on the Receiver and transmitter banal. Power on the transmitter firstly, then power on the source and sink. Applications Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
- Page 4 TX : 75.8 x 72.2 x 18mm RX : 75.8 x 72.2 x 18mm Weight TX : 152.6g RX : 152.6g Country of Origin China Certification Safety & Emission CE / FCC / RoHS / REACH Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
