INSTALLATION & OPERATING
INSTRUCTIONS
DAKOTA
OUTDOOR GAS APPLIANCE
WARNING!
!
WARNING

Advertisement

Table of Contents
loading

Related Manuals for Heat-N-Glo DAKOTA

Summary of Contents for Heat-N-Glo DAKOTA

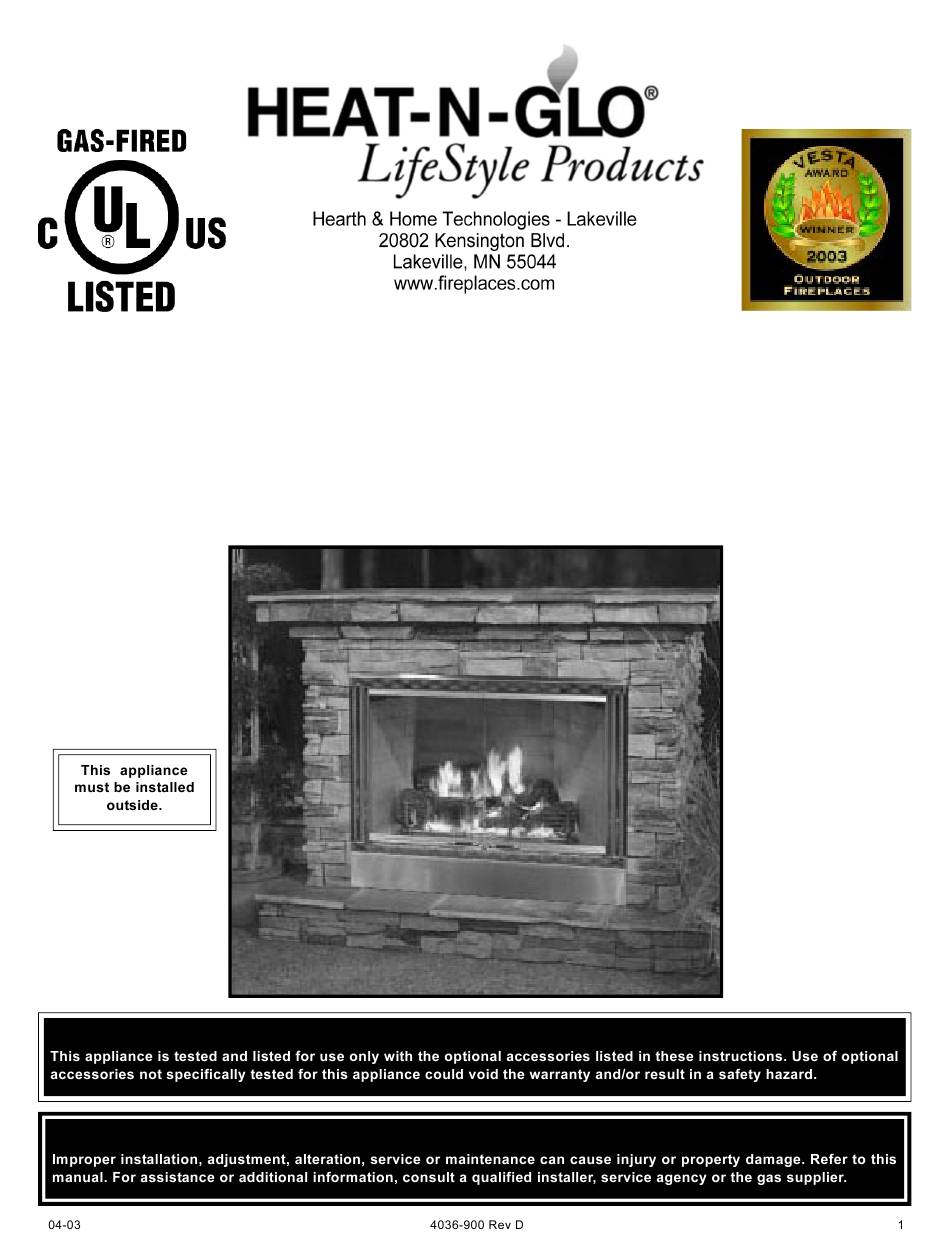

  • Page 1 All manuals and user guides at all-guides.com INSTALLATION & OPERATING INSTRUCTIONS DAKOTA OUTDOOR GAS APPLIANCE WARNING! WARNING...

  • Page 2: Safety Precautions

    All manuals and user guides at all-guides.com DAKOTA INSTALLATION INSTRUCTIONS Table of Contents SAFETY PRECAUTIONS A. LISTINGS AND CODE APPROVALS WARNING!

  • Page 3: Description Of The Appliance

    All manuals and user guides at all-guides.com DAKOTA INSTALLATION INSTRUCTIONS B. DESCRIPTION OF THE APPLIANCE 1. THE DAKOTA GAS APPLIANCE SYSTEM CONSISTS OF THE FOLLOWING: 2. OPTIONAL COMPONENTS INCLUDE: Note: Figure 1 - Dakota Gas Appliance Dimensions...

  • Page 4: Replacement Parts/Exploded View

    All manuals and user guides at all-guides.com DAKOTA INSTALLATION INSTRUCTIONS C. REPLACEMENT PARTS/EXPLODED VIEW...
  • Page 5 All manuals and user guides at all-guides.com DAKOTA INSTALLATION INSTRUCTIONS 9r†p…vƒ‡v‚Ã‚sÃQh …‡ Æ 96FPU6 R‡’ 9‚‚…Ã6††r€iy’Grs‡ #"%% 9‚‚…Ã6††r€iy’Svtu‡ #"%$(( " 7‚‡‡‚€ÃD‡hxr #"%!## 9‚‚…ÃB…vyyrÃ7h…†Grs‡ #"% 9‚‚…ÃB…vyyrÃ7h…†Svtu‡ #"% " U‚ƒÃ@‘uhˆ†‡ #"% ## & Bh†ÃC‚‚q #"% &# 9‚‚…ÃT‡‚ƒÃÃ7‚‡‡‚€ #"% ( TvqrÃSrs…hp‡‚…’Ã8‚‰ r…† #"% &...
  • Page 6 All manuals and user guides at all-guides.com DAKOTA INSTALLATION INSTRUCTIONS...
  • Page 7 All manuals and user guides at all-guides.com DAKOTA INSTALLATION INSTRUCTIONS Æ 9r †p…vƒ‡v‚Ã‚sÃQh …‡ 96FPU6 R‡’ Why‰ rÃ6††r€iy’ ÃÃGQ #"%$ Why‰ rÃ6††r€iy’ ÃÃIB #"%% " @yi‚Ã(ƒÃ7…h†† #! !& " PIPAAÃWhy‰ r #! !' "! 7ˆ†uvtÃÃ"'ÃAÃIQUÃà !ÃHÃIQU #! " "" Why‰ rÃ7‚‘ÃQyh‡r #"% !!

  • Page 8: Locations And Clearances

    All manuals and user guides at all-guides.com DAKOTA INSTALLATION INSTRUCTIONS D. LOCATIONS AND CLEARANCES 1. APPLIANCE LOCATIONS AND SPACE REQUIREMENTS Figure 2 - Appliance Locations Figure 3 - Installation Along a Wall or an Exterior Chase Figure 4 - Minimum Clearances to a Combustible Enclosure...
  • Page 9 All manuals and user guides at all-guides.com DAKOTA INSTALLATION INSTRUCTIONS Figure 5 - Fireplace Opening Minimum Clearances...

  • Page 10: Installation Of Appliance

    All manuals and user guides at all-guides.com DAKOTA INSTALLATION INSTRUCTIONS 2. ASSEMBLE A PREFAB ENCLOSURE 3. BUILDING AN OUTDOOR ENCLOSURE CLEARANCES! WARNING! Figure 6 - Framing the Appliance E. INSTALLATION OF APPLIANCE Installation should be done by a qualified technician! WARNING! 1.

  • Page 11: Positioning The Appliance

    All manuals and user guides at all-guides.com DAKOTA INSTALLATION INSTRUCTIONS 2. POSITIONING THE APPLIANCE CLEARANCES! Note: must Important: 3. LEVELING THE APPLIANCE 4. GAS LINE AND VALVE ASSEMBLY INSTALLATION Figure 8 - Placing the Burner Assembly Note:...
  • Page 12 All manuals and user guides at all-guides.com DAKOTA INSTALLATION INSTRUCTIONS Figure 11 - Connect Lines to Valve Figure 9 - Remove Right Side of Valve Box & Bend Flanges Figure 12 - Connect Flexline Figure 10 - Secure Valve Box to FPS...

  • Page 13: Glass Doors

    All manuals and user guides at all-guides.com DAKOTA INSTALLATION INSTRUCTIONS 5. COMPLETION OF THE ENCLOSURE AND FINISHING MATERIAL Note: 6. GLASS DOORS 7. GRATE ASSEMBLY AND FIBER ASH BED Figure 13 - Fiber Ash Bed...

  • Page 14: Log Placement

    All manuals and user guides at all-guides.com DAKOTA INSTALLATION INSTRUCTIONS 8. LOG PLACEMENT Figure 17 - Left Center Log Figure 18 - Right Center Log 9. LAVA ROCK Figure 14 - Rear Log Figure 15 - Front Right Log Figure 19 - Lava Rock...
  • Page 15 All manuals and user guides at all-guides.com DAKOTA INSTALLATION INSTRUCTIONS F. LIGHTING INSTRUCTIONS FOR THE “S” SERIES...

  • Page 16: Maintenance Instructions

    All manuals and user guides at all-guides.com DAKOTA INSTALLATION INSTRUCTIONS G. MAINTENANCE INSTRUCTIONS 1. CLEANING THE BURNER AND CONTROL 5. LOGS COMPARTMENT 2. CHECKING FLAME PATTERNS CAUTION: Note: Figure 20 - Thermocouple 6. STAINLESS STEEL PARTS 3. ADJUSTING THE AIR SHUTTER...
  • Page 17 All manuals and user guides at all-guides.com DAKOTA INSTALLATION INSTRUCTIONS H. TROUBLESHOOTING - “S” SERIES...
  • Page 18 All manuals and user guides at all-guides.com DAKOTA INSTALLATION INSTRUCTIONS Homeowner’s Notes...
  • Page 19 All manuals and user guides at all-guides.com DAKOTA INSTALLATION INSTRUCTIONS Index...
  • Page 20 All manuals and user guides at all-guides.com WARRANTY FOR HEAT-N-GLO FIREPLACES...
