HD1 Build
Wiring Diagram
Version 1.

Advertisement

loading
Need help?

Need help?

Do you have a question about the HD1 Build and is the answer not in the manual?

Questions and answers

Related Manuals for Rotor Riot HD1 Build

Summary of Contents for Rotor Riot HD1 Build

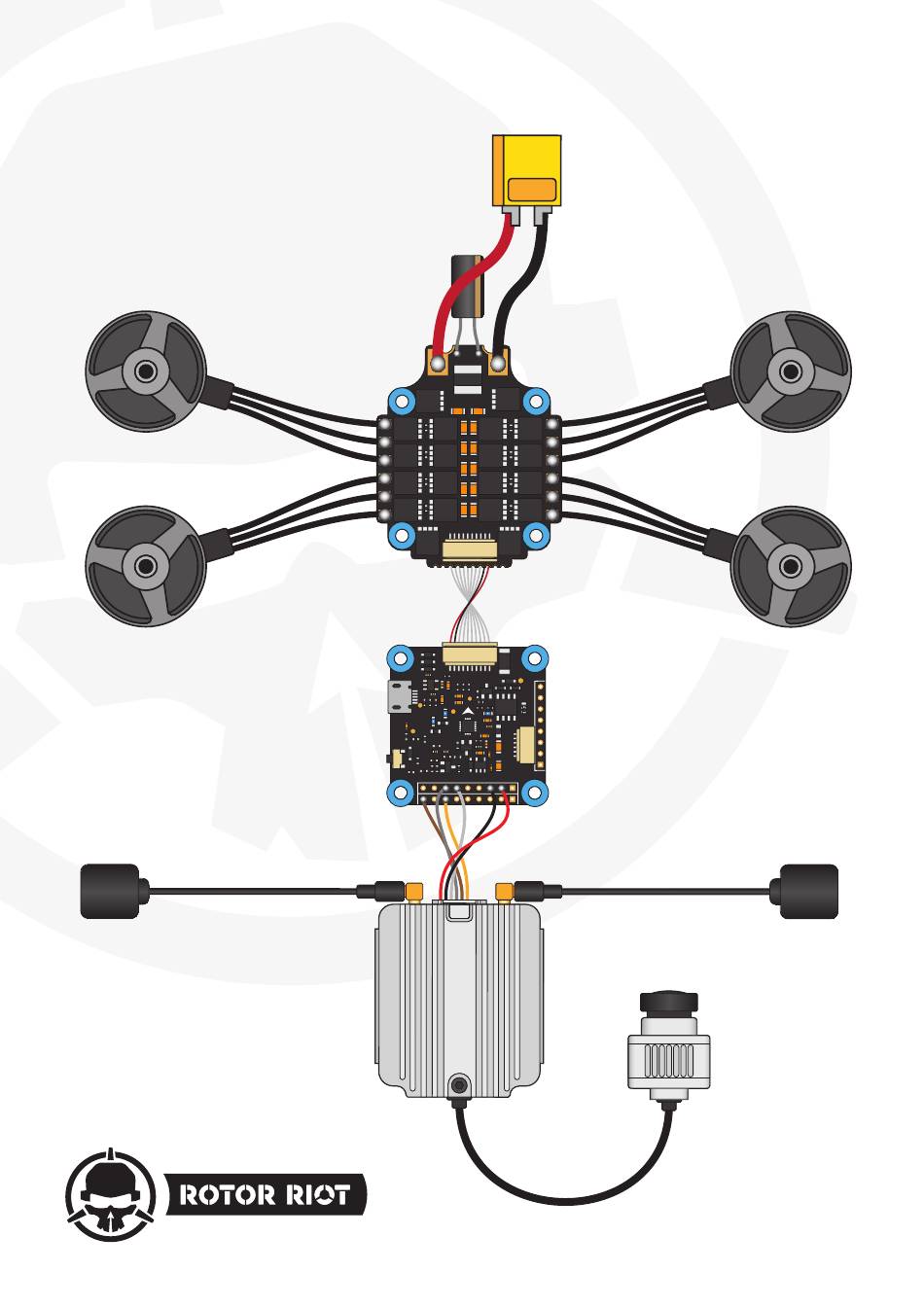

  • Page 1 HD1 Build Wiring Diagram Version 1.
  • Page 2 HD1 Build Wire Harness Closeup Power (7.4 - 17.6 volts) Power GND UART RX UART TX Signal GND DJI HDL (S.BUS)

  • Page 3: Frame Assembly

    HD1 Build Frame Assembly M3x8 Top Plate Standoffs BACK Press Fit Nuts Main Plate FRONT Arms M3x8 X-Brace M3x12 M3x8 screw Make sure the Press Fit Nuts are facing upwards, and not towards the arms. Tighten screws until snug, and then a little bit more.
  • Page 4 HD1 Build Motor and ESC Connections Direction of Flight Assemble the bottom part of the frame. The X-shaped brace goes on the very bottom. Solder the XT-60 Battery Connector and Capacitor as shown. Note the polarity of the capacitor! Install the motors and solder each The side with the stripe is negative.
  • Page 5 HD1 Build DJI Digital HD FPV System Connections Direction of Flight Install the DJI Digital HD FPV System. Don’t connect power without antennas installed on the DJI Air Unit!
  • Page 6 HD1 Build Flight Controller Connections Direction of Flight Connect the Flight Controller to the ESC with the supplied harness. Solder the DJI Air Unit wire harness to the Flight Controller as shown. The Flight Controller is installed with the gyro chip facing upwards.

  • Page 7: Final Assembly

    HD1 Build Final Assembly Direction of Flight That’s it for the soldering! Now finish up the build by fastening any loose wires with zip ties or electrical tape.
  • Page 8 HD1 Build BetaFlight Setup Connect your Flight Controller to a computer with BetaFlight. In the Configuration Tab, use the following settings. Click “Save and Reboot” when done.
  • Page 9 HD1 Build BetaFlight Setup In the Modes Tab, use the following setting. Click “Save”. In the Ports Tab, use the following settings. Click “Save and Reboot”.
  • Page 10 HD1 Build BetaFlight Setup Since the ESC is rotated 90 degrees to get the battery connector on the side, we need to enter some commands in the CLI page in BetaFlight. resource MOTOR 1 A03 resource MOTOR 2 B00 resource MOTOR 3 A02...
