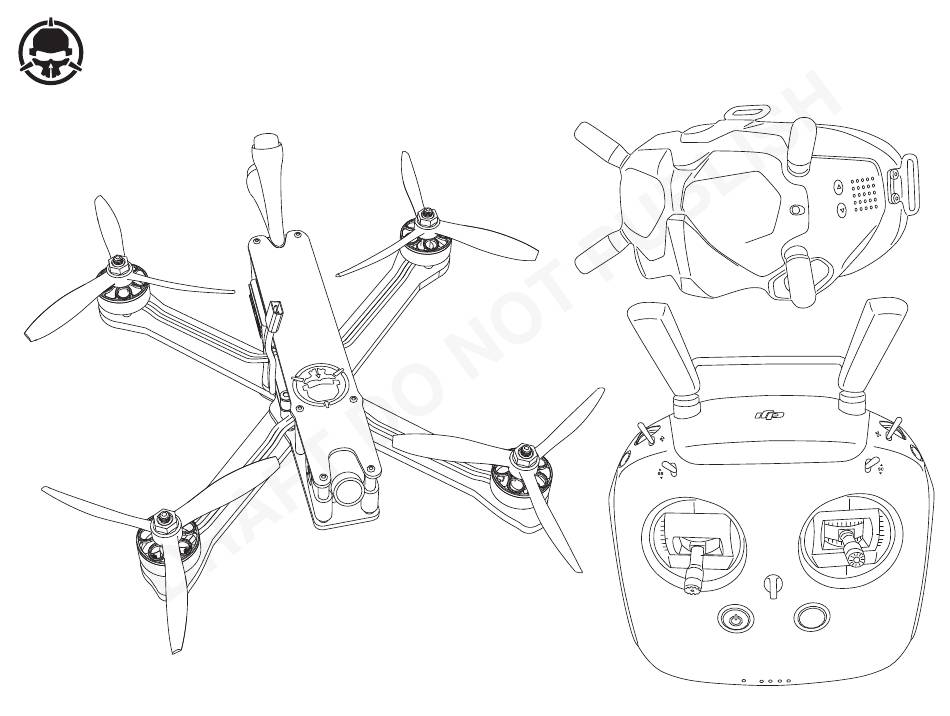

- Page 1 Rotor Riot HD1 RTF Quick Liftoff Guide Version 1.1...
-
Page 2: Table Of Contents
Content Read Me First Controller Map DJI FPV Goggles HD1 RTF Components & Axis Layout Propeller Installation Preflight Checklist Liftoff... -
Page 3: Read Me First
3- In this manual, you will find summarized product information of the three main components that make up the HD1 RTF. For in-depth instructions details for the Remote Control, FPV Goggles, and Air Unit (FPV transmitter device installed on drone), please contact our customer support or visit www.dji.com. -
Page 4: Controller Map
Controller Map Controller information provided is only for HD1 RTF & tunned air unit. Please practice safe operating procedures. Always do an initial arming test with the props uninstalled from the air unit. SD Switch Three (3) positions SA Switch Three (3) positions... -
Page 5: Dji Fpv Goggles
DJI FPV Goggles Antennas Please install them before connecting the battery. Record Button Remeber to insert and format micro sd card before liftoff Channel Display Back Button Use it when navigating the goggles heads up display menu. Channel 5D Button Adjustment Buttons Press down to start the pop up... -
Page 6: Hd1 Rtf Components & Axis Layout
HD1 RTF Components & Axis Layout Z-axis - Yaw movement / rotation on center Z-axis Charge your drone batteries before flying and be mindful of Controllable via Left Stick movement from Left Right your battery voltage even when the air unit is sitting still and plugged the system is draining energy. -
Page 7: Propeller Installation
Before your first liftoff, please practice the arming/disarming procedure with the Propeller Installation drone on the ground and the props completely removed from the drone to get acquainted with all the buttons in the FPV Goggles and Remote Controller. #2 Motor CCW rotation #4 Motor CW rotation Lock-Nut Propellers Identification Number... -
Page 8: Preflight Checklist
You understand and agree that using a drone is a high-risk activity. To the extent permitted by law, you expressly and voluntarily assume the risk of death or other personal injury sustained while participating in such activity. Whether or not caused by the negligence or any other fault of Rotor Riot including but not limited to equipment malfunction from whatever cause, or any other failure of Rotor Riot. -
Page 9: Liftoff
Liftoff Step 1 - Go through the Preflight Checklist found on this document on page X. Step 2 - Verify SA, SB, SC, and SD three-way position switches are in UP position. Left Throttle Stick must be in the down position.
