HD1-SF Build

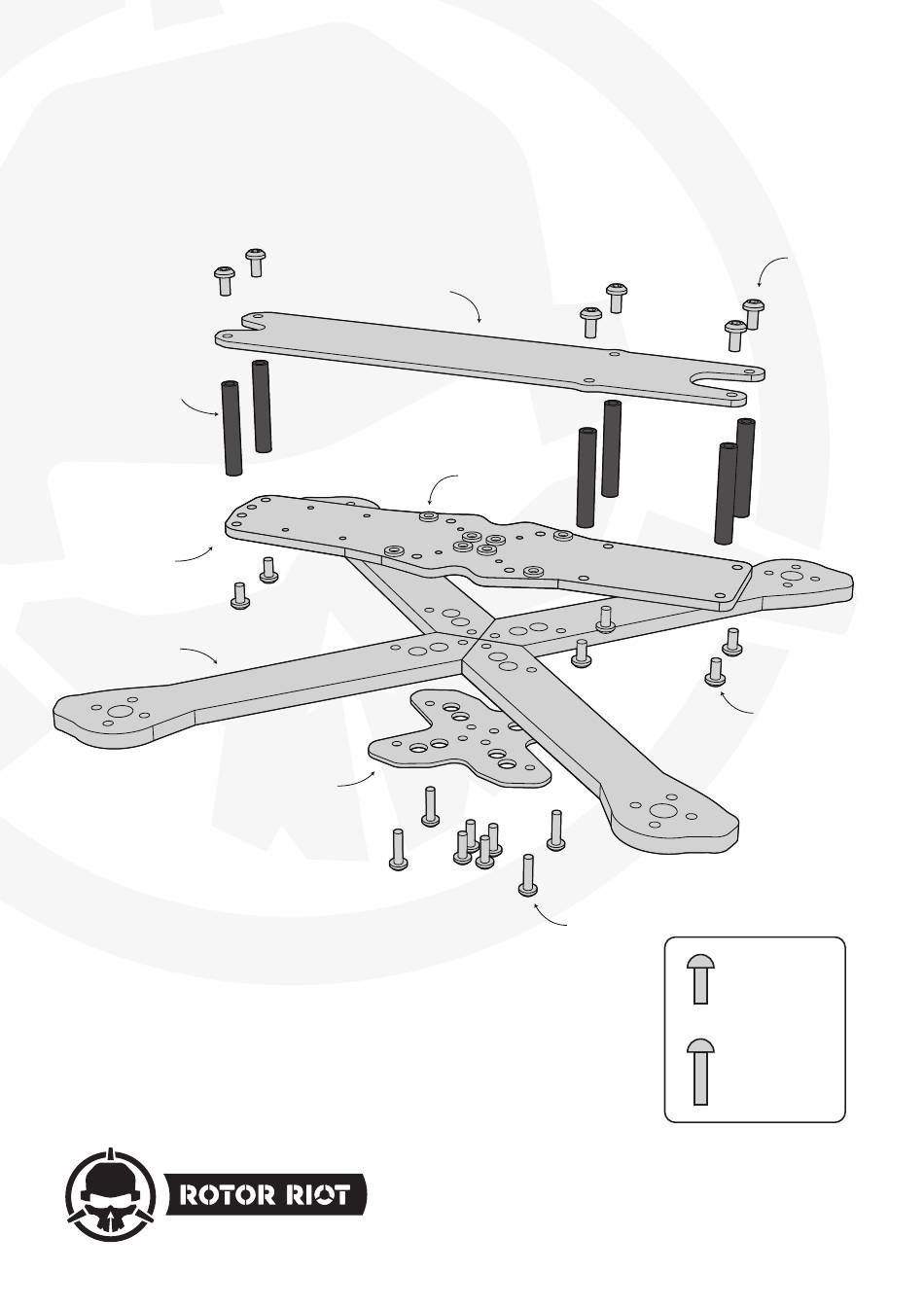

Frame Assembly
Standoffs
BACK
Main Plate
Arms
The arms may vary depending on the model of frame,
however the assembly process is the same.
Make sure the Press Fit Nuts are facing upwards, and not towards the arms.
Tighten screws until snug, and then a little bit more.
Pro tip: Make sure the tip of the hex driver is fully seated in the screw head
before tightening. This will avoid stripping the screw.
Top Plate
X-Brace
Press Fit Nuts
M3x12
M3x8
FRONT
M3x8
M3x8 screw
M3x12 screw
Advertisement
Table of Contents
Related Manuals for Rotor Riot HD1-SF Build
Summary of Contents for Rotor Riot HD1-SF Build
- Page 1 HD1-SF Build Frame Assembly M3x8 Top Plate Standoffs BACK Press Fit Nuts Main Plate FRONT Arms M3x8 X-Brace M3x12 The arms may vary depending on the model of frame, however the assembly process is the same. M3x8 screw Make sure the Press Fit Nuts are facing upwards, and not towards the arms.
- Page 2 HD1-SF Build Motor and ESC Connections FRONT These connectors will only fit one way. Install these yellow gummies for vibration protection. Rotate the ESC so that the power connector is on the right side of the drone. BACK Install each motor and Kwad Skid with 4 screws.
- Page 3 HD1-SF Build Flight Controller Orientation And Connections The triangular arrow on the Flight Controller should face upwards and point to the front of the drone. Use electrical tape to secure the wires and connectors. Make sure you have plastic spacers on the screws, between the FC, ESC, and frame.
- Page 4 HD1-SF Build Air Unit Installation Install the camera using the provided screws and 3D printed parts. The flat side of the 3D printed part goes towards the camera. Connect the Air Unit to the FC using the supplied cable. The wider connector goes into the Air Unit, and the smaller connector goes into the FC.
- Page 5 HD1-SF Build Final Assembly Then add the Battery Pad, velcro straps for the battery, and any HD camera mounts if you need them. Install the Top Plate using 6 screws, making sure not to pinch any wires. Now you just need to set the drone up,...
- Page 6 Standard Rotation Propeller Direction Schematic Propellers Identification Number This number is used to identify the size and pitch of the propeller. You can also use this number as a reference to differentiate rotation between clockwise (CW) and counter-clockwise (CCW) props. Propeller Lock-Nuts Always use lock-nuts and tighten with the proper size socket.
