SeaTalk Network Switch
Installation Guide

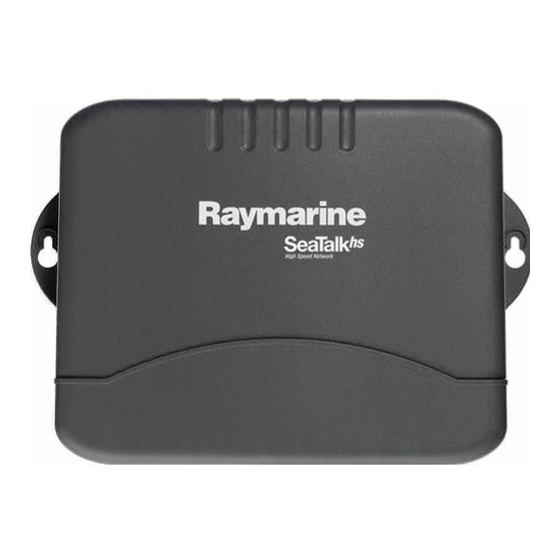

Welcome to the SeaTalk HS Network Switch
What's in the box?....
HS
SeaTalk
Network
Switch
Where can I install the unit?
This guide shows how to install the Raymarine SeaTalk
Network Switch, which enables you to connect up to eight
instruments together using SeaTalk , an ethernet-based network,
for data sharing.
Intended Use
The intended application is for leisure marine boats and
workboats not covered by IMO/SOLAS carriage requirements.
Tie-wraps x (10)
No8 x 3/4 inch
pan-head self-
tapping screw
(x2)
or
55
130
MAX
MIN
-10
14
www.raymarine.com
HS
Tools Required
Power
drill
Philips
screwdriver
10˚ 10˚
HS
3mm
(1/8 in)
Drill
