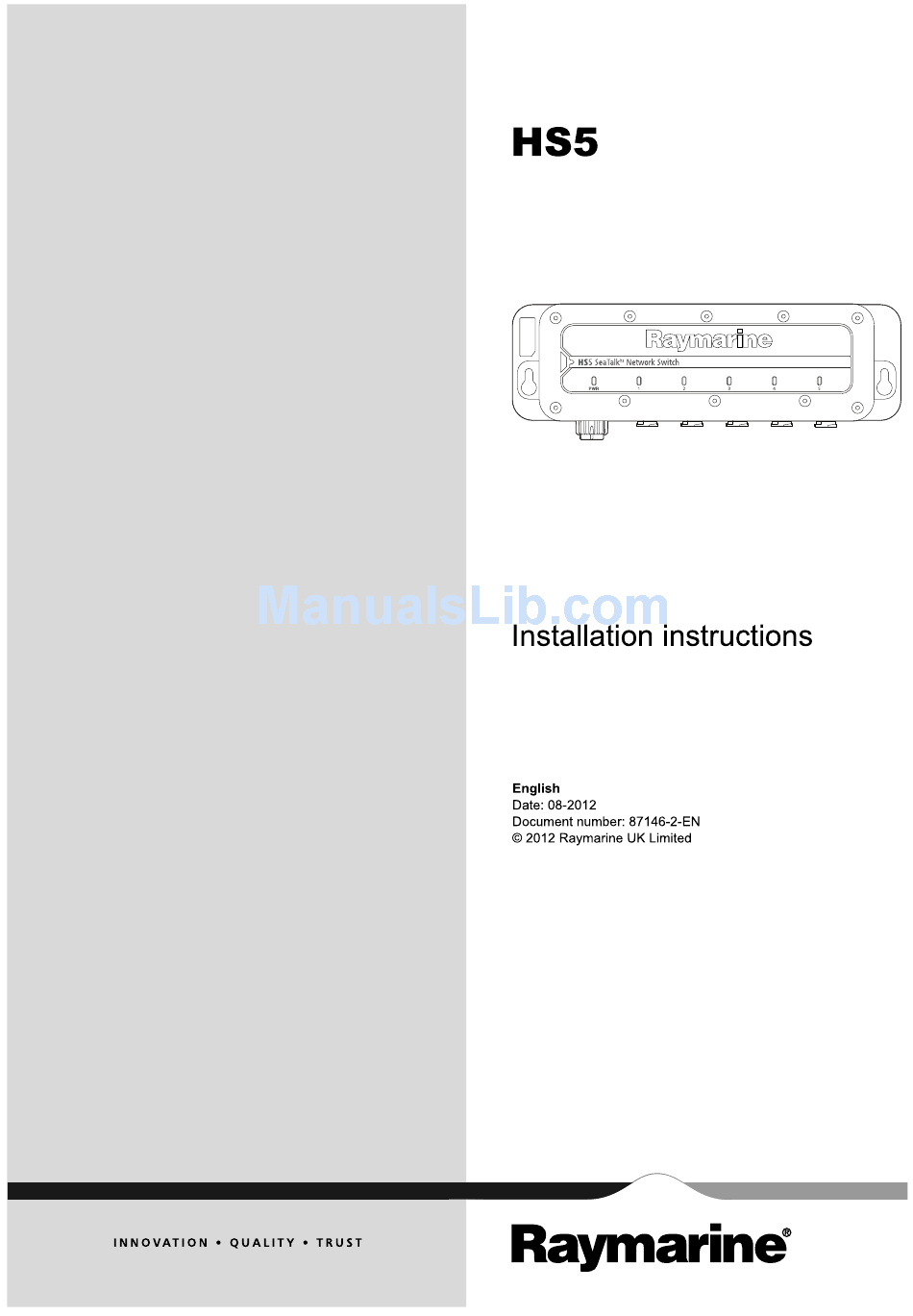

- Page 1 Ins ta lla tion ins tructions Da te : 08-2012 Docume nt numbe r: 87146-2-EN © 2012 Ra yma rine UK Limite d...
- Page 3 Product handbooks The latest versions of all English and translated handbooks are available to download in PDF format from the website www.raymarine.com. Please check the website to ensure you have the latest handbooks.
-
Page 5: Table Of Contents
4.1 Location requirements ..........20 4.2 Mounting the unit ............20 Chapter 5 Troubleshooting and support ....21 5.1 LED locations ............22 5.2 LED indications............23 5.3 Network switch troubleshooting........24 5.4 Raymarine customer support ........25 Appendix A Technical specification ....... 27... -
Page 7: Chapter 1 Introduction
• Digital Sounder Module (DSM). equipment. Whilst the WEEE Directive does not apply to some • Thermal camera. Raymarine products, we support its policy and ask you to be aware of how to dispose of this product. • Additional multifunction display. -
Page 8: Declaration Of Conformity
Connections to other equipment Requirement for ferrites on non-Raymarine cables If your Raymarine equipment is to be connected to other equipment using a cable not supplied by Raymarine, a suppression ferrite MUST always be attached to the cable near the Raymarine unit. -
Page 9: Chapter 2 Planning The Installation
Chapter 2: Planning the installation Chapter contents • 2.1 Installation checklist on page 10 • 2.2 Parts supplied on page 10 • 2.3 SeaTalk on page 11 • 2.4 Typical systems on page 11 • 2.5 Multiple switches on page 12 Planning the installation... -
Page 10: Installation Checklist
2.1 Installation checklist 2.2 Parts supplied Installation includes the following activities: Installation Task Plan your system. Obtain all required equipment and tools. Site all equipment. Route all cables. Drill cable and mounting holes. Make all connections into equipment. Secure all equipment in place. Power on and test the system. -
Page 11: Seatalk Hs
2.4 Typical systems 2.3 SeaTalk Example: Basic system SeaTalk is an ethernet based marine network. This high speed protocol allows compatible equipment to communicate rapidly and share large amounts of data. Information shared using the SeaTalk network includes: • Shared cartography (between compatible displays). •... -
Page 12: Multiple Switches
2.5 Multiple switches Systems with more than 5 SeaTalk devices require more than one network switch. Network switches can be connected together (“daisy-chaining”) for this purpose. The network switch provides a dedicated high-speed (1000 Mbit/S) port for connecting switches together while still retaining full data bandwidth throughout the system. -
Page 13: Chapter 3 Cables And Connections
Chapter 3: Cables and connections Chapter contents • 3.1 General cabling guidance on page 14 • 3.2 Connections overview on page 14 • 3.3 Network hardware on page 15 • 3.4 RayNet connector network cables on page 15 • 3.5 Network cable connector types on page 16 •... -
Page 14: General Cabling Guidance
• Unless otherwise stated use only standard cables of the correct type, supplied by Raymarine. • Ensure that any non-Raymarine cables are of the correct quality and gauge. For example, longer power cable runs may require larger wire gauges to minimize voltage drop along the run. -
Page 15: Network Hardware
Enables direct coupler connection of SeaTalk devices to smaller systems where a switch is not required. Also enables the connection of SeaTalk devices to an HS5 SeaTalk network switch (in conjunction with a RayNet to RJ45 cable). Cables and connections... -
Page 16: Network Cable Connector Types
RayNet connector. Scenario Existing cabling new network switch 1. Existing or new RayNet or none. • RayNet to RayNet installation with cable. Raymarine equipment that has a RayNet connector. 2. Existing installation SeaTalk cables. • Existing SeaTalk with Raymarine cables. -
Page 17: Power Connection
3.7 Power connection Connection scenario 2 — equipment with SeaTalk connector The power for the network switch is provided directly by a 12 V or 24 V power source. The network switch is supplied with a power cable with bare stripped wires, suitable for direct connection to a 12 V or 24 V power supply: D12314-1 1. -
Page 19: Chapter 4 Installation
Chapter 4: Installation Chapter contents • 4.1 Location requirements on page 20 • 4.2 Mounting the unit on page 20 Installation... -
Page 20: Location Requirements
4.1 Location requirements 4.2 Mounting the unit When selecting a location for the unit it is important to consider a Before mounting the unit, ensure that you have: number of factors. • Selected a suitable location with cable clearance below the unit. •... -
Page 21: Chapter 5 Troubleshooting And Support
Chapter 5: Troubleshooting and support Chapter contents • 5.1 LED locations on page 22 • 5.2 LED indications on page 23 • 5.3 Network switch troubleshooting on page 24 • 5.4 Raymarine customer support on page 25 Troubleshooting and support... -
Page 22: Led Locations
5.1 LED locations LEDs indicating the status of the switch are located across the top of the unit. D12327-1 Item Description LED color Power status. (Red) Port status (one LED (Green) corresponding to each port). -
Page 23: Led Indications
5.2 LED indications The LEDs on the unit indicate status information for diagnostic purposes. Power LED LED activity (based on 1000 ms (1 second) cycle) LED state description Unit status description 1000 ms 0 ms No power. 0 ms 1000 ms Unit powered on. -
Page 24: Network Switch Troubleshooting
5.3 Network switch troubleshooting Problems with the network switch and possible causes and solutions are described here. Problem Possible causes Possible solutions No LEDs lit. No power. Check power connection to unit. Red power LED is lit but no port green Faulty or no connection for that port. -
Page 25: Raymarine Customer Support
5.4 Raymarine customer support Raymarine provides a comprehensive customer support service. You can contact customer support through the Raymarine website, telephone and email. If you are unable to resolve a problem, please use any of these facilities to obtain additional help. -
Page 27: Appendix A Technical Specification
Appendix A Technical specification Nominal supply voltage 12 or 24 V dc Operating voltage range 9 to 32 V dc Power consumption (typical) • < 2.5 W • < 600 mA @ 12 V Environmental Installation environment • Operating temperature: -25 ºC to +55 ºC (-13 ºF to 131 ºF) •... - Page 30 www.ra ym a rin e .c o m...
