Model No. PFTL79721-INT.1
Serial No.
Write the serial number in the space
above for reference.
Serial
Number
Decal
MEMBER CARE
UNITED KINGDOM
Website: iconsupport.eu
E-mail: csuk@iconeurope.com
Write:
ICON Health & Fitness, Ltd.
Unit 4, Westgate Court
Silkwood Park
OSSETT
WF5 9TT
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: australiacc@iconfitness.com
Write:
iFIT Inc.
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
USER'S MANUAL
iconeurope.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pro-Form Trainer 10.0 and is the answer not in the manual?

Questions and answers

Ronda
April 24, 2025

My pro-form treadmill trainer 10.0 will not let me do any updates it goes back to say retry again. I have reset turned it on and off and it still is not working. Could you give me some information to fix this?

User image 680a9fca53bc2
0
1 comments:
Mr. Anderson
May 12, 2025

To fix update issues on the Pro-Form Trainer 10.0 treadmill, turn the treadmill off using the power switch, then turn it back on. Once the console turns on, check for firmware updates (see step 5 on page 25). It may take a few minutes for the console to be ready for use.

This answer is automatically generated

0
Ronda
April 24, 2025

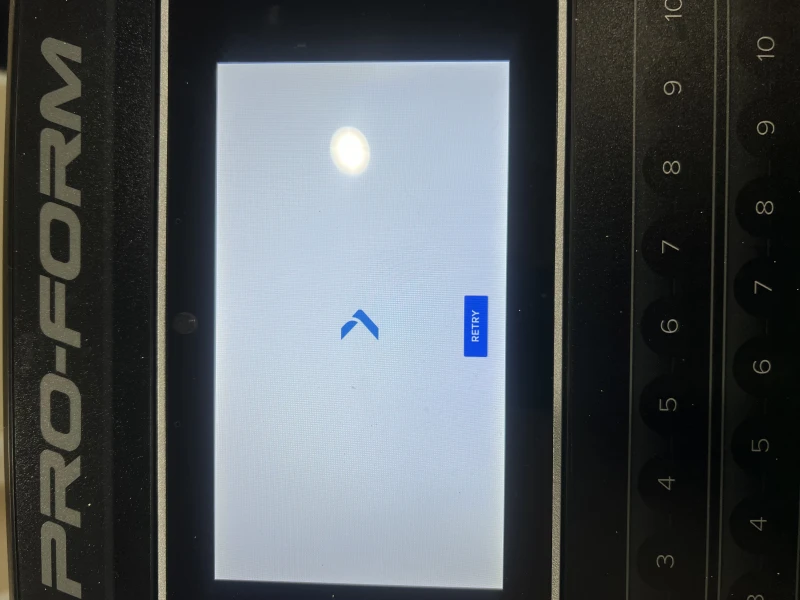

My Pro-Form treadmill Trainer 10.0 will not let me clear space. It just goes back to retry. I have reset unplugged it. Still won’t get past that. What do I do next?
