proform.com
Model No. PFTL13115.3
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
ACTIVATE YOUR
WARRANTY
To register your product and
activate your warranty today,
go to my.proform.com.
CUSTOMER CARE
For service at any time, go to
proformservice.com.
Or call 1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO-FORM PREMIER 1300 and is the answer not in the manual?

Questions and answers

Josh Foreman
April 29, 2025

My proform premier 1300 will not run. The screen doesn’t turn on and no controls work but when i turn the switch off i hear the speaker hum as the power shuts down. I checked all the wire connections and they are good.

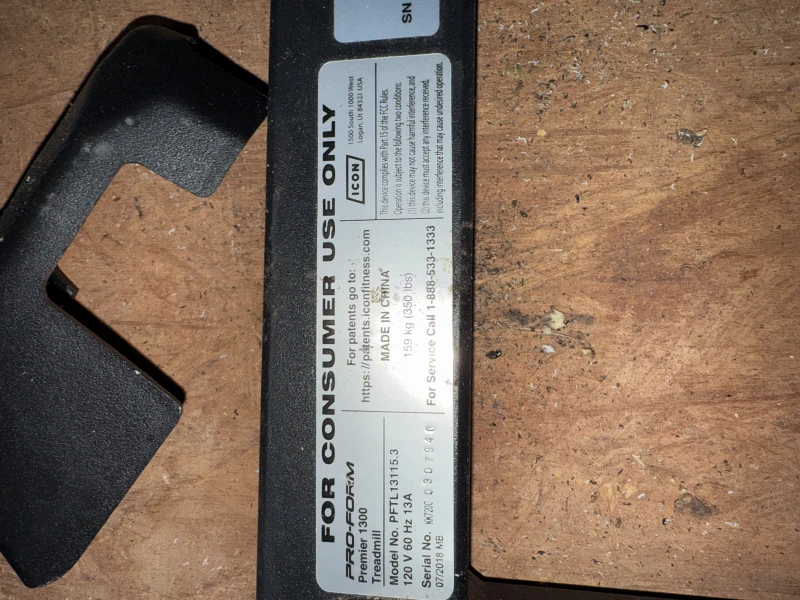

User image 68116216324e3
1 comments:
Mr. Anderson
May 15, 2025

If the PRO-FORM PREMIER 1300 treadmill does not turn on and the controls are unresponsive, the possible issues could be:

1. The power cord is not plugged into a surge suppressor.
2. The surge suppressor is not plugged into a properly grounded outlet.
3. The surge suppressor does not meet the required specifications.
4. The power cord is not plugged in or needs to be unplugged and replugged after five minutes.
5. The power switch has tripped and needs to be reset after five minutes.
6. The key is not inserted into the console or needs to be reinserted.

If the treadmill still does not run after these steps, further assistance is needed.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for ICON Health & Fitness PRO-FORM PREMIER 1300

  • Page 1 proform.com USER’S MANUAL Model No. PFTL13115.3 Serial No. Write the serial number in the space above for reference. Serial Number Decal ACTIVATE YOUR WARRANTY To register your product and activate your warranty today, go to my.proform.com. CUSTOMER CARE For service at any time, go to proformservice.com.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS WARNING DECAL PLACEMENT ............. . .2 IMPORTANT PRECAUTIONS .
  • Page 3: Important Precautions

    IMPORTANT PRECAUTIONS WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read all important precautions and instructions in this manual and all warnings on your treadmill before using your treadmill. ICON assumes no responsibility for personal injury or property damage sus- tained by or through the use of this product.
  • Page 4 19. Always stand on the foot rails when starting TREADMILL on page 28.) You must be able or stopping the walking belt. Always hold the to safely lift 45 lbs. (20 kg) to raise, lower, or handrails while using the treadmill. move the treadmill.
  • Page 5 STANDARD SERVICE PLANS...
  • Page 6: Before You Begin

    BEFORE YOU BEGIN Thank you for selecting the revolutionary reading this manual, please see the front cover of this PROFORM PREMIER 1300 treadmill. The PREMIER manual. To help us assist you, please note the product ® 1300 treadmill offers an impressive selection of fea- model number and serial number before contacting us.
  • Page 7: Part Identification Chart

    PART IDENTIFICATION CHART Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw- ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity used for assembly.
  • Page 8: Assembly

    ASSEMBLY • To hire an authorized service technician to • Left parts are marked “L” or “Left” and right parts assemble the treadmill, call 1-800-445-2480 are marked “R” or “Right.” • Assembly requires two persons. • To identify small parts, see page 7. •...
  • Page 9 2. Make sure that the power cord is unplugged. Remove the tie securing the Upright Wire (81) to the front of the Base (94). Next, identify the Right Upright (90). Have a second person hold the Right Upright near the Base (94).
  • Page 10 4. Hold the Right Upright (90) against the Base (94). Make sure not to pinch the Upright Wire (81). Attach the Right Upright (90) and a Wheel (97) with two 3/8" x 2 1/4" Screws (7), a 3/8" x 1 1/4" Screw (63), a 3/8"...
  • Page 11 6. Identify the Left Handrail (86). Attach the Left Handrail (86) to the Left Upright (89) with two 5/16" x 2 1/2" Screws (28) and two 5/16" Star Washers (11); fully tighten the Screws. Next, insert the Upright Wire (81) through the hole in the bottom of the Right Handrail (87) as shown.
  • Page 12 8. Note: If the treadmill is assembled on a smooth surface, it may roll forward during this step. Raise the Frame (56) to the upright position. IMPORTANT: Do not raise the Frame past the vertical position. Have a second person hold the Frame until step 10 is completed.
  • Page 13 10. Remove the 5/16" Nut (12) and the 5/16" x 2 1/4" Bolt (3) from the bracket on the Latch Crossbar (38). Align the upper end of the Storage Latch (53) with the bracket on the Latch Crossbar (38), and insert the 5/16" x 2 1/4" Bolt (3) through the bracket and the Storage Latch.
  • Page 14 12. IMPORTANT: To avoid damage, do not use power tools and do not overtighten the #10 x 3/4" Screws (9). Attach the console assembly (J) to the Left and Right Handrails (86, 87) with four #10 x 3/4" Screws (9) and four #10 Star Washers (5); start all four Screws, and then tighten them.
  • Page 15 14. Attach the Left Handrail Cover (79) and the Right Handrail Cover (92) to the Left and Right Handrails (86, 87) with six #8 x 1/2" Screws (1); do not overtighten the Screws. 15. Slide the Left Bottom Handrail Cover (85) up against the Left Handrail Cover (79), and attach the Left Bottom Handrail Cover with two #8 x 1/2"...
  • Page 16 16. Firmly tighten the four 3/8" x 2 1/4" Screws (7) and the two 3/8" x 1 1/4" Screws (63). Next, tighten the two 3/8" x 1 3/4" Screws (62); the Wheels (97) must turn freely. Next, set the Left Inner Base Cover (107) onto the lower end of the Left Upright (89).
  • Page 17: How To Use The Treadmill

    HOW TO USE THE TREADMILL HOW TO CONNECT THE POWER CORD more amps. To avoid overloading the circuit, do not plug other electrical devices, except for low- Use a Surge Suppressor power devices such as cell phone chargers, into the surge suppressor or into an outlet on the same Your treadmill, like other electronic equipment, can be circuit.
  • Page 18 CONSOLE DIAGRAM FEATURES OF THE CONSOLE In addition, the console features a selection of onboard workouts. Each workout automatically controls the The advanced treadmill console offers a selection of speed and incline of the treadmill as it guides you features designed to make your workouts more effec- through an effective exercise session.
  • Page 19 HOW TO TURN ON THE POWER HOW TO USE THE TOUCH SCREEN IMPORTANT: If the treadmill has been exposed to The console features a tablet with a full-color touch cold temperatures, allow it to warm to room tem- screen. The following information will help you become perature before you turn on the power.
  • Page 20 HOW TO SET UP THE CONSOLE 5. Check for firmware updates. Before using the treadmill for the first time, set up the First, touch the profile button in the lower-right cor- console. ner to select the settings main menu. Next, select the maintenance section.
  • Page 21 HOW TO USE THE MANUAL MODE 4. Change the incline of the treadmill as desired. 1. Insert the key into the console. To change the incline of the treadmill, press the incline increase and decrease buttons or one of the See HOW TO TURN ON THE POWER on page Quick Incline buttons.
  • Page 22 7. Turn on the fan if desired. • Your pace • The speed of the walking belt The fan features several speed settings. Press the • The average speed of the walking belt fan buttons repeatedly to select a fan speed or to turn •...
  • Page 23 3. Select a map workout. HOW TO USE A DRAW YOUR OWN MAP WORKOUT To select a map workout, touch the desired button 1. Insert the key into the console. on the screen. Note: The featured map workouts on your console will change periodically. If you wish to save a workout for future use, you can add it as See HOW TO TURN ON THE POWER on a favorite by touching the heart button in the upper-...
  • Page 24 7. Measure your heart rate if desired. 4. Log in to your iFit account. See step 6 on page 22. If you have not already done so, touch the Login button to log in to your iFit account. The screen 8.
  • Page 25 HOW TO USE THE WORKOUT SETTINGS SECTION 4. View machine information. 1. Select the settings main menu. Touch the Machine Info button to view information about your treadmill. After you view the information, Insert the key into the console (see HOW TO touch the back button on the screen.
  • Page 26 4. Calibrate the incline system of the treadmill. Note: You must have your own wireless network and an 802.11b/g/n router with SSID broadcast Touch the Calibrate Incline button. Then, touch the enabled (hidden networks are not supported). Begin button to calibrate the incline system. The treadmill will automatically rise to the maximum When a list of networks appears, touch the desired incline level, lower to the minimum incline level,...
  • Page 27 HOW TO USE THE SOUND SYSTEM HOW TO USE THE TABLET HOLDER To play music or audio books through the console IMPORTANT: The tablet holder is designed for use with most full-size tablets. Do not place any other sound system while you exercise, plug a 3.5 mm male electronic device or object in the tablet holder.
  • Page 28: How To Fold And Move The Treadmill

    HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL HOW TO MOVE THE TREADMILL To avoid damaging the treadmill, adjust the incline Before moving the treadmill, fold it as described at the to zero before you fold the treadmill. Then, remove left.
  • Page 29: Maintenance And Troubleshooting

    MAINTENANCE AND TROUBLESHOOTING MAINTENANCE c. Check the power switch located on the treadmill frame near the power cord. If the switch protrudes Regular maintenance is important for optimal perfor- as shown, the switch has tripped. To reset the mance and to reduce wear. Inspect and properly tighten power switch, wait for five minutes and then press all parts each time the treadmill is used.
  • Page 30 SYMPTOM: The walking belt slows when walked on SYMPTOM: The walking belt is off-center or slips when walked on a. Use only a surge suppressor that meets all of the a. If the walking belt is off-center, first remove the specifications described on page 17.
  • Page 31 SYMPTOM: The tablet holder does not stay in place a. Rotate the tablet holder backwards. Then, tighten the indicated screw slightly until the tablet holder stays in place when it is rotated to the desired position. Tablet Screw Holder...
  • Page 32: Exercise Guidelines

    EXERCISE GUIDELINES Burning Fat—To burn fat effectively, you must exer- WARNING: cise at a low intensity level for a sustained period of Before beginning this time. During the first few minutes of exercise, your or any exercise program, consult your physi- body uses carbohydrate calories for energy.
  • Page 33 SUGGESTED STRETCHES The correct form for several basic stretches is shown at the right. Move slowly as you stretch —never bounce. 1. Toe Touch Stretch Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible.
  • Page 34: Part List

    PART LIST Model No. PFTL13115.3 R1117A Key No. Qty. Description Key No. Qty. Description #8 x 1/2" Screw 3/8" Plastic Bushing #8 x 3/4" Screw 3/8" Washer 5/16" x 2 1/4" Bolt Storage Latch 5/16" x 1/2" Screw Drive Motor #10 Star Washer Motor Belt 5/16"...
  • Page 35 Key No. Qty. Description Key No. Qty. Description Roller Spacer Left Inner Base Cover 1/4" x 1 1/4" Screw 1/4" Nut Power Cord Grommet M5 Washer – User’s Manual Tablet Holder Note: Specifications are subject to change without notice. For information about ordering replacement parts, see the back cover of this manual.
  • Page 36: Exploded Drawing

    EXPLODED DRAWING A Model No. PFTL13115.3 R1117A...
  • Page 37 EXPLODED DRAWING B Model No. PFTL13115.3 R1117A...
  • Page 38 EXPLODED DRAWING C Model No. PFTL13115.3 R1117A...
  • Page 39 EXPLODED DRAWING D Model No. PFTL13115.3 R1117A...
  • Page 40: Ordering Replacement Parts

    ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) •...
