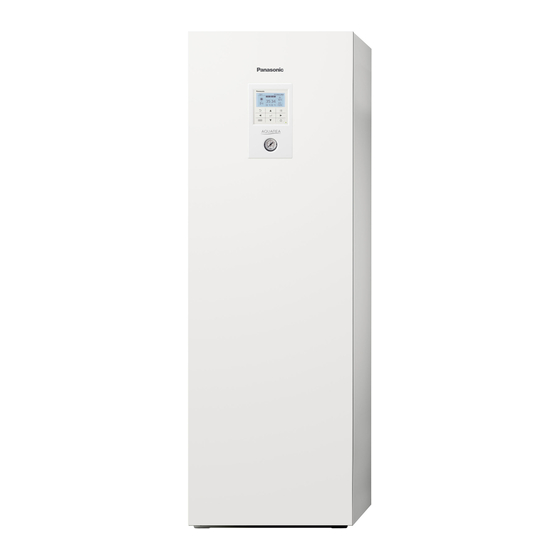

Panasonic WH-ADC0309J3E5B Operating Instructions Manual
Air-to-water hydromodule + tank
Hide thumbs
Also See for WH-ADC0309J3E5B:
- Planning and installation manual (224 pages) ,
- Quick manual (100 pages)
Table of Contents
Advertisement
Quick Links
Operating Instructions
Air-to-Water Hydromodule + Tank
Model No.
Indoor Unit
WH-ADC0309J3E5B
Outdoor Unit
WH-UD03JE5
WH-UD05JE5
WH-UD07JE5
WH-UD09JE5
Manufactured by:
Panasonic AVC Networks Czech, s.r.o.
U Panasoniku 1, 320 84 Plzeň , Czech Republic
Operating Instructions
Air-to-Water Hydromodule + Tank
Thank you for purchasing Panasonic product.
Before operating the system, please read these operating instructions
thoroughly and keep them for future reference.
Installation Instructions attached.
Serial number and production year please refer to name plate.
ACXF55-22201
Advertisement
Table of Contents
Related Manuals for Panasonic WH-ADC0309J3E5B
Summary of Contents for Panasonic WH-ADC0309J3E5B
- Page 1 WH-UD07JE5 WH-UD09JE5 Operating Instructions Air-to-Water Hydromodule + Tank Thank you for purchasing Panasonic product. Before operating the system, please read these operating instructions thoroughly and keep them for future reference. Installation Instructions attached. Serial number and production year please refer to name plate.
-
Page 2: Table Of Contents
Table of contents Safety precautions ............4-16 For installer Remote Controller buttons and display .....17-19 5 Installer setup > System setup ......24-26 5.1 Optional PCB connectivity Initialization ..............19 5.2 Zone & Sensor Quick Menu ..............20 5.3 Heater capacity Menus ................20-31 5.4 Anti freezing 5.5 DHW capacity 5.6 Base pan heater For user... - Page 3 Before use, make sure the system has been installed correctly by an authorised dealer according to the given instructions. Panasonic Air-to-Water is a split system, consisting of two units: indoor and outdoor units. The indoor unit consist of the •...
-
Page 4: Safety Precautions
Safety precautions To prevent personal injury, injury to others or property damage, please comply with the WARNING following: Incorrect operation due to failure to follow instructions below may cause harm or Indoor unit and outdoor unit damage, the seriousness of which is classified This appliance can be used by as below: children aged from 8 years and above... - Page 5 Do not insert your fingers or It is strongly recommended that Install other objects into the Air to Residual Current Device (RCD) water indoor or outdoor unit, on-site to prevent electric shock and/ rotating parts may cause injury. or fire. Before obtaining access to Do not touch the outdoor unit during terminals, all supply circuits must be...
- Page 6 Safety precautions Remote Controller CAUTION Do not wet the Remote Controller. Failure to do so may result in electric Indoor unit and outdoor unit shock and/or fire. Do not wash the indoor unit with Do not press the buttons on the water, benzine, thinner or scouring Remote Controller using hard and powder to avoid damage or corrosion...
- Page 7 Precaution for using R32 WARNING refrigerant The basic installation work procedures are This appliance is filled with R32 the same as conventional refrigerant (R410A, (mild flammable refrigerant). R22) models. If the refrigerant is leaked and Since the working pressure is exposed to an external ignition higher than that of refrigerant R22 source, there is a risk of fire.
- Page 8 Safety precautions • Any part of refrigerating circuit c) Able to understand and to apply in (evaporators, air coolers, AHU, practice the requirements in the condensers or liquid receivers) or national legislation, regulations piping should not be located in the and Standards;...
- Page 9 1. Installation (Space) 2. Servicing • Product with flammable refrigerants, 2-1. Service personnel shall be installed according to the • The system is inspected, regularly minimum room area, Amin (m²) supervised and maintained by mentioned in Table I of the a trained and certified service Installation Instructions.
- Page 10 Safety precautions 2-2. Work 2-3. Checking for presence of • Prior to beginning work on systems refrigerant containing flammable refrigerants, • The area shall be checked with an safety checks are necessary to appropriate refrigerant detector prior ensure that the risk of ignition to and during work, to ensure the is minimised.
- Page 11 2-5. No ignition sources 2-7. Checks to the refrigerating • No person carrying out work in equipment relation to a refrigerating system • Where electrical components are which involves exposing any pipe being changed, they shall be fit work that contains or has contained for the purpose and to the correct flammable refrigerant shall use any specification.
- Page 12 Safety precautions 2-8. Checks to electrical devices 3. Repairs to sealed components • Repair and maintenance to electrical • During repairs to sealed components shall include initial components, all electrical supplies safety checks and component shall be disconnected from the inspection procedures.
- Page 13 4. Repair to intrinsically safe 7. The following leak detection components methods are deemed acceptable • Do not apply any permanent for all refrigerant systems inductive or capacitance loads to • No leaks shall be detected when the circuit without ensuring that using detection equipment with a this will not exceed the permissible sensitivity of 5 grams per year of...
- Page 14 Safety precautions 8. Removal and evacuation 9. Charging procedures • When breaking into the refrigerant • In addition to conventional circuit to make repairs – or for charging procedures, the following any other purpose – conventional requirements shall be followed. procedures shall be used.
- Page 15 10. Decommissioning h) Do not over fi ll cylinders. (No • Before carrying out this procedure, more than 80 % volume liquid it is essential that the technician charge). is completely familiar with the i) Do not exceed the maximum equipment and all its details.
- Page 16 Safety precautions 12. Recovery • The recovered refrigerant shall be • When removing refrigerant from returned to the refrigerant supplier a system, either for servicing or in the correct recovery cylinder, and decommissioning, it is recommended the relevant Waste Transfer Note good practice that all refrigerants are arranged.
-
Page 17: Remote Controller Buttons And Display
Remote Controller buttons and display Buttons / Indicator Quick Menu button (For more details, refer to the separate Quick Menu Guide.) Back button Returns to the previous screen LCD Display Main Menu button For function setup ON/OFF button Starts/Stops operation Operation indicator Illuminates during operation, blinks during alarm. - Page 18 Remote Controller buttons and display Display Mode selection AUTO • Depending on the preset outdoor COOL • COOL operation is either turned temperature, the system selects ON or OFF. HEAT or * COOL operation • The outdoor unit provides cooling mode.
-
Page 19: Initialization
Temperature of each zone Time and day Water Tank temperature Outdoor temperature Sensor type/Set temperature type icons Water Temperature Water Temperature Pool only →Compensation curve →Direct Room Thermostat Room Thermostat Room Thermistor →External →Internal Initialization Before starting to install the various menu settings, please initiate the Remote Controller by selecting the language of operation and installing the date and time correctly. -
Page 20: Quick Menu
Quick Menu After the initial settings have been completed, you can select a quick menu from the following options and edit the setting. 1 Press to display the quick menu. Force DHW Powerful Quiet Force Heater Weekly Timer Force Defrost Error Reset R/C Lock 2 Use... -
Page 21: Holiday Timer
Menus For user Menu Default Setting Setting Options / Display Holiday timer To save energy, a holiday period may be set to either turn OFF the system or lower the temperature during the period. Holiday start and end. Date and time OFF or lowered temperature •... -
Page 22: System Check
Menus For user Menu Default Setting Setting Options / Display 2 System check Energy monitor Present Present or historical chart of Select and retrieve energy consumption, generation or COP. Historical chart Select and retrieve • COP= Coefficient of Performance. • For historical chart, the period is selected from 1 day/1 week/1year. •... -
Page 23: Backlight
Menu Default Setting Setting Options / Display Backlight Sets the duration of screen backlight. 1 min Backlight intensity Sets screen backlight brightness. Clock format Sets the type of clock display. Date & Time Sets the present date and time. Year / Month / Day / Hour / Min Language ENGLISH / FRANÇAIS / DEUTSCH / Sets the display language for... -
Page 24: For Installer
Menus For installer Menu Default Setting Setting Options / Display 5 Installer setup System setup Optional PCB connectivity To connect to the external PCB required for servicing. • The external PCB is connected, the system will have following additional functions: Control over 2 zones (including the swimming pool and the function to heat water in it). -
Page 25: Base Pan Heater
Menu Default Setting Setting Options / Display Base pan heater To select whether or not optional base pan heater is connected. * Type A - The base pan heater activates only during deice operation. Set base pan heater * Type B - The base pan heater type*. -
Page 26: Force Heater
Menus For installer Menu Default Setting Setting Options / Display 5.15 Force heater To turn on Force heater either manually (by default) or automatically. Manual Force defrost 5.16 If auto selection is set, outdoor unit will start defrost operation Manual if long heating hour operate during low outdoor temperature. - Page 27 Menu Default Setting Setting Options / Display Water temp. for heating ON Compensation curve Input the 4 temperature points X axis: -5 °C, 15 °C (2 on horizontal X Y axis: 55 °C, 35 °C axis, 2 on vertical Y axis).
-
Page 28: Cool
Menus For installer Menu Default Setting Setting Options / Display Heater ON/OFF Delay time for heater ON Delay time for heater 0:30 min to turn on Heater ON/OFF Water temperature for heater ON Setting of water temperature to turn -4 °C on from water set temperature. -
Page 29: Auto
Menu Default Setting Setting Options / Display Water temp. for cooling ON Direct Set temperature for 10 °C Cooling ON • If 2 zone system is selected, temperature set point must input for Zone 2. • “Zone 1” and “Zone 2” will not appear on the display if only 1 zone system. T for cooling ON Set T for cooling ON * This setting will not... -
Page 30: Installer Setup Service Setup
Menus For installer Menu Default Setting Setting Options / Display Tank heat up time (max) Maximum time for 1:00 heating the tank (in hours and minutes) Tank re-heat temp. Set temperature to -8 °C perform reboil of tank water. Sterilization Sterilization may be set for 1 or more days of the week. -
Page 31: Pump Down
Menu Default Setting Setting Options / Display Pump down Pump down operation To set the pump down operation. Dry concrete Edit to set the temperature of dry concrete. To dry the concrete (floor, walls, etc.) during construction. ON / Edit Do not use this menu for any other purposes and in period other than during construction... -
Page 32: Cleaning Instructions
Cleaning instructions To ensure optimal performance of the system, cleaning has to be carried out at regular intervals. Consult an authorised dealer. • Disconnect the power supply before cleaning. • Do not use benzine, thinner or scouring powder. • Use only soap ( pH7) or neutral household detergent. -
Page 33: Troubleshooting
Troubleshooting The following symptoms do not indicate malfunction. Symptom Cause Water flowing sound during operation. • Refrigerant flow inside the unit. Operation is delayed a few minutes • The delay is a protection for the compressor. after restarting. Outdoor unit emits water/steam. •... - Page 34 Troubleshooting Below is a list of error codes that may appear on the display when there is some trouble with the system setting or operation. When the display shows an error code as indicated below, contact the number registered in the Remote Controller or a nearest authorised installer.
-
Page 35: Information
• Do not use other remote control, communication and operation device not specified by an authorised dealer or specialist. • Use under the agreement of “Terms of Service” and “Handling of Personal Information” of Panasonic Smart Application. • For extended non-use of Panasonic Smart Application, disconnect the network adaptor from the device. - Page 36 Information This symbol shows that this This symbol shows that the equipment uses a flammable Operation Instructions should refrigerant. If the refrigerant be read carefully. is leaked, together with an WARNING external ignition source, there is a possibility of ignition. This symbol shows that a This symbol shows that service personnel should be...
- Page 37 Memo...
- Page 38 Memo...
- Page 39 Memo...
- Page 40 +44 (0) 1344 853 393 Germany 0800 - 2002223 Panasonic Corporation Authorised representative in EU Panasonic Testing Centre Website: http://www.panasonic.com Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, Germany © Panasonic Corporation 2019 ACXF55-22201 Printed in the Czech Republic SS0319-1...
