Green Link LED (Top Right)
This LED indicates that a valid link has been established between your device and another 10/100 Ethernet device. If
this LED does not light up, there is either an invalid connection with the wire or the Ethernet port may be dysfunctional,
contact Intrepid support if needed.
4.3.2 USB 2.0 Interface
This USB port serves as the connection to a host computer for configuration, data transfer, and power. The RAD-
wBMS has an isolated USB 2.0 (240Mb/s) interface. This port is used to connect the RAD-wBMS to a computer for
configuration and monitoring.
4.3.3 Micro DB-9 Connector
This port allows the RAD-wBMS to transmit and receive messages on two CAN/CAN-FD channels. The pinout is
listed below and can also be found on the back of the RAD-wBMS.

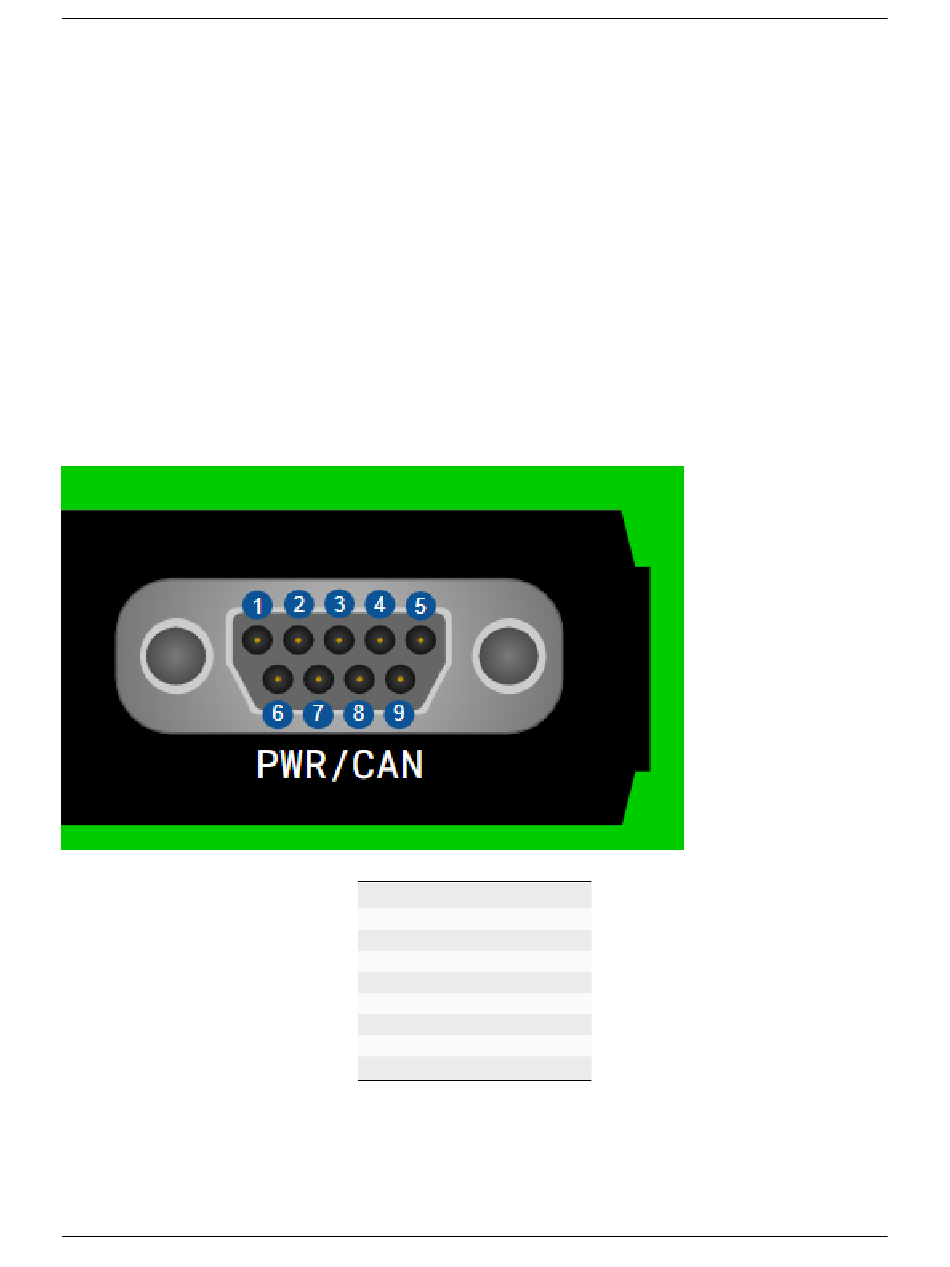

RAD-wBMS Micro DB-9 Pinout:
4.3. Right Side Interfaces and Connectors
1 No Connection (NC)
2 DW CAN 01L
3 Do Not Connect (DNC)
4 DW CAN 02 L
5 CHASSIS GND
6 Ground (GND)
7 DW CAN 01 H
8 DW CAN 02 H
9 Vehicle Battery (VBATT)
