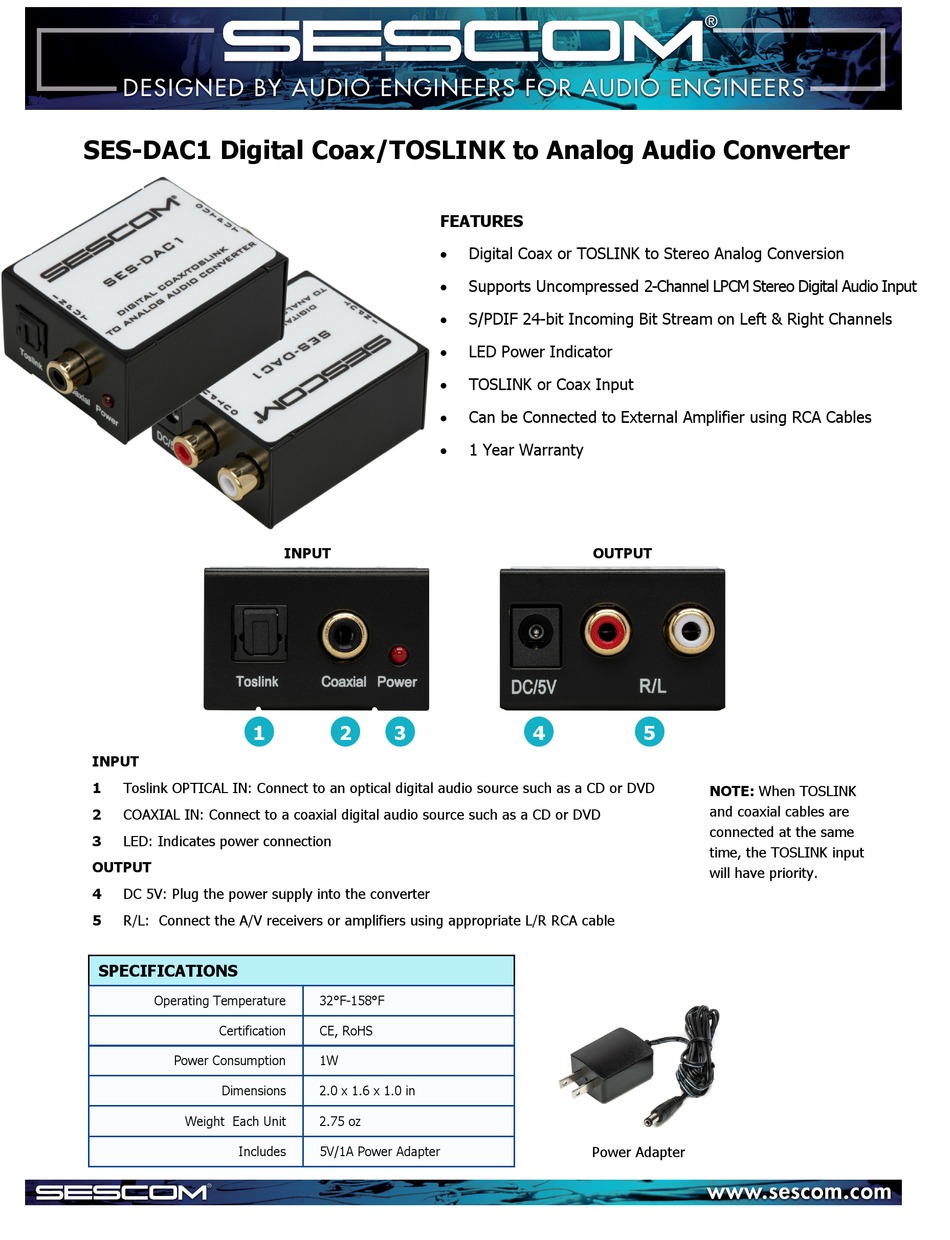

sescom SES-DAC1 Quick Start Manual

SES-DAC1 Digital Coax/TOSLINK to Analog Audio Converter
1

INPUT

1 Toslink OPTICAL IN: Connect to an optical digital audio source such as a CD or DVD
2 COAXIAL IN: Connect to a coaxial digital audio source such as a CD or DVD
3 LED: Indicates power connection

OUTPUT

4 DC 5V: Plug the power supply into the converter
5 R/L: Connect the A/V receivers or amplifiers using appropriate L/R RCA cable

SPECIFICATIONS

Operating Temperature
Certification
Power Consumption
Dimensions
Weight Each Unit
Includes

FEATURES








INPUT
2 3
32°F-158°F
CE, RoHS
1W
2.0 x 1.6 x 1.0 in
2.75 oz
5V/1A Power Adapter
Digital Coax or TOSLINK to Stereo Analog Conversion
Supports Uncompressed 2-Channel LPCM Stereo Digital Audio Input
S/PDIF 24-bit Incoming Bit Stream on Left & Right Channels
LED Power Indicator
TOSLINK or Coax Input
Can be Connected to External Amplifier using RCA Cables
1 Year Warranty
OUTPUT
4 5
Power Adapter
U S E R
GUIDE
NOTE: When TOSLINK
and coaxial cables are
connected at the same
time, the TOSLINK input
will have priority.
