Summary of Contents for sescom SES-AUDIO-N-HDMI

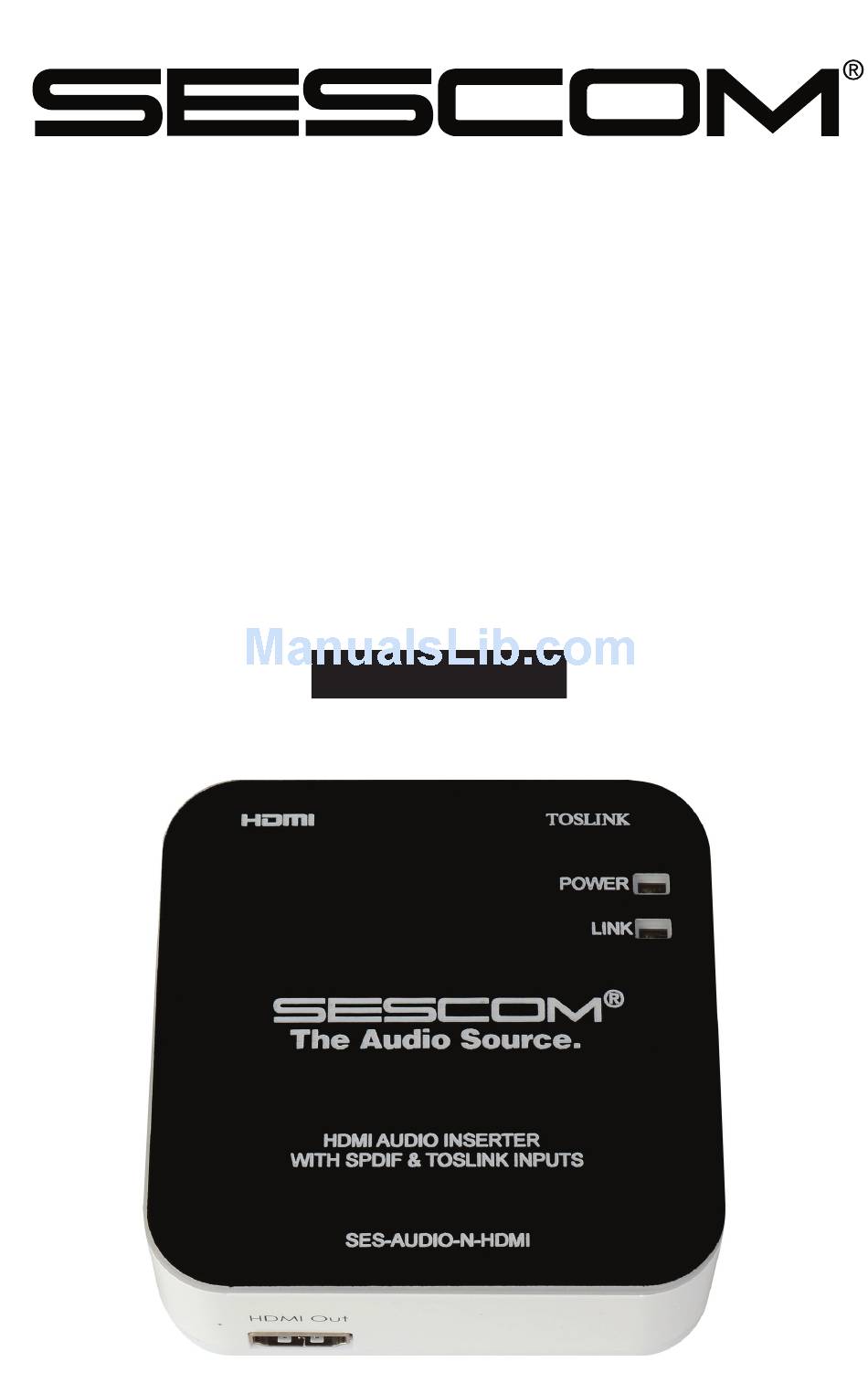

- Page 1 SES-AUDIO-N-HDMI HDMI Audio Inserter Operation Manual...
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS 1. To prevent fire or shock hazard, do not expose this equipment to an environment of high humidity and/or dust. Do not use in an unprotected outdoor installation or any area classified as overly damp or wet. 2. The temperature for installation should be kept between 0°C ~ 60°C. Avoid direct sun- light exposure or extreme changes of temperature over a short period of time. -
Page 5: Table Of Contents
CONTENTS 1. Introduction 2. Applications 3. Package Contents 4. System Requirements 5. Features 6. Operation Controls and Functions 2 6.1 Top Panel 6.2 Right Panel 6.3 Left Panel 6.4 Front Panel 6.5 Rear Panel 7. Connection Diagram 8. Specifications 9. Acronyms... -
Page 6: Introduction
1. INTRODUCTION The HDMI Audio Inserter lets you insert an external audio signal into your HDMI or DVI signal path. The unit allows you to insert stereo and multi-channel surround sound signals to give users the capability to select audio formats while extending your HDMI signal. -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Top Panel Power Link HDMI Audio Inserter Power LED: The LED will illuminate in blue when the unit is connected to the power supply and switched on. Link LED: The LED will illuminate in green when both the source and the display are connected and have established a link. -
Page 8: Left Panel
6.3 Left Panel DC 5V DC 5V: Connect the 5V DC power supply into the unit and plug the adaptor to an AC wall outlet. 6.4 Front Panel INPUT Optical HDMI R/L Input: Connect to the audio source equipment such as a PC/ Laptop or an Hi-Fi equipment with RCA cables. -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM DVD Player Digital Audio PC/Laptop Input (Optical) Blu-ray Player Analog Stereo Input HDMI Input HDMI InputOptical HDMI Audio Inserter HDMI Out HDMI Output AV Receiver HDMI Output HDTV or Monitor... -
Page 10: Specifications
8. SPECIFICATIONS Input Ports 1xHDMI, 1xOptical (Digital Audio), 1xL/R (Analog Audio) HDMI Audio Sampling Rate Up to 192 kHz Optical Audio Sampling Rate Up to 48 kHz Output Port 1xHDMI HDMI Cable I/O Distance 10 meter, 1080p@12-bit 15 meter, 1080p@8-bit HDMI Audio Format LPCM 2/5.1/7.1, Dolby 5.1, DTS 5.1, Dolby Digital+, Dolby TrueHD &... -
Page 11: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Digital Visual Interface HDCP High-bandwidth Digital content protection HDMI High Definition Multimedia Interface...
