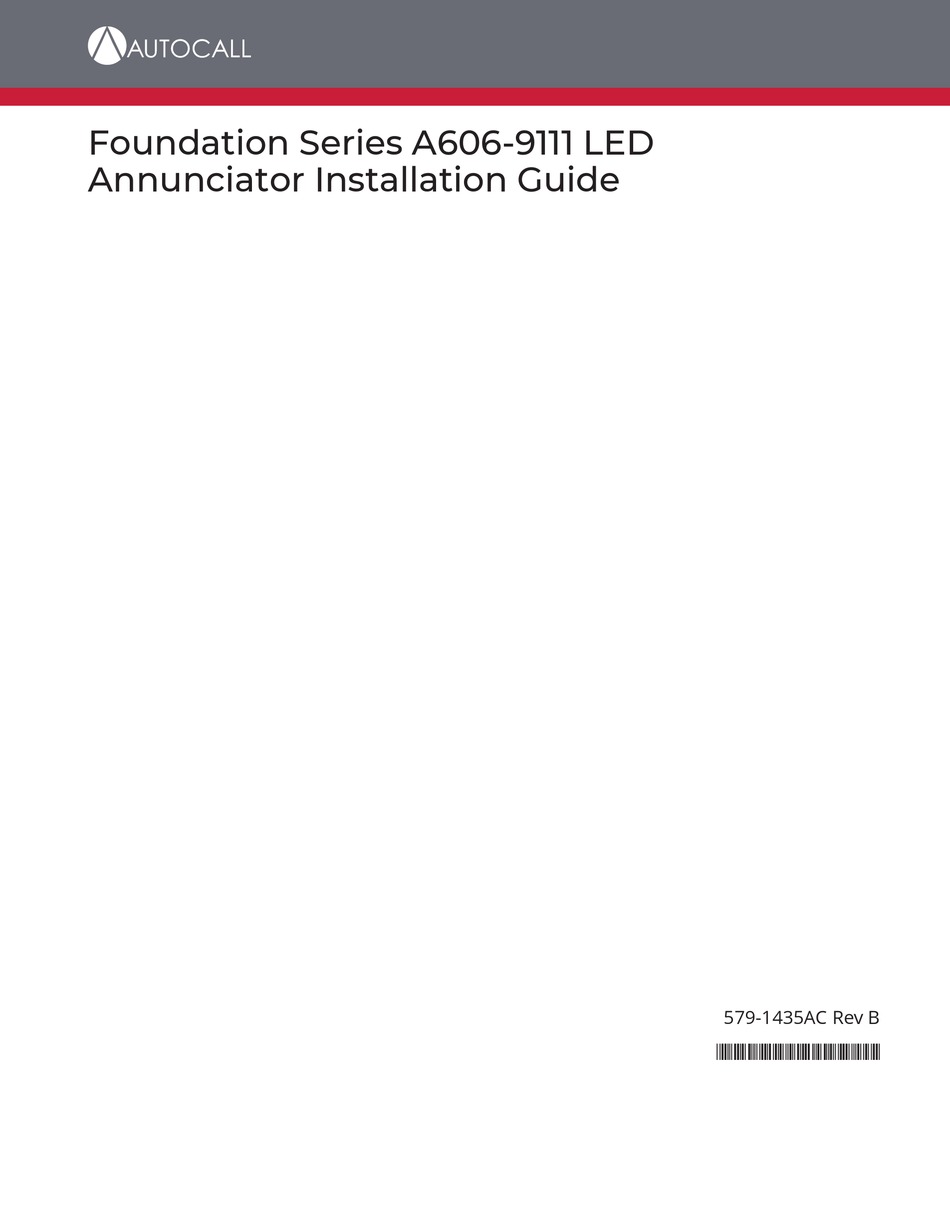

- Page 1 Foundation Series A606-9111 LED Annunciator Installation Guide 579-1435AC Rev B *05791435ACB*...
- Page 2 This page is intentionally blank...
-
Page 3: Table Of Contents
Cautions, Warnings, and Regulatory Information..................3 Introduction..............................4 Compatibility......................................4 Reference documents..................................4 Module overview............................5 Specifications......................................7 Mounting instructions..........................8 Mounting the annunciator using the surface mount box......................10 Installing the LED annunciator........................11 Address setting............................12 DIP switch setting using the annunciator............................12 Wiring guidelines............................13 General wiring guidelines..................................13 Specific wiring guidelines.................................. - Page 4 This page is intentionally blank...
-
Page 5: Cautions, Warnings, And Regulatory Information
Product operation and reliability depend upon proper installation. DO NOT INSTALL ANY AUTOCALL™ PRODUCT THAT APPEARS DAMAGED Upon unpacking your Autocall product, inspect the contents of the carton for shipping damage. If damage is apparent, immediately file a claim with the carrier and notify an authorized Autocall product supplier. -
Page 6: Introduction
Refer to the following documents for more information on how to program and use the remote annunciator. Table 1: Document reference guide Document number Title 579-1403AC 2004 Foundation Series Fire Alarm Control Unit Operation Guide. page 4 579-1435AC Rev B... -
Page 7: Module Overview
Foundation Series A606-9111 LED Annunciator Installation Guide 3 Module overview Refer to Figure 1 for the remote annunciator front view and to Figure 2 for the back layout. Figure 1: LED annunciator front view Callouts Description LED display Silence for alarm NAC SILENCE, ACK for buzzer silence... - Page 8 Foundation Series A606-9111 LED Annunciator Installation Guide Figure 3: USB Location and PCB View Callouts Description Screw locations USB location SW10 Table 2: Remote annunciator main back components Component Description USB port (J1) Use for firmware configuration. To access the USB port, remove the back plate. For more information contact technical support.
-
Page 9: Specifications
Foundation Series A606-9111 LED Annunciator Installation Guide Specifications • For use indoors in a dry location • All connections are power-limited and supervised Table 3: Measurements Height Length Depth 5 3/8 in. 6 7/8 in. 1 3/8 in. 13.65 cm 17.46 cm... -
Page 10: Mounting Instructions
Foundation Series A606-9111 LED Annunciator Installation Guide 4 Mounting instructions To mount the annunciator, complete the following steps: Unlock the annunciator using the B-key provided and press location A to open the backplate as shown in Figure 4. Remove the back plate from housing. To remove the back plate, position the back plate at 90º to the housing as shown in Figure 4 and then tilt and detach the bottom interface of plate from housing first as shown in Figure 5. - Page 11 Foundation Series A606-9111 LED Annunciator Installation Guide Place the back plate on the mounting surface and mark the location of the four screw holes. Figure 6: Marking the location of the screw holes Callouts Description Press here Back plate Screw locations Using the four provided screws, mount the annunciator back plate on the wall or mounting surface.
-
Page 12: Mounting The Annunciator Using The Surface Mount Box
Foundation Series A606-9111 LED Annunciator Installation Guide Mounting the annunciator using the surface mount box To mount the annunciator using the surface mount box, complete the following steps Place the annunciator on the surface mount box. Carefully align the mounting holes on the annunciator wall plate with the surface mount box as shown in image Use the four #6-32 screws to mount the wall plate on the surface mount box. -
Page 13: Installing The Led Annunciator
Foundation Series A606-9111 LED Annunciator Installation Guide 5 Installing the LED annunciator To install the LED annunciator with the A004 FACU, complete the following steps: Terminate the annunciators RS485 COMM and power line as shown in Figure 9. Figure 9: Terminating the COMM and power lines Note: Use 100 Ohm termination resistor between A Rtn. -
Page 14: Address Setting
Foundation Series A606-9111 LED Annunciator Installation Guide 6 Address setting DIP switch setting using the annunciator Look for the DIP switch SW10 on the LED annunciator board see Figure 10. Table 5: DIP switch settings Sr. no. SW10.1 SW10.2 Address... -
Page 15: Wiring Guidelines
Communication and power wiring must meet requirement: Model Autocall A2081-9044 overvoltage protectors (200 mA or less). • For maximum wire lengths with or without circuit protectors, see Table 7. - Page 16 Foundation Series A606-9111 LED Annunciator Installation Guide Table 7: Maximum distance supported for respective AWG for annunciator quantity Maximum Maximum distance Maximum distance Maximum distance Maximum distance Maximum distance annunciator QTY (ft) w/ 22 AWG (ft) w/ 20 AWG (ft) w/ 18 AWG...
-
Page 17: Checkout Procedure
Foundation Series A606-9111 LED Annunciator Installation Guide 8 Checkout procedure When the installation is complete, verify that the remote annunciator is working correctly: Execute a lamp test to verify that the LEDs are working, see Executing the lamp test. Verify that the annunciator communicates correctly with the FACU by observing the remote annunciator. The annunciator displays error messages and emits an audible signal if it is not wired correctly and is not communicating with the FACU. -
Page 18: Accessing The User Interface
Foundation Series A606-9111 LED Annunciator Installation Guide 9 Accessing the user interface Access to the user interface is disabled when the keyswitch is in a vertical position, see Figure 11. Figure 11: Using the keyswitch to enable access to the annunciator switch... -
Page 19: Maintenance
Foundation Series A606-9111 LED Annunciator Installation Guide 10 Maintenance Create a log book of reference data. Use this log book to record all maintenance test results and details of any faults or problems that arise. Enter the details of the maintaining company. Perform the functional tests daily, weekly, quarterly, and annually. - Page 20 © 2023 Johnson Controls. All rights reserved. All specifications and other information shown were current as of document revision and are subject to change without notice. Additional listings may be applicable, contact your local Autocall product supplier for the latest status. Listings and approvals under Tyco Fire &...
