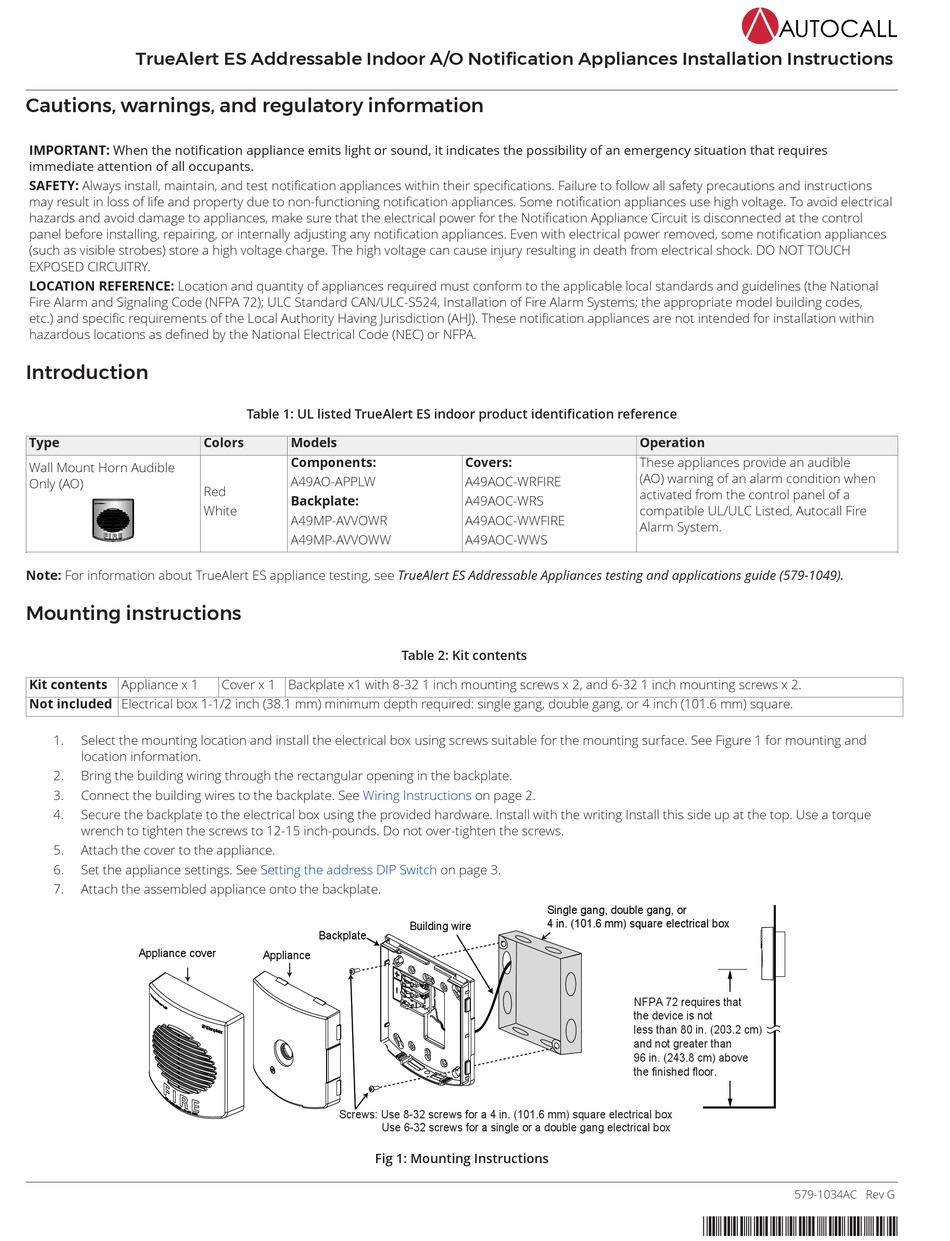

Autocall A49AO-APPLW Installation Instructions

TrueAlert ES Addressable Indoor A/O Notification Appliances Installation Instructions
Cautions, warnings, and regulatory information
IMPORTANT: When the notification appliance emits light or sound, it indicates the possibility of an emergency situation that requires
immediate attention of all occupants.
SAFETY: Always install, maintain, and test notification appliances within their specifications. Failure to follow all safety precautions and instructions
may result in loss of life and property due to non-functioning notification appliances. Some notification appliances use high voltage. To avoid electrical
hazards and avoid damage to appliances, make sure that the electrical power for the Notification Appliance Circuit is disconnected at the control
panel before installing, repairing, or internally adjusting any notification appliances. Even with electrical power removed, some notification appliances
(such as visible strobes) store a high voltage charge. The high voltage can cause injury resulting in death from electrical shock. DO NOT TOUCH
EXPOSED CIRCUITRY.
LOCATION REFERENCE: Location and quantity of appliances required must conform to the applicable local standards and guidelines (the National
Fire Alarm and Signaling Code (NFPA 72); ULC Standard CAN/ULC-S524, Installation of Fire Alarm Systems; the appropriate model building codes,
etc.) and specific requirements of the Local Authority Having Jurisdiction (AHJ). These notification appliances are not intended for installation within
hazardous locations as defined by the National Electrical Code (NEC) or NFPA.
Introduction
Type Colors
Wall Mount Horn Audible
Only (AO)
Red
White
Note: For information about TrueAlert ES appliance testing, see TrueAlert ES Addressable Appliances testing and applications guide (579-1049).
Mounting instructions
Kit contents
Appliance x 1
Not included Electrical box 1-1/2 inch (38.1 mm) minimum depth required: single gang, double gang, or 4 inch (101.6 mm) square.
1. Select the mounting location and install the electrical box using screws suitable for the mounting surface. See Figure 1 for mounting and
location information.
2. Bring the building wiring through the rectangular opening in the backplate.
3. Connect the building wires to the backplate. See
4. Secure the backplate to the electrical box using the provided hardware. Install with the writing Install this side up at the top. Use a torque
wrench to tighten the screws to 12-15 inch-pounds. Do not over-tighten the screws.
5. Attach the cover to the appliance.
6. Set the appliance settings. See
7. Attach the assembled appliance onto the backplate.
Appliance cover
Table 1: UL listed TrueAlert ES indoor product identification reference
Models
Components:
A49AO-APPLW
Backplate:
A49MP-AVVOWR
A49MP-AVVOWW
Table 2: Kit contents
Cover x 1 Backplate x1 with 8-32 1 inch mounting screws x 2, and 6-32 1 inch mounting screws x 2.
Wiring Instructions
Setting the address DIP Switch
Backplate
Appliance
Screws: Use 8-32 screws for a 4 in. (101.6 mm) square electrical box
Use 6-32 screws for a single or a double gang electrical box
Fig 1: Mounting Instructions
Covers:
A49AOC-WRFIRE
A49AOC-WRS
A49AOC-WWFIRE
A49AOC-WWS
on page 2.
on page 3.
Single gang, double gang, or
4 in. (101.6 mm) square electrical box
Building wire
Operation
These appliances provide an audible
(AO) warning of an alarm condition when
activated from the control panel of a
compatible UL/ULC Listed, Autocall Fire
Alarm System.
NFPA 72 requires that
the device is not
less than 80 in. (203.2 cm)
and not greater than
96 in. (243.8 cm) above
the finished floor.
579-1034AC Rev G
