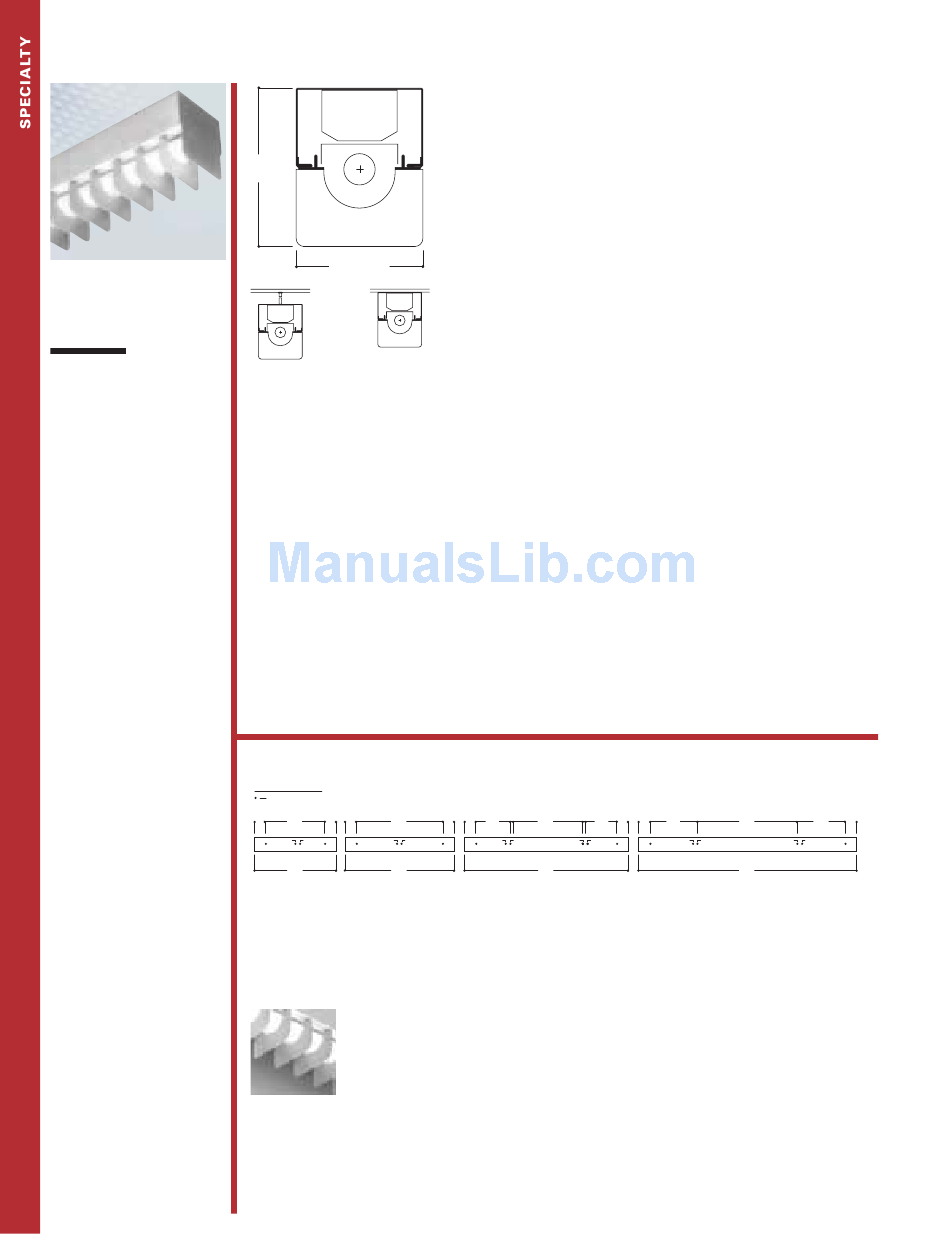

Cooper Lighting NEO-RAY 2-S Specifications

NEO-RAY ™
2-S
2-S/DP
2-S/DS
S E M I I N D I R E C T
D I R E C T- I N D I R E C T
• Direct stack-light distribution.
• Lateral baffles 4" wide by
2.5" high on 2" centers for
vertical illumination.
• The light is continuous and
unbroken.
• Die formed steel housing,
nominal illuminated sections
3', 4', 6' and 8'.
• Runs provided to the nearest
foot.
• Housings may be special
ordered custom finished.
778
COOPER LIGHTING
5"
[127mm]
4" [102mm]
Suspended Surface
Construction
20-guage steel housing. Nominal 3', 4', 6' or 8'
illuminated sections.
Shielding
Lateral baffle.
Electrical
120, 277 or 347 volt electronic ballast. Fixtures and
electrical components certified to UL and CUL
standards.
Finish
Durable, low gloss, white, powder coated acrylic
finish.
Mounting
2DP; Pendant with single stem (standard) or single
cable. Canopy: Round 5-1/2" diameter.
M O U N T I N G I N F O R M AT I O N
TOP HOLE DATA
7/8" DIA KO
5" 26" 5" 5" 38"
1-1/4" 1-1/4"
C L C L
36" 48"
S H I E L D I N G O P T I O N S
S14 Contoured Baffle
NOTES: For complete product data, refer to the Neo-Ray Specification Binder. Specifications and dimensions subject to change without notice. Products may be
modified for use in international markets. Please contact your Cooper Lighting Sales Representative for availability and ordering information.
ORDERING INFORMATION:
Sample number: 2SDP-1T8-ST8-1EB-SI-S14
Series
2S=Specialty
Light Output
D=Direct
Mounting
P=Pendant S=Surface
Number of Lamps
1=1 Lamp
Lamp Type
T8 T5
Pendant Options
SC=Single Cable
Run Length
Overall Nominal Run Length__ft. (Any combination of 8', 6', 4' and 3'
sections)
Voltage 1
1=120V 2=277V
Ballast
EB=Electronic Ballast (Standard)
Switching
SI=Single Switching
Emergency
EM=Emergency Pack (Consult Factory)
Fusing
GLR GMF
Shielding
S14=Contoured Baffle
1 Due to various constraints, some options may not be combined with others.
2 Need a Pendant Option footnote here.
5" 5" 13" 36" 13" 5"
1-1/4" 1-1/4"
72"
(INDIVIDUAL FIXTURES ONLY)
CONSULT FACTORY FOR CONTINUOUS
RUN APPLICATIONS
(not included)
2=2 Lamps
T5HO
ST=Single Stem 2
3=347V U=Universal
DB=Dimming Ballast
DU=Dual Switching (surface mount only)
5" 19" 48" 19"
1-1/4" 1-1/4"
96"
5"
