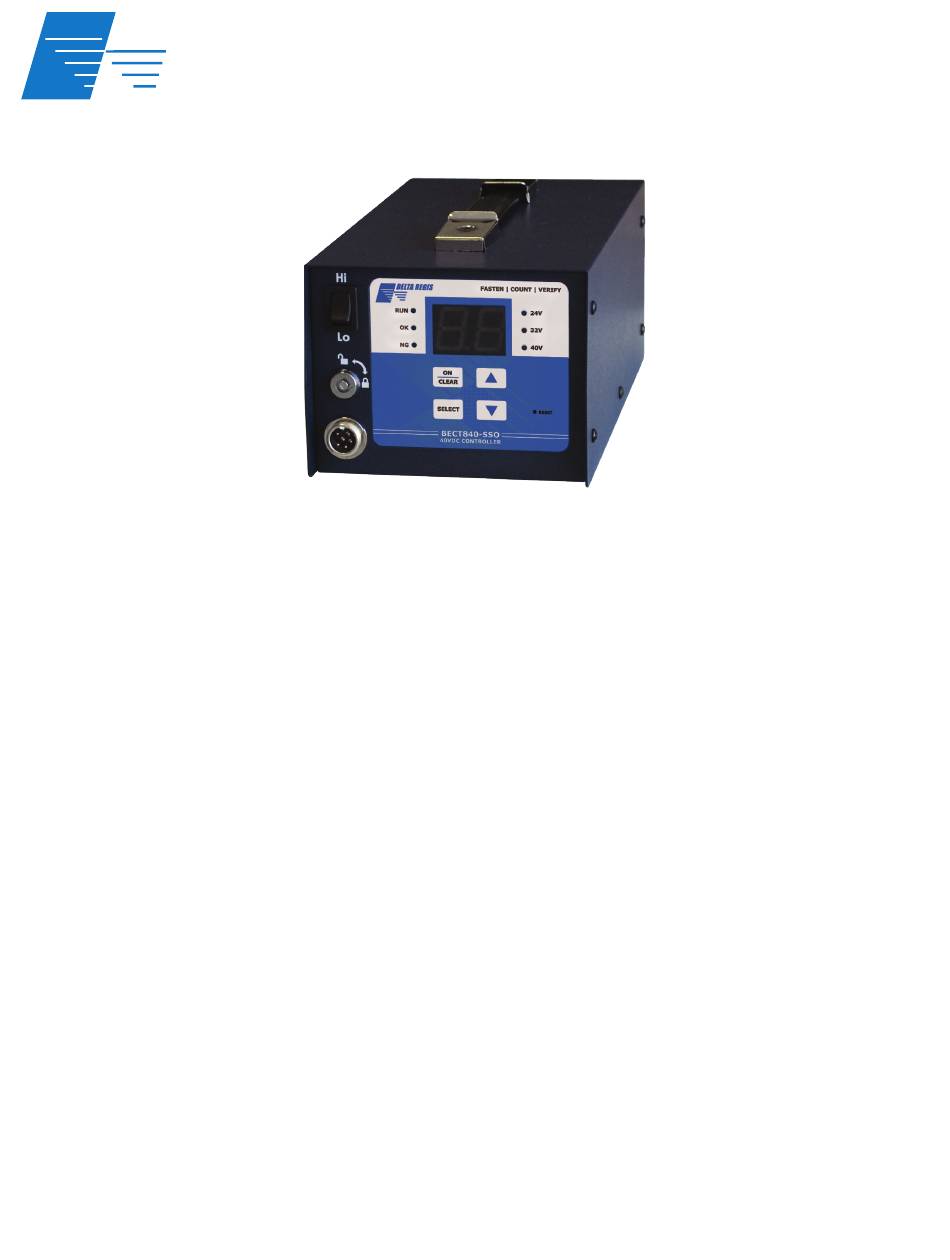

DELTA REGIS
Tools Inc.
Screwdriver Controller Operation Manual
CAUTION - Please read, understand, and follow all operating and safety instructions in
this manual before using the BECT832/840/940-SSO controller.
This controller is designed for use exclusively with the following Delta Regis Brushless
Electric Screwdrivers:
BECT832-SSO-V4.0/4.1:
BECT840-SSO-V4.0/4.1:
BECT940-SSO-V4.0/4.1:
Do not attempt to use these controller with any other tools.
If you have any questions or concerns, please contact us at:
Delta Regis Tools, Inc.
7370 Commercial Circle
Fort Pierce, FL 34951
USA
Doc. Delta Regis_BECT832-940-SSO-V4.0-4.1_M_R0.0
Copyright © 2022 Delta Regis Tools, Inc
BECT832/840/940-SSO V4.0/4.1
CESL810-812(P/S), CESL823-824(F/P/S)
CESL810-812(P/S), CESL823-824(F/P/S),
827-829(P/F/PF/S)
CESL(T)835-875(P)M, CESL(T)885-895(P)M, CESP(T)824,
828-830, 835-865(F/U), CESL(T)935-955(P/F/PF),
CESLT835-875(M/F)/RA(H/S)
Ph +1-772-465-4302
Fx +1-772-465-4368
E-mail: sales@deltaregis.com
Website: www.deltaregis.com
Advertisement
Table of Contents
Related Manuals for Delta Regis BECT832-SSO-V4.0
Summary of Contents for Delta Regis BECT832-SSO-V4.0
- Page 1 Screwdriver Controller Operation Manual CAUTION - Please read, understand, and follow all operating and safety instructions in this manual before using the BECT832/840/940-SSO controller. This controller is designed for use exclusively with the following Delta Regis Brushless Electric Screwdrivers: BECT832-SSO-V4.0/4.1: CESL810-812(P/S), CESL823-824(F/P/S) BECT840-SSO-V4.0/4.1:...
- Page 2 Please consult Delta Regis for the location of the nearest service depot. 15. Use only the factory specified Delta Regis brand replacement parts and accessories with these tools and controllers.
- Page 3 100-240V AC, 50/60Hz, ~1.2A (BECT832-SSO-V4.0/4.1) 100-240V AC, 50/60Hz, ~6.3A (BECT840-SSO-V4.0/4.1) 115-230V AC, 50/60Hz, ~6.3A (BECT940(N)-SSO-V4.0/4.1) Output 32 / 24 VDC, 60W (BECT832-SSO-V4.0/4.1) 40 / 32 / 24 VDC, 220W (BECT840-SSO-V4.0/4.1) 40 / 32 / 24 VDC, 360W (BECT940-SSO-V4.0/4.1) Speeds Hi / Lo (switch selectable) Applicable Screwdriver Models BECT832-SSO-V4.0/4.1...
- Page 4 External Confirm, Enable Batch, External Clear Output Connections Rundown OK, Rundown NG, Batch Complete Dimensions (L x W x H) 200 x 130 x 100 mm (BECT832-SSO-V4.0/4.1) 248 x 130 x 100 mm (BECT840/940-SSO-V4.0/4.1) Weight 1.5 kg (BECT832-SSO-V4.0/4.1) 2.4 kg (BECT840/940-SSO-V4.0/4.1)
-
Page 5: Controller Overview

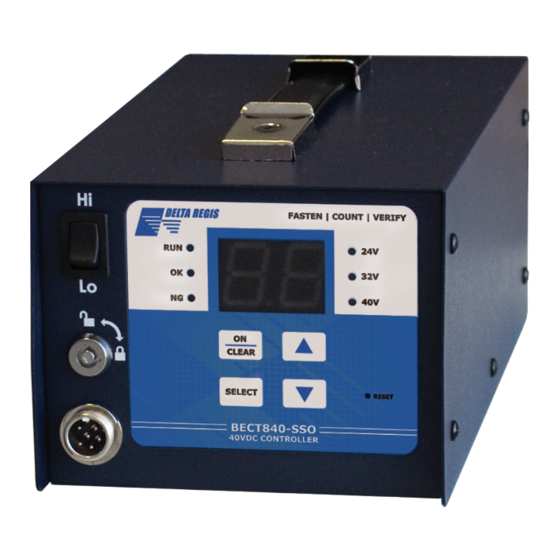

DELTA REGIS BECT832/840/940-SSO-V4.0/4.1 Tools Inc. Screwdriver Controller Operation Manual Controller Overview Front Face of Controller SCREWDRIVER HI/LO SPEED SELECTOR PROGRAM FUNCTION KEY LOCK SCREWDRIVER INPUT VOLTAGE CABLE CONNECTOR SELECT SWITCH 110V OR 220V (TOP OF UNIT, BECT940-SSO ONLY) KEYPAD AND INDICATORS... -
Page 6: Getting Started
(32V–40V) for 40VDC brushless screwdrivers. Reposition and tighten the cover. Connect the 6-pin cable of a compatible Delta Regis brushless screwdriver from the tool to the controller. Delta Regis 32VDC brushless tools plug directly into the BECT832-SSO controller connector. Delta Regis 40VDC brushless tools plug directly into the BECT840/940-SSO controller connector. - Page 7 DELTA REGIS BECT832/840/940-SSO-V4.0/4.1 Tools Inc. Screwdriver Controller Operation Manual SEQUENCE LIST (SL) There are 5 programmable screw fastening sequences (SL=’U1’ to ‘U5’) available. In many cases, only the first sequence (U1) will be needed. If the screwdriver is used to install a batch of fasteners with varying requirements, multiple sequences may be necessary.
- Page 8 DELTA REGIS BECT832/840/940-SSO-V4.0/4.1 Tools Inc. Screwdriver Controller Operation Manual GOOD (OK) NO GOOD (NG) NO GOOD (NG) Time (seconds) Cycle MIN Time MAX Time Start If the fastening cycle completes (clutch trips) within the programmed time window, the rundown cycle will be accepted as GOOD (OK) and the batch count will increment.
- Page 9 continued from previous page... (RC) Slow Start Time The slow start time must be less than the time required to install the screw. The tool must switch to full speed before the clutch Press until ‘RC’ displays. activates for shut-off. Release to SLOW START TIME 0.0 - 9.9 seconds...
- Page 10 DELTA REGIS BECT832/840/940-SSO-V4.0/4.1 Tools Inc. Screwdriver Controller Operation Manual continued from previous page... (Ut) Pre-Tighten Time (Not shown) Entering a value greather than 0.0 for pre-tighten time will cause the driver to stop and provide an OK Press until signal (0.0 - 9.9 sec). If the driver ‘Ut’...
- Page 11 DELTA REGIS BECT832/840/940-SSO-V4.0/4.1 Tools Inc. Screwdriver Controller Operation Manual Optional ‘dt’ and ‘tt’ Cycle Time Alarms, other misc options Two optional alarms are provided to alert the operator if too much time is being taken to run the screws into the assembly.
- Page 12 DELTA REGIS BECT832/840/940-SSO-V4.0/4.1 Tools Inc. Screwdriver Controller Operation Manual continued from previous page... When using a single gate switch (DIP SW2 On) to enable the batch start, option ‘SA’ allows the choice of switching with either of the following: Hi = use a normally closed contact,...
- Page 13 DELTA REGIS BECT832/840/940-SSO-V4.0/4.1 Tools Inc. Screwdriver Controller Operation Manual Audible Alarm Settings / OK and NG Lights Along with the two digit count display, the controller also provides visual and audible indication of rundown OK, rundown NG, and batch complete.
-
Page 14: Output Terminals
DELTA REGIS BECT832/840/940-SSO-V4.0/4.1 Tools Inc. Screwdriver Controller Operation Manual Input / Output Connector COM (0VDC) CLEAR input An input/output connector is provided on the ENABLE input back face of the controller for interfacing signals CONFIRM input with external equipment. DISABLE input REVERSE input (‘-3SL’... -
Page 15: Dip Switch Settings
DELTA REGIS BECT832/840/940-SSO-V4.0/4.1 Tools Inc. Screwdriver Controller Operation Manual DIP Switch Settings There is a 7-position DIP Switch mounted in the rear face of the controller, next to the I/O Connector. The controller is shipped from the factory with all switches in the OFF (down) position. - Page 16 DELTA REGIS BECT832/840/940-SSO-V4.0/4.1 Tools Inc. Screwdriver Controller Operation Manual SW 5 - Evaluate Rundown Time When SW 5 is moved to the ON position, the controller enters a rundown evaluation mode, which can assist in determining proper time window settings to program for the application. The operator will be allowed to run multiple rundown cycles (as many as desired) and the display will show the actual cycle time for each rundown.
- Page 17 DELTA REGIS BECT832/840/940-SSO-V4.0/4.1 Tools Inc. Screwdriver Controller Operation Manual Sequence Selection Inputs (-3SL Version Controllers Only) The optional ‘-3SL Version’ of the controller has two input terminals (8 and 9) which allow selection of one of the first three programmed sequences (U1 through U3). The input is activated (logic state ‘1’) by connecting the appropriate input terminal (8 and/or 9) to the COM terminal (14) through a dry switch contact.
-
Page 18: Fwd/Rev Switch
DELTA REGIS BECT832/840/940-SSO-V4.0/4.1 Tools Inc. Screwdriver Controller Operation Manual During operation of the counting controller and screwdriver, the LED display may indicate an error code. These codes indicate a fault that was encountered during the operation of the tool/controller. Code Indicates... -
Page 19: Display Codes
There is no warranty of merchantability or fitness of purpose. In no event will Delta Regis Tools, Inc. be liable for business interruptions, loss of profits, harm, injury, damage, personal injury, cost of delay, or any other special, indirect, incidental, or consequential losses, costs, or damages.
