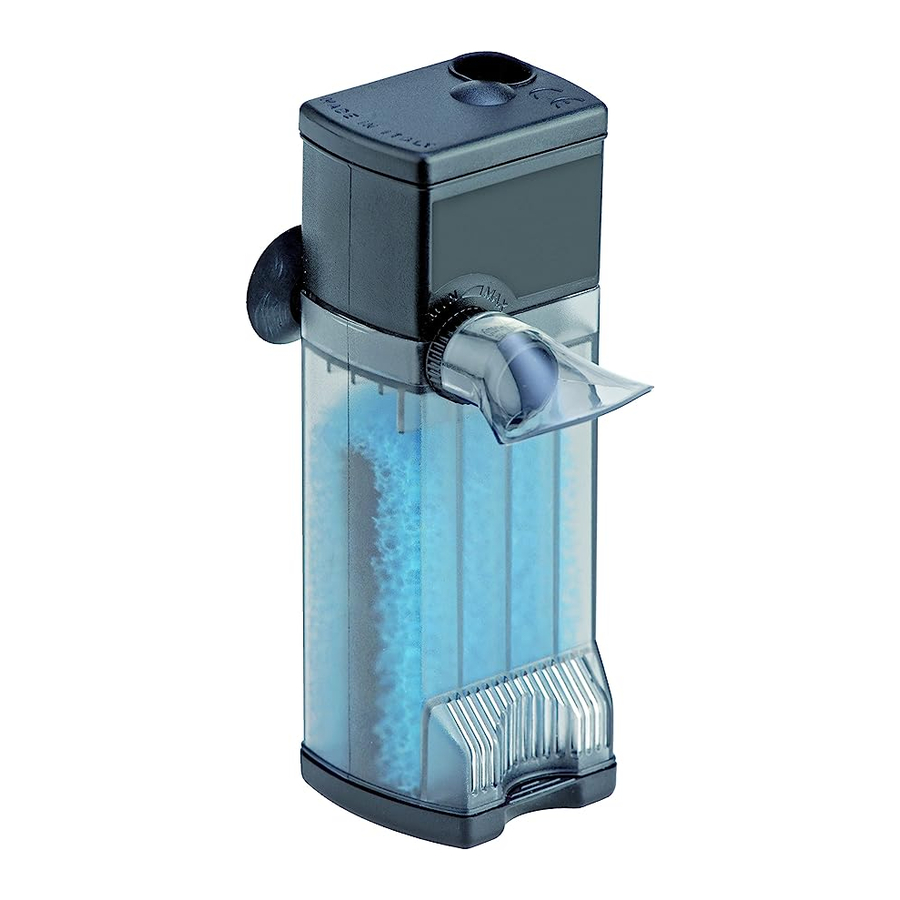

Eden 304S - Aquarium Mini-Filter Manual

SAFETY INSTRUCTIONS

• Check that the voltage shown on the label of the unit.
• Connect the unit only to power supplies with residual corresponds to the voltage of the mains supply.
• Current circuit breaker (RCCD) with sensitivity of 30 mA.
• Always disconnect all electrical appliances from the mains before placing your hands in the water.
• The line cord cannot be replaced or repaired. Should the cord become damaged the appliance must be discarded.
• When the symbol appears on the label the unit is intended for indoor use only. Models for outdoor are also available.
• This unit must not be used in swimming pools or bathrooms.
• This appliance has been designed for use in fluids up to 35°C.

VERY IMPORTANT NOTICE!
This unit can be used by children from the age of 8 and by persons with physical, sensory or mental impairments or lack of experience and knowledge, as long as they are supervised or instructed on how to use the unit safely and are able to understand the potential hazards. Do not allow children to play with the unit. Do not allow children to clean or maintain the unit without close supervision.

The power supply cable of this unit cannot be replaced. If damaged, the unit must be disposed of.

FOR UK ONLY

The leads of this unit must be connected as follows: Blue or Black to Neutral or Black-coloured terminal; Brown to Live or Red-coloured terminal. Units intended for outdoor use have a Green or Green/ Yellow earth wire and this must be connected to the Earth terminal on the plug.

This unit is fitted with a BS1363 13A plug. Should the fuse need to be replaced, a 3A ASTA approved BS1362 must be used. Spare fuse holders are available from your supplier if the plug has a separate fuse holder. If your socket is not suitable for the plug then plug must be removed and an appropriate one fitted.

Proper care must be taken in discarding a plug which has been removed by cutting the cable

INSTALLATION

Mount the suckers on the filter (fig. 1). Choose an appropriate position for good water circulation.

Clean the surface from algae etc. and firmly press the filter against it. The water outlet can be extended if desired by adding a length of pipe.

ADJUSTING THE FLOW

Rotate the control valve toward min. or max. indicator (fig. 2) as necessary.

MAINTENANCE

Periodically clean the filter, the rotor and the pump chamber to remove any debris which could block the unit (fig.3-4). It is recommended to replace the filter cartridge after 3 or 4 rinsings or when it appears to be damaged to ensure maximum efficiency. The motor is fully encapsulated and self protected against overheating and needs no particular care. If the filter fails to work, check first the electrical supply, connections, circuit breaker etc. for failures. If these are all right, the pump needs cleaning.

CLEANING

Prior to any work, disconnect all electrical equipment from mains.

Remove the filter from the motor housing and pull off the rotor from its location (fig. 3). Wash all components with the help of a non metallic brush. Lime-scale can be removed by leaving the parts immersed in vinegar or lemon juice for few hours. Open the bottom of the filter, take out the sponge and rinse it under luke-warm water (fig. 4).

SPARES

SPARES	50Hz	60Hz
	9901-01	9901-02
	9901-05
	9901-06

TECHNICAL SPECIFICATIONS

Disposal:
(in accordance with RL2002/96/EC)
The product must not be added to normal household waste.
It must be disposed of properly.

EDEN S.R.L.
Via delle Industrie, 16
36050, Cartigliano, VI
www.eden-aquarium.com
e-mail: info@edensrl.com
