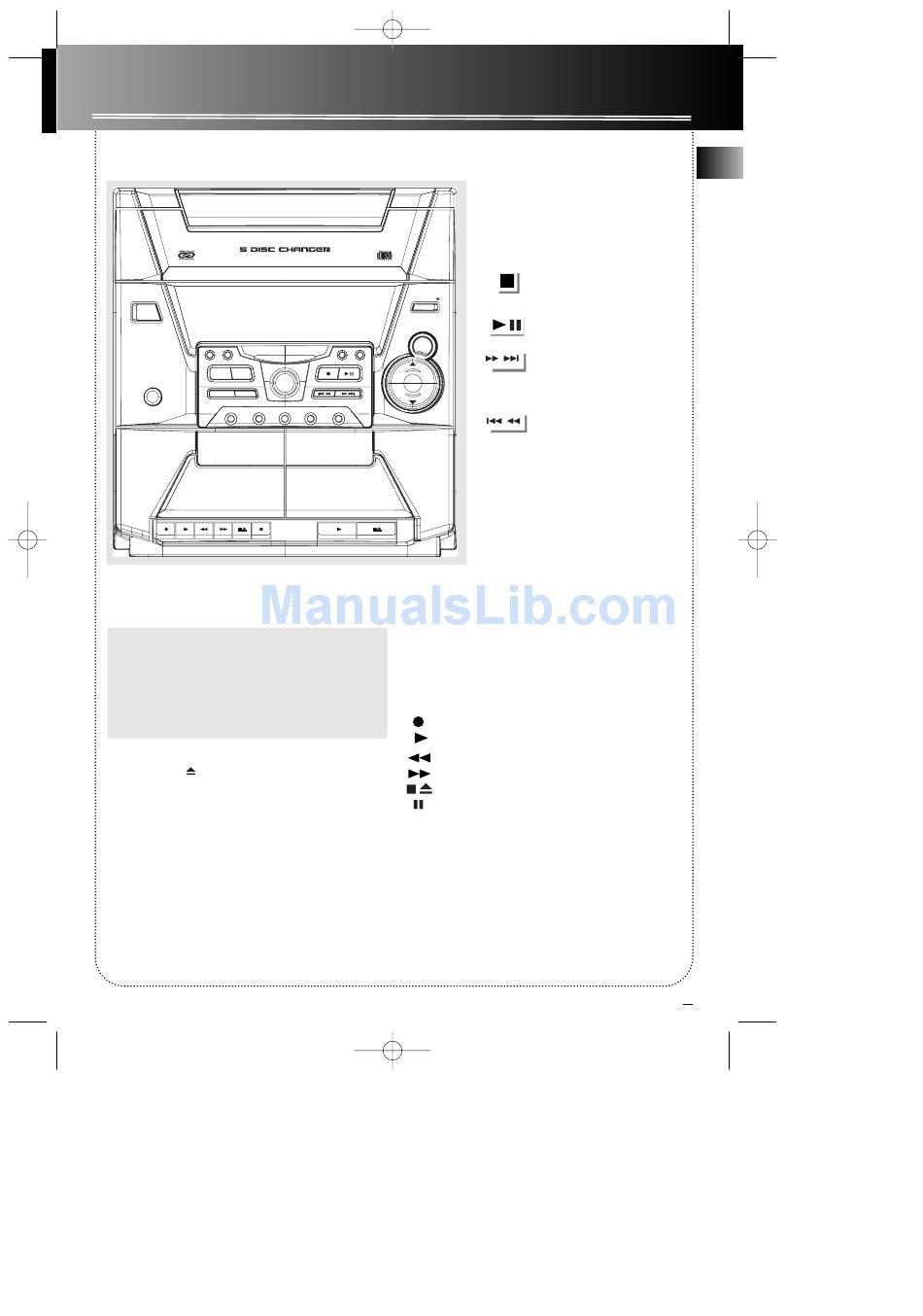

General Controls

Main Unit

S I M U L T A N E O U S P L A Y A N D L O A D S Y S T E M
STANDBY
POWER
DIMMER/
DEMO TIMER
CD DISPLAY
SOURCE DISC SKIP
PHONES
REPEAT
AUTO PROG.
1
DECK-1
STANDBY/POWER — Turns power on or off (STAND-
BY mode).
Tip: In STANDBY mode (press POWER off), the
system displays the time. Press POWER to turn the
system on in the previously used mode. Press CD,
TAPE, or TUNER (Remote Only) to select the
corresponding mode. Look at the display icons to
identify the current mode.
PHONES — Jack for connecting headphones
OPEN/CLOSE — Opens or closes the disc tray.
DEMO/DIMMER/CD DISPLAY — Turns the feature
demonstration on or off, adjusts display brightness,
selects among displaying disc details.
TIMER — Enters timer setting mode and turns the
timer on/off.
CLOCK — Shows clock time and enters clock setting
mode.
PROG./SET - Enters program mode for CD and
Tuner; Applies new settings for Clock and Timer
modes.
SOURCE— Selects the CD player/ tuner/ tape player.
4:20 PM Page 7
DIGITAL AUDIO SYSTEM RS2600
OPEN/CLOSE
CLOCK PROG./SET
ROCK/CLASSIC POP/JAZZ
TUNE/PRESET
UP
CUSTOM
/FLAT
DOWN
BAND
D I R E C T D I S C A C C E S S
2 3 4 5
DECK-2
REC/PLAYBACK PLAYBACK
mode.
ROCK/CLASSIC, CUSTOM/FLAT, POP/JAZZ — selects
among the different EQ modes.
BASS BOOST — Turns BASS BOOST on or off
VOLUME UP/DOWN — Increases/ decreases volume.
DISC SKIP — Skips to the next CD in
the tray
DISC 1 - DISC 5 — Selects disc 1, 2, 3,
4, or 5
STOP / TUNE / PRESET—
Stops CD track, Sets tune or
preset mode
PLAY/PAUSE — Plays or
pauses CD
B
ass
B
oost
SKIP FORWARD —
Increments radio frequency,
preset up, goes to the next
CD track or setting option.
SKIP BACKWARD —
Decrements radio
frequency, preset down,
goes to the previous CD
track or setting option.
REPEAT - Selects among repeat
modes.
BAND/AUTO PROG. — Changes
between FM and AM tuner bands.
Enters auto preset program in FM
Tape Player
RECORD
PLAY
REWIND
FAST-FORWARD
STOP/EJECT
PAUSE
EN
3
