LBS DRAGON POWER PLUS 15 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

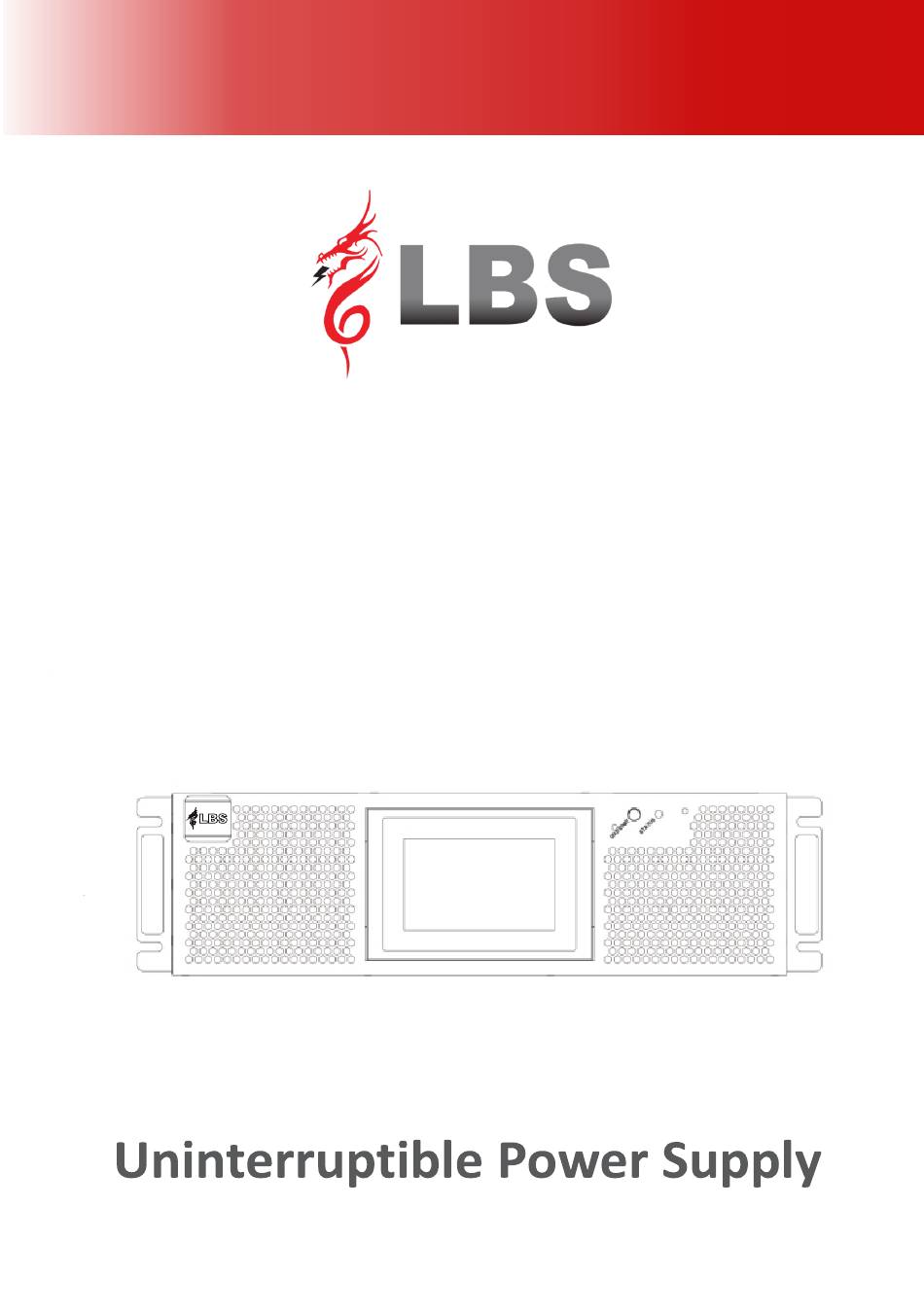

UPS USER MANUAL
DRAGON POWER PLUS 15
15 KVA - 60 KVA

Advertisement

Table of Contents
loading

Related Manuals for LBS DRAGON POWER PLUS 15

Summary of Contents for LBS DRAGON POWER PLUS 15

  • Page 1 UPS USER MANUAL DRAGON POWER PLUS 15 15 KVA - 60 KVA...
  • Page 2 Preface Usage The manual contains information on installation, use, operation and maintenance of UPS. Please carefully read this manual prior to installation. Users Authorized Person Note ● Our company is providing a full range of technical support and service. Customers can contact our local office or customer service center for help.

  • Page 3: Safety Precautions

    Safety Precautions This manual contains information concerning the installation and operation of UPS. Please carefully read this manual prior to installation. The UPS cannot be put into operation until it is commissioned by engineers approved by the manufacturer (or its agent). Not doing so could result in personnel safety risk, equipment malfunction and invalidation of warranty.

  • Page 4: Maintenance & Replacement

    ⟡ When the system is running , do not touch the surface with this label, to avoid any hurt of scald. ⟡ ESD sensitive components inside the UPS, anti-ESD measure should be taken before handling. Move & Installation ⟡ Keep the equipment away from heat source or air outlets. ⟡...

  • Page 5: Battery Safety

    ⟡ This UPS full complies with “IEC62040-1-1-General and safety requirements for use in operator access area UPS”. Dangerous voltages are present within the battery box. However, the risk of contact with these high voltages is minimized for non-service personnel. Since the component with dangerous voltage can only be touched by opening the protective cover with a tool, the possibility of touching high voltage component is minimized.
  • Page 6 accidental electrical arcs. ⟡ Only use tools (e.g. wrench) with insulated handles. ⟡ The batteries are very heavy. Please handle and lift the battery with proper method to prevent any human injury or damage to the battery terminal. ⟡ Don’t decompose, modify or damage the battery. Otherwise, battery short circuit, leakage or even human injury may be caused.

  • Page 7: Ups Structure

    1 UPS Structure and Introduction 1.1 UPS Structure 1.1.1 UPS Configuration The UPS configurations are provided in Table 1-1. Table 1-1 UPS Configuration Item Components Quantity Remark Circuit Breakers Optional Dual Input Standard 10-15kVA Parallel Card Optional Dry Contact Card Optional Cold start Standard...
  • Page 8 The UPS front views are shown as Figure 1-1. Rear panel: As shown in Figure 1-2, the UPS rear panel offers the following components: Parallel（Optional） SNMP (Optional) RS485 USB（Optional） RS232 Connector LBS（Optional, only available for 20k and 25k） Dry Contact...

  • Page 9: Product Introduction

    Rear View for 10k Rear View for 15k Figure 1-2 Details of the views 1.2 Product Introduction 1.2.1 UPS System Description The Rack UPS is configured by the following part: Rectifier, Charger, Inverter, Static bypass switch. One or several battery strings should be installed to provide backup energy once the utility fails. The UPS structures are shown in Figure 1-3.
  • Page 10 1.2.2 Operation Mode The tower UPS is an on-line, double-conversion UPS that permits operation in the following modes: Normal mode ⚫ ⚫ Battery mode Bypass mode ⚫ Maintenance mode(manual bypass) ⚫ ECO mode ⚫ Auto-restart mode ⚫ ⚫ Frequency Converter mode 1.2.2.1 Normal Mode The inverter of UPS continuously supply the critical AC load.
  • Page 11 Figure 1-5 Battery Mode operation diagram Note: With the function of “Battery Cold Start”, the UPS could start without utility. See more detail in section5.1.2. 1.2.2.3 Bypass Mode If the overload capacity of the inverter is exceeded under Normal mode, or if the inverter becomes unavailable for any reason, the static transfer switch will perform a transfer of the load from the inverter to the bypass source, with no interruption in power to the critical AC load.
  • Page 12 1.2.2.4 Maintenance Mode (Manual Bypass) A manual bypass switch is available to ensure continuity of supply to the critical load when the UPS becomes unavailable e.g. during a maintenance procedure. The Maintenance mode structure is shown in Fig.1-7. Figure 1-7 Maintenance mode operation diagram Danger During Maintenance mode, dangerous voltages are present on the terminal of input, output and neutral, even with all the modules and the LCD turned off.
  • Page 13 Note There is a short interruption time (less than 10ms) when transferring from ECO mode to battery mode, it must be sure that the interruption has no effect on loads. 1.2.2.6 Auto-restart Mode The battery may become exhausted following an extended AC mains failure. The inverter shuts down when the battery reaches the End of Discharge Voltage (EOD).

  • Page 14: Installation

    2 Installation This chapter introduces UPS installation, including unpacking and inspection, main Cabinet Installation, cables connection. 2.1 Location As each site has itself requirements, the installation instructions in this section are as a guide for the general procedures and practices that should be observed by the installing engineer. 2.1.1 Installation Environment The UPS is intended for indoor installation and uses forced convection cooling by internal fans.

  • Page 15: Unpacking And Inspection

    Configuration Dimension(W*D*H)mm Weight 10kVA 488*945*130 25kg 15kVA 488*945*130 30kg 2.2 Unpacking and Inspection 1) Unpack the packaging and check the package contents. The shipping package contains: ● 1 UPS ● 1 user manual 2) Inspect the appearance of the UPS to see if there is any damage during transportation. Do not turn on the unit and notify the carrier and dealer immediately if there is any damage or lacking of some parts.

  • Page 16: Rack Installation

    Fig.2-1 Support bases and spacers assembly (2) Place the UPS on the support bases, shown as Fig.2-2. Fig.2-2 Tower installation (3) Remove the LOGO in the upper right corner, turn it 90 degrees counterclockwise, and then insert 2.4.2 Rack Installation Battery cabinets must be installed firstly because battery cabinets are too heavy.
  • Page 17 Fig.2-3 Rack Mounted Installation 2.5 Battery Three terminals (positive, neutral, negative) are drawn from the battery group and connected to UPS system. The neutral line is draw from the middle of the batteries in series (See Figure 2-4) Figure 2-4 Battery connection diagram Danger The battery terminal voltage is of more than 200Vdc, please follow the safety instructions to avoid electric shock hazard.

  • Page 18: Power Cables

    2.6 Power Cables 2.6.1 Specifications The UPS power cables are recommended in Table 2-2. Table 2-2 Recommended cables for power cables Contents Main Input Bypass Input Output Battery 15KVA（3/3） BAT+ BAT- Current（A） Size（mm²） 10KVA（3/3） BAT+ BAT- Current（A） Size（mm²） Note The recommended cable section for power cables are only for the situations described below: ⚫...
  • Page 19 Cables crimped 4.9Nm OT terminal 2.6.3 Circuit Breaker The external circuit breakers (CB) for the system are recommended in Table 2-4. Table 2-4 Recommended CB Model Input Bypass Output Battery 15KVA 63A/3P 63A/3P 63A/4P DC 100A/3P （ 3 / 3） 10KVA 63A/3P 63A/3P...

  • Page 20: Control And Communication Cables

    The operations described in this section must be performed by authorized electricians or qualified technical personnel. If you have any difficulties, contact the manufacturer or agency. Warning ⚫ Tighten the connections terminals to enough torque moment, refer to Table 2-3, and please ensure correct phase rotation.
  • Page 21 Common terminal for temperature detection J3-2 TEMP_COM Trigger EPO when disconnect with J4-2 J4-1 REMOTE_EPO_NC +24V J4-2 +24V_DRY Output dry contact, function is settable. J6-1-1 BCB Drive Default: Battery trip signal J6-1-2 GND_DRY Ground for +24V Input dry contact, function is settable. J6-2-1 BCB_Status Default: BCB Status and BCB Online, (Alert no battery...
  • Page 22 Interfaces diagram for J2 and J3 are shown in Figure2-11, the description of interface is in Table 2- J2 and J3 for temperature detecting Figure 2-11 Description of J2 and J3 Table 2-6 Port Name Function J2-1 TEMP_BAT Detection of battery temperature J2-2 TEMP_COM common terminal...
  • Page 23 BCB Input Port The default function of J6 and J7 are the ports of BCB. The port diagram is shown in Figure2-14, and description is shown in Table 2-9. +24V +24V +24V J6-2 J6-1 Figure 2-14 BCB Port Table 2-9 Description of BCB port Port Name Function...
  • Page 24 Battery warning dry contact interface description Table 2-10 Port Name Function Battery warning relay (normally closed) will be J8-1 BAT_LOW_ALARM_NC open during warning Battery warning relay (normally open) will be J8-2 BAT_LOW_ALARM_NO closed during warning J8-3 BAT_LOW_ALARM_GND Common terminal General Alarm Output Dry Contact Interface The default function of J9 is the general alarm output dry contact interface.

  • Page 25: Power Distribution Mode

    2.8 Power Distribution Mode Stand-alone UPS has two power distribution modes: Either use matching COP power distribution options or users install the external breakers. According to the needs of the user, distribution cable connection is divided into four types: 3-phase in and 3-phase out, common input; 3-phase in and 3-phase out, dual input;...
  • Page 26 2.8.3 3-phase in and 1 phase out, common input 1. The default setting is 3-phase in and 3-phase out, if need to change the system into 3-phase in and 1 phase out, please operate as follows. a．Remove all copper bars，connect input cable only(no bypass/output/battery).Asshown in Figure 2-14.
  • Page 27 Fig. 2-16 3-phase in and 1 phase out, common input 3. Fix the insulating film (accessory) to the No.6 copper bar as shown in figure 2-17, and fixed in the corresponding position with the plastic rivet, as shown in figure 2-18. Fig.
  • Page 28 1. According to section 2.8.3, first step is to change system into 3 in 1 out system 2. As shown in Figure 2-19, short-circuit bA, bB and bC with No.5 copper bar; short-circuit oN, bN and mN with No.7 copper bar; short-circuit oA, oB and oC with No.4 copper bar. Fig.

  • Page 29: Lcd Panel

    3. LCD Panel This chapter introduces the functions and operator instructions of the operator control and display panel in detail, and provides LCD display information, including LCD display types, detailed menu information, prompt window information and UPS alarm information. 3.1 Control and Operation Panel The operation control panel of UPS is located on the front panel of the case.

  • Page 30: Lcd Screen

    3.3 LCD Screen After the monitoring system starts self-test, the system enters the home page, following the welcome window. The home page is shown in Figure 3-2. Fig.3-2 Home page Home page consists of Status bar, warning information and main menu. ●...
  • Page 31 Figure 3-3 Submenu Interface of Data Page 3.4.2 Log Touch the “Log” icon, and the system enters the interface of the Log, as it is shown in Figure 3- 4.The log is listed in reverse chronological order (i.e. the first on the screen with #1 is the most new), which displays the events, warnings and faults information and the data and time they occur and disappear.
  • Page 32 Battery Not Connected-Set Battery cables Disconnected. Maintenance CB Closed-Set Maintenance CB is Closed Maintenance CB Open-Set Maintenance CB is Open EPO-Set Emergency Power Off Module On Less-Set Valid Inverter capacity is less than the load capacity Module On Less-Clear Incident above disappears Generator Input-Set Generator as the Ac Input Source Generator Input-Clear...
  • Page 33 Incident above disappears Rectifier Over Temp.-Clear Fan Fail Fan Fail-Set Incident above disappears Fan Fail-Clear Output Over Load Output Overload-Set Incident above disappears Output Overload-Clear Inverter Over Load Timeout Inverter Overload Tout-Set Incident above disappears INV Overload Tout-Clear Inverter Over Temperature Inverter Over Temp.-Set Incident above disappears Inverter Over Temp.-Clear...
  • Page 34 Output Volt Fail-Clear Incident above disappears Outlet Temp. Error-Set Outlet Temperature is abnormal Outlet Temp. Error-Clear Incident above disappears Input Curr Unbalance-Set Input current is not balance Input Curr Unbalance-Clear Incident above disappears DC Bus Over Volt-Set DC bus over Voltage DC Bus Over Volt-Clear Incident above disappears REC Soft Start Fail-Set...
  • Page 35 Figure 3-5 Submenu Interface of Setting Page The submenus are listed on the bottom side of the Setting page. Users can enter each of the setting interfaces by touching the relevant icon. The submenus are described in details below in Table 3-4. Table 3-4 Description of each submenu of Setting Submenu Name Contents...
  • Page 36 Charge Current Percent Limit Charge current (percentage of the rated current) Setting the system mode: Single , parallel, Single System Mode ECO, parallel ECO, LBS, parallel LBS Parallel number Parallel system UPS numbers Parallel ID UPS ID in parallel system...
  • Page 37 Figure 3-7 Operate Page The “Operate” menu includes FUNCTION BUTTON and TEST COMMAND. The contents are described in details below. FUNTION BUTTON ⚫ On/Off Manual turn ON/OFF UPS ⚫ Fault Clear Clear the faults by touching the icon. ⚫ Transfer to Bypass Transfer to bypass mode by touching the icon ⚫...

  • Page 38: Ups Start-Up

    4 Operations 4.1 UPS start-up 4.1.1 Startup in normal mode The UPS must be started up by commissioning engineer after the completeness of installation. The steps below must be followed: 1) Ensure all the circuit breakers are open. If the ups is used with our POD option (POD includes 4 breakers), one by one to turn on the output breaker, input breaker, bypass input breaker, and then the system starts initializing;...
  • Page 39 5) After the bypass static switch is on, the inverter starts and the inverter indicator bar flashes as shown in Figure 4-3. Figure 4-3 Inverter starting 6) After about 30S, when the inverter is running normally, the UPS switches from the bypass to the inverter, the bypass indicator bar is off, and the load indicator bar flashes.
  • Page 40 Figure 4-5 Starting completed Note ⚫ When the system starts, the stored setting will be loaded. ⚫ Users can browse all events during the process of the starting up by checking the menu Log. 4.1.2 Start from battery The start from battery refers to the battery cold start. The steps of the start-up are as follow: 1) Confirm the batteries are correctly connected, and then close the external battery circuit breakers.

  • Page 41: Ups Shutdown

    Figure 4-7 Energy flowing diagram of discharge 3) After about 60 seconds, the rectifier completes the start, and the inverter begins to start, and after 30 seconds, the inverter complete the start, and supply the power to the output. The energy flowing diagram is shown in Figure 4-8.

  • Page 42: Procedure For Switching Between Operation Modes

    4.3 Procedure for Switching between Operation Modes 4.3.1 Switching the UPS from normal mode into battery mode The UPS transfers to battery mode immediately after the utility (mains voltage) fails or drops down below the predefined limit. 4.3.2 Switching the UPS from normal mode into bypass mode Touching the icon and then input the password “1203”...

  • Page 43: Battery Maintenance

    Waring Once the cover on the maintenance bypass breaker is removed, the system will transfer to bypass mode automatically. Waring Before making this operation, confirm the messages on LCD display to ensure that bypass supply is regular and the inverter is synchronous with it, so as not to risk a short interruption in powering the load.

  • Page 44: Installation Of Parallel Operation System

    Figure 4-9 Battery maintenance Warning The load for the auto maintenance discharge should be 20%-100%，if not, the system will not start the process automatically 4.5 Installation of parallel operation system Normally 4 cabinets can be paralleled; and the parallel function is optional, if users need the function, please confirm the configuration with the supplier in advance.

  • Page 45: Maintenance

    5 Maintenance This chapter introduces UPS maintenance, including the maintenance instructions of power module and monitoring bypass module and the replacement method of dust filter. 5.1 Precautions Only maintaining engineers can maintain the power module and monitoring bypass module. 1) The power module should be disassembled from top to bottom, so as to prevent any inclination from high gravity center of the cabinet.
  • Page 46 When the UPS runs in battery mode with light load or no load for a long time, it will cause the battery to deep discharge. 6) Check periodically. Observe if any abnormality of the battery, measure if the voltage of each battery is in balance.

  • Page 47: Product Specifications

    6 Product Specifications This chapter provides the specifications of the product, including environment characteristics mechanical characteristics and electrical characteristics. 6.1 Applicable Standards The UPS has been designed to conform to the following European and international standards: Table 6-1 Compliance with European and International Standards Item Normative reference General safety requirements for UPS used in operator access areas...

  • Page 48: Electrical Characteristics

    6.3 Mechanical Characteristics Table 6-3 Mechanical Characteristics for Cabinet Item Unit Parameter Rated capacity Dimension (W×D×H) 488*945*130 Weight BLACK,RAL 7021 Color Protection Level IP20 IEC（60529） 6.4 Electrical Characteristics 6.4.1 Electrical Characteristics (Input Rectifier) Table 6-4 Rectifier AC input Mains Item Unit Parameter Rated capacity...
  • Page 49 Quantity of lead- 20=[1 battery(12V)] ,120=[1battery(2V)] Nominal acid cells 2.25V/cell(selectablefrom 2.2V/cell～2.35V/cell) V/cell Float charge voltage （VRLA） Constant current and constant voltage charge mode Temperature mV/℃ /cl 3.0(selectable:0~5.0) compensation ％ Ripple voltage ≤1 ％ Ripple current ≤5 Equalized 2.4V/cell(selectable from : 2.30V/cell~2.45V/cell) VRLA charge voltage Constant current and constant voltage charge mode...

  • Page 50: Display And Interface

    6.4.4 Electrical Characteristics (Bypass Mains Input) Table 6-7 Bypass Mains Input Item Unit Value 120/208 Rated AC voltage (three-phase four-wire and sharing neutral with the bypass) 125% Long term operation; 125%~130% for 10min; ％ Overload 130%~150% for 1min; 150%~400% for 1s; >400% ,less than 200ms Current rating of 1.7×In...
  • Page 51 Standard:RS232, RS485, Dry Contact Interface Option: SNMP, Parallel, USB...
  • Page 52 Annex. A Instructions of the POD This series of UPS has no breaker in its own cabinet, POD unit is designed to be used together with this kind of UPS, and users could select it as per requirements. The POD units have 2 kinds, one is for single UPS, and the other is for 2 UPS in parallel.
  • Page 53 (D) the rear view without the protective cover Remove the protective cover, the connection terminal occurs. MAIN INPUT: mA, mB, mC, mN; BYPASS INPUT: bA, bB, bC, bN; OUTPUT: oA, oB, oC, oN; Ground: PE; Note: For the factory default configuration, mA and bA, mB and bB, mC and bC are short-connected by the copper sheet B1.
  • Page 54 2. Cable connection of POD for single system UPS has 4 kinds of configurations, so there are 4 kinds of cable connections. NOTE: Before connecting the cables, please first confirm the configuration of the UPS, generally the UPS is configured as the type of 3-phase input and 3-phase output (3/3) as default. If changing to 3-phase input and one phase output (3/1), please first set the UPS as the type of 3-phase input and one phase output as per the UPS user manual.
  • Page 55 PE on the bottom connection terminal row of POD to the corresponding positions on the UPS. (c) The top connection terminal row is for connecting the input and output cables of the whole system. (d) Battery cabeles should be dircetly connected to the corresponding positions on the UPS. (3) 3-phase input and 1 phase output with common input NOTE: The UPS and COP are both configured as the type of 3-phase input and 3-phase output as default.
  • Page 56 (f) Short oN, mN, and bN on the UPS connection terminal row with the copper sheet “UPS-7”. (g) Short mA, bA, bB and bC on the UPS connection terminal row with the copper sheet “UPS-6”. (h) Connect oA and oB on the bottom connection terminal row of POD to the copper sheet “UPS- 4”...
  • Page 57 (c) Short oC, oN, mN, and bN on the top connection terminal row of POD with the copper sheet “POD-4”. (d) Short mA, bA, bB and bC on the top connection terminal row of POD with the copper sheet “POD-5”. (e) Short oA, oB and oC on the UPS connection terminal row with the copper sheet “UPS-4”.
  • Page 58 The outlook of POD for parallel system is shown as Figure 2. (A) Front view with the cover (B) The front view without the cover The cover is attracted by magnet on the both side. Remove the cover, 7 breakers occur, they are MAIN INPUT breaker, BYPASS INPUT breaker, and OUTPUT breaker on the top row from left to right.
  • Page 59 (C) Rear view with the cover (D) Rear view without the cover Remove the protective cover, the connection terminal occurs. MAIN INPUT: mA, mB, mC, mN; BYPASS INPUT: bA, bB, bC, bN; OUTPUT: oA, oB, oC, oN; Ground: PE; Note: For the factory default configuration, mA and bA, mB and bB, mC and bC are short- connected by the copper sheet B1.
  • Page 60 (E) Side view (unit: mm) (F) Top view (unit: mm) Figure 2 POD for parallel system outlook 4. Cable connection of POD for parallel system UPS has 4 kinds of configurations, so there are 4 kinds of cable connections. NOTE: Before connecting the cables, please first confirm the configuration of the UPS, generally the UPS is configured as the type of 3-phase input and 3-phase output (3/3) as default.
  • Page 61 (1) 3-phase input and 3-phase output with common input There are 3 blocks of connection terminal rows in POD for parallel system, the first is for connecting the input and the output of the whole system, the second is for connecting UPS2, and the third is for connecting UPS1.
  • Page 62 3-phase input and 3-phase output with dual input (a) Remove these copper sheets (named B1) between mA and bA, mB and bB, mC and bC of COP and UPS. (b) Connect oA, oB, oC, oN, mN, bN, mA, bA, mB, bB, mC, bC PE on the third connection terminal row of POD to the corresponding positions on the UPS1.
  • Page 63 3-phase input and 1 phase output with common input NOTE: The UPS and COP are both configured as the type of 3-phase input and 3-phase output as default. If configuring the system as the type of 3-phase input and 3-phase output, there needs some copper sheets for connection, these copper sheets are optional, they are named “3/1 kit for UPS”...
  • Page 64 (b) 3-phase input and 1 phase output with dual input NOTE: The UPS and COP are both configured as the type of 3-phase input and 3-phase output as default. If configuring the system as the type of 3-phase input and 3-phase output, there needs some copper sheets for connection, these copper sheets are optional, they are named “3/1 kit for UPS”...
  • Page 65 (c) Short oC, oN, mN, and bN on the top connection terminal row of POD with the copper sheet “POD-4”. (d) Short mA, bA, bB and bC on the top connection terminal row of POD with the copper sheet “POD-5”. (e) Short oA, oB and oC on the UPS connection terminal row with the copper sheet “UPS-4”.
  • Page 67 Español English www.lbspower.com...
