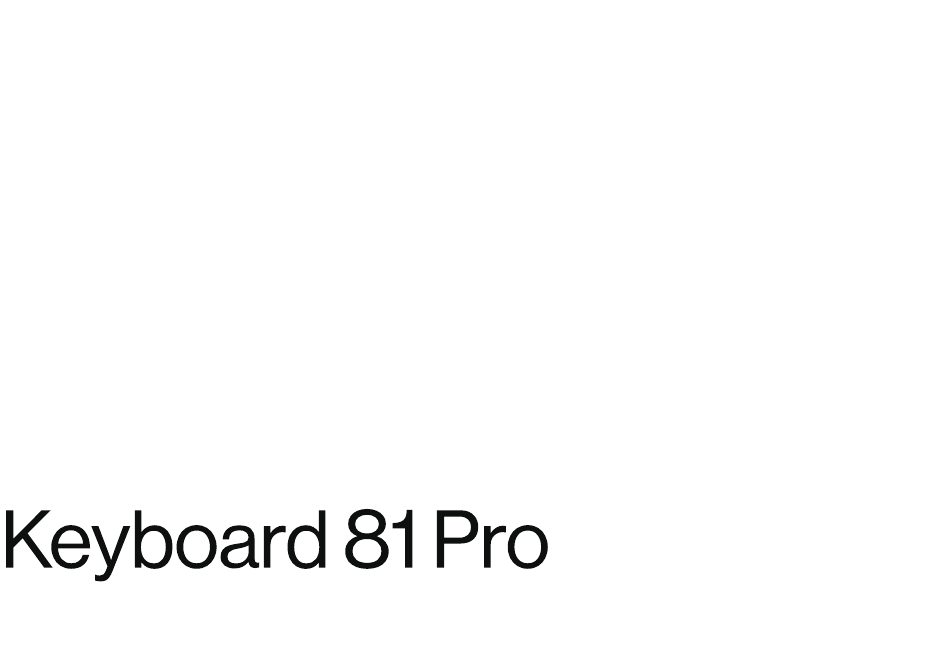

Page 1 User Manual...
Page 2 Welcome to the Keyboard 81 Pro, the first-ever global product launched by OnePlus Featuring and Keychron. An innovative, co-creation platform for OnePlus and its global community, OnePlus Featuring aspires to deliver innovative and premium technology to empower your digital lifestyle.
Page 3 Workspace Minimalism With ever more devices, today’s desks have become cluttered workspaces. This significantly inhibits creativity and productivity. The Keyboard 81 Pro addresses this problem with diﬀerent orientations. Choose from the standard orientation or flip the keyboard upright from the user-facing side. This minimalist design inspires focus so you stay in your creative zone.
Page 4 Powered by Co-Creation We strongly believe in the power of community. We invited OnePlus fans to co-create the keyboard switches with our product manager. After multiple rounds of discussion, we decided on two great choices for our switches: • Summer Breeze (linear switch, Klein Blue) delivers a smooth and consistent keystroke with fast yet near-silent actuation.
Page 5: Materials List
Materials List Keyboard Cable 1x Fully Assembled Keyboard 1x Type-C to Type-C Cable 1x Type-A to Type-C Adapter Including Tools 1x Aluminum Case 1x Switch and Keycap Puller 1x PCB 1x Hex Key 1x PC Plate 1x Sound Absorbing Foam 1x Case Foam 14x Gaskets (10 Installed and 4 in the Box) 4 sets x Stabilizers...
Page 6: Keyboard Guide
Keyboard Guide If you are a Windows user, please use the included keycaps to replace the MacOS ones as indicated.
Page 7 Switch toggle to Bluetooth; Press fn + 1 (hold for 4 seconds) and pair with the Use the included cable to connect the keyboard to your device named ‘Keyboard 81 Pro’. computer. 3. Remapping the keys Please visit caniusevia.com to use the latest VIA firmware to remap the keys (If you are using macOS, please use Google Chrome to visit the link).
Page 8 4. The Layers There are key setting layers on the If your system toggle is switched to Mac, If your system toggle is switched to keyboard. Layers 0 and 1 are for MacOS, then layer 0 will be active. Windows, layer 2 will be active. Note: If layers 2 and 3 are for Windows.
Page 9 6. Adjusting The Backlight Brightness Press fn + W to increase the brightness. Press fn + S to decrease the brightness. 7. Adjusting The Backlight Speed Press fn + T to increase the speed. Press fn + G to decrease the speed.
Page 10: Warranty
8. Warranty We will provide comprehensive warranty services according to local laws and regulations. To protect your legal interests, please read the following notes carefully: • A valid Proof of Purchase shall be issued by the seller at the time of purchase. •...
Page 11 9. Factory Reset Plug in the power cable and switch the toggle to Cable mode. - Factory reset the keyboard by pressing fn + J + Z (hold for 4 seconds). - Download the relevant firmware and QMK Toolbox from our website. - Switch the keyboard to OFF mode and carefully remove the space bar keycap to find the reset button on the PCB.
Page 12 Mode: Bluetooth / Wired Bluetooth operating distance: Within 10 meters (open space) Name of Bluetooth device: Keyboard 81 Pro Operating environment: -10 to 50°C (14 to 122°F) Technical specifications can be subject to change without notice, we apologize for any...
Page 13 OVERVIEW Keyboard 81 Pro Mac mode Windows mode Bluetooth indicator BT OFF Cable (Mode Toggle Switch) Win/Android Mac/iOS (OS Toggle Switch) Charging port...
Page 14 DEFAULT KEY LAYOUT LAYER 0: This layer will be active when the keyboard system toggle is switched to Mac. Mission Launch Control Left Left Right Option Command Command...
Page 15 LAYER 1: This layer will be active when the keyboard system toggle is switched to Mac, and after you press the fn/MO (1) key. BTH1 BTH2 BTH3...
Page 16 LAYER 2: This layer will be active when the keyboard system toggle is switched to Windows. LWin LAlt RAlt RCtl LWin = Left Windows • LAlt = Left Alt • RAlt = Right Alt • RCtl = Right Ctrl...
Page 17 LAYER 3: This layer will be active when the keyboard system toggle is switched to Windows, and after you press the fn/MO (3) key. Task File View Explorer BTH1 BTH2 BTH3...
Page 18: Key Description
KEY DESCRIPTION Key Description Key Description Scr- Screen Brightness Decrease RGBMd+ RGB Mode Next Scr+ Screen Brightness Increase RGBMd- RGB Mode Previous Bright- Backlight Decrease Hue+ Hue Increase Bright+ Backlight Increase Hue- Hue Decrease Prvs Previous RGB Speed Increase RGB SPI Play Play/Pause RGB Speed Decrease...
Page 19: Led Status Overview
LED STATUS OVERVIEW LED Location Function Status Charging - Static Red Battery indicator Charging Fully charged - Static Green Pairing - Slow Blinking Bluetooth indicator Bluetooth Paired - Light Off Reconnecting - Fast Blinking FUNCTION DESCRIPTION: CHARGING Connect the charging cable into a USB port and the keyboard port. Charging indicator: A red light appears during charging;...
Page 20: Wired Mode
3. Hold fn + 1 for 4 seconds to turn on Bluetooth pairing; the Bluetooth indicator will flash for 3 minutes while it detects pairing. 4. Search for the Bluetooth device named “Keyboard 81 Pro” on your device and connect to it; the Bluetooth indicator will change to indicate successful pairing.
Page 21 RECONNECT 1. Switch toggle to Bluetooth. 2. The Bluetooth indicator will flash for 4 seconds, automatically pairing with the last paired device. 3. If pairing fails, press any button to begin the connection process again. *The keyboard must have been previously paired with the device to reconnect. TURN OFF THE KEYBOARD Switch the keyboard to the OFF option.
Page 22: Troubleshooting
TROUBLESHOOTING If pairing with the keyboard is unsuccessful, make sure the device is Bluetooth-capable. If it is, restart the device and try pairing again. Note: On a Windows computer, a new Bluetooth connection sometimes requires an additional software update; this process may continue after a successful pairing message appears.
Page 23 My Keyboard isn’t working For the computer/smartphone: Go to your Bluetooth settings > Select the keyboard and remove/delete/unpair it. Then restart your device. For the keyboard: Turn the keyboard oﬀ and back on. Then reconnect it to your device. Bluetooth connection is interrupted even within 10-meter range. If the keyboard is resting on a metal surface, this can sometimes interfere with the Bluetooth signal.
Page 24 Safety & security information Read all information before using the device to ensure safe and proper use. 1. Please use the device within a temperature range of -10°C~+50°C and store the device and its accessories within a temperature range of -10°C~+50°C. Extremely high or low temperatures may cause malfunction of the device.
Page 25 device usage while driving. 14. Persons with electronic implants (pacemakers, insulin pumps, neurostimulators, etc.) are recommended to place the mobile telephone 15 cm away from the implant or on the opposite side of the implant. 15. Do not leave your device and its accessories within the reach of small children or allow them to play with it.
Page 26 EU/UK Regulatory Conformance RF exposure information RF exposure assessment has been performed below to prove that this unit will not generate the harmful EM emission above the reference level as specified in EC Council Recommenda- tion (1999/519/EC). EU Declaration of Conformity (DoC) Hereby, Shenzhen Bipu Technology Co., Ltd.
Page 27 digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful to part interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
Page 28 ISED Regulatory Conformance ISED Statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.
Page 29: Importer Information
Importer information EU Importer Reflection Investment B.V. Hofplein 20, 3032AC Rotterdam, the Netherlands UK Importer UNUMPLUS LIMITED 7 Albert Buildings, 49 Queen Victoria Street, London, EC4N 4SA, United Kingdom...
Page 30 Shenzhen Bipu Technology Co., Ltd. Building 2, Floor 2, Wenkeng lndustrial Area, Dafa Road No.24, Bantian, Long Gang District, Shenzhen, Guangdong, China Find us at: https://www.facebook.com/keychron/ https://twitter.com/KeychronMK https://www.instagram.com/keychron/ Made in China...
Page 31 OnePlus Featuring are trademarks or registered trademarks of OnePlus Technology (Shenzhen) Co., Ltd. Keychron is a trademark or registered trademark of Shenzhen Bipu Technology Co., Ltd. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by OnePlus is under license.
