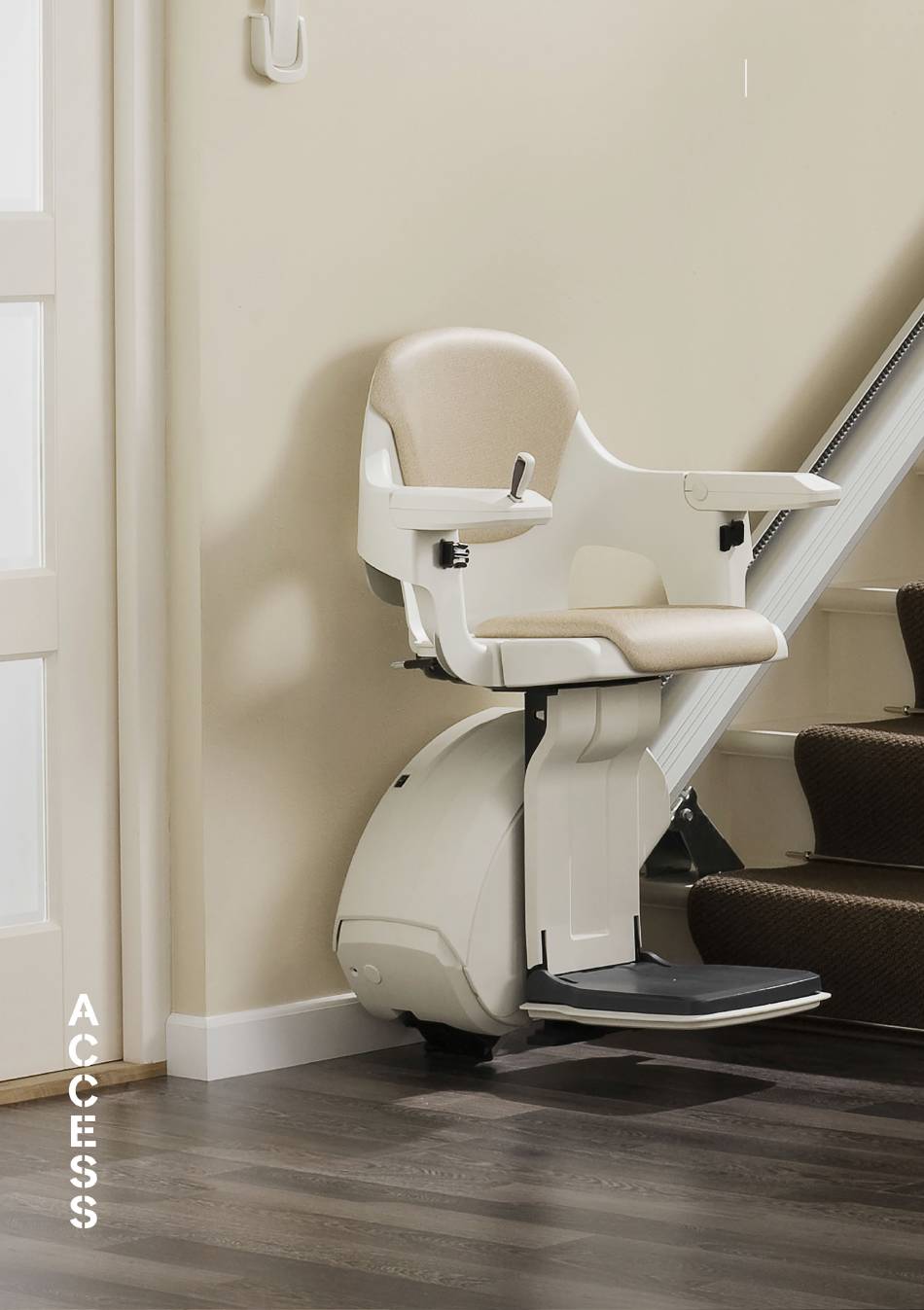

- Page 1 Version 2.2 HomeGlide stairlift - User Manual 2019 HOMEGLiDE STAiRLiFT USER MANUAL...
- Page 2 All rights reserved. Specifications and illustrations are subject to change without prior notice. thyssenkrupp Stairlifts BV will not accept liability for any alteration or typing error. Subject to the exceptions provided by law, this publication and/or its contents may not be, whether entirely or partly, reproduced, copied, and/or published in print, by photocopying, on microfilm, electronically or in any other way without the prior written consent of thyssenkrupp Stairlifts BV.
-
Page 3: Table Of Contents
HomeGlide stairlift - User Manual TABLE OF CONTENTS Introduction _________________________________________________________ 1 Manual ___________________________________________________________________________ 1 Symbols __________________________________________________________________________ 1 Intended use ______________________________________________________________________ 1 Safety _______________________________________________________________ 2 Safety warnings ___________________________________________________________________ 2 Description __________________________________________________________4 Stairlift __________________________________________________________________________ 4 Controls __________________________________________________________________________ 5 Swivel seat _______________________________________________________________________ 8... -
Page 5: Introduction
HomeGlide stairlift - User Manual 1 INTRODUCTiON 1.1 MANUAL The manual describes all equipment that is available for the HomeGlide stairlift. Not all features may be available for the model installed in your home. Illustrations may differ from the model installed in your home. -
Page 6: Safety
HomeGlide stairlift - User Manual 2 SAFETY 2.1 SAFETY WARNiNGS thyssenkrupp Stairlifts BV is not responsible for injury or damage caused by not obeying the safety warnings in the manual. 2.1.1 User Before you use the stairlift, read the manual carefully. Only use the stairlift if you know and understand the safety warnings and the operating instructions. - Page 7 HomeGlide stairlift - User Manual Do not get off the stairlift on the stairs, not even in case of a breakdown. Only get off the stairlift at floor positions. Carefully fold or unfold any parts of the stairlift. Do not physically force the stairlift to start moving.
-
Page 8: Description
HomeGlide stairlift - User Manual 3 DESCRiPTiON 3.1 STAiRLiFT LEV0007 Seat Backrest Armrest Armrest control unit (Refer to section 3.2.1“Armrest control unit”) Footrest Safety belt Motor housing Data plate Warning plate Main switch (Refer to section 3.2.3“Main switch”) -
Page 9: Controls
HomeGlide stairlift - User Manual 3.2 CONTROLS 3.2.1 Armrest control unit Use the armrest control unit to move the stairlift while you are seated in the chair. The armrest control unit is mounted on the armrest that is closest to the bottom of the stairs. - Page 10 HomeGlide stairlift - User Manual 3.2.1.2 HomeGlide Outdoor 12. Key switch 13. Key 14. Joystick Insert the key into the key switch. Switch on the stairlift using the key switch. Push and hold the joystick to the left or to the right to move the stairlift.
- Page 11 HomeGlide stairlift - User Manual 3.2.2 Call-and-send controls Use the call-and-park stations to move the stairlift while you are not seated in the chair. The call-and-park stations are located at the top and the bottom of the stairs. As an option, the call-and-park stations can also be located at intermediate floors with a parking point.
-
Page 12: Swivel Seat
HomeGlide stairlift - User Manual 3.3 SWiVEL SEAT 3.3.1 Manual swivel seat (HomeGlide Standard / HomeGlide Extra / HomeGlide Outdoor) Before you sit down or stand up, you can turn the chair to face the landing at the top floor level. -
Page 13: Optional Features
HomeGlide stairlift - User Manual 3.4 OPTiONAL FEATURES 3.4.1 Hinged rail The hinged rail is a section of the rail at the bottom of the staircase that will automatically lower and raise when the stairlift is operated. The hinged rail is a useful feature in situations where there is an obstruction (doorways) or where the protrusion of the foot of the rail can cause a tripping hazard (passageways). - Page 14 HomeGlide stairlift - User Manual 3.4.2 Extra parking point The stairlift can be equipped with an extra parking point. If the stairlift reaches the extra parking point, it will come to a momentary standstill. Keep the joystick pushed until the stairlift starts moving again automatically.
-
Page 15: Use
HomeGlide stairlift - User Manual 4 USE LEV00017 4.1 UNFOLDiNG THE SEAT AND SiTTiNG DOWN Not applicable for HomeGlide Extra. For HomeGlide Extra, the footrest is unfolded automatically when you unfold the seat. LEV00021... -
Page 16: Travelling With The Stairlift
HomeGlide stairlift - User Manual 4.2 TRAVELLiNG WiTH THE STAiRLiFT CAUTION HomeGlide Standard / HomeGlide Extra: Do not remove the joystick from the armrest control unit for normal use. Only remove the joystick from the armrest control unit in case of an emergency or to switch off the stairlift in order to prevent unauthorized use. -
Page 17: Standing Up And Folding The Seat
HomeGlide stairlift - User Manual 4.4 STANDiNG UP AND FOLDiNG THE SEAT Not applicable for HomeGlide Extra. For HomeGlide Extra, the footrest is folded automatically when you fold the seat. LEV00025... -
Page 18: Maintenance
HomeGlide stairlift - User Manual 5 MAiNTENANCE 5.1 CLEANiNG THE STAiRLiFT Regularly clean the stairlift – seat, backrest, armrest, footrest, safety belt, motor housing – with a soft, damp cloth. If necessary, use a mild detergent. Keep the armrest control unit and the call-and-send controls free of dirt. -
Page 19: Signals
HomeGlide stairlift - User Manual 6 SiGNALS 6.1 SiGNALS ON ARMREST CONTROL UNiT Signal Meaning Action Fast intermittent beeps The stairlift has Move the stairlift in the encountered an obstacle and opposite direction to a has stopped. parking point. Before you... -
Page 20: Technical Data
HomeGlide stairlift - User Manual 7 TECHNiCAL DATA Maximum permitted weight 145 kg @ max 45 ° rail - indoor only 125 kg @ max 53 ° rail Driving speed (nominal) 0.12 m/s (23.6 ft/min) Sound pressure level 67 dB(A) - Page 21 HomeGlide stairlift - User Manual Environmental conditions Ambient temperature Indoor: 5 - 40 °C (41 - 104 °F) Outdoor: -10 - 60 °C (14 - 140 °F) Relative humidity Indoor: 20 - 80% Outdoor: 0 - 100% Batteries (chairlift) Battery type...
-
Page 22: Ec Declaration Of Conformity
HomeGlide stairlift - User Manual 8 EC DECLARATiON OF CONFORMiTY... -
Page 23: Contact
HomeGlide stairlift - User Manual 9 CONTACT For information which is not in the manual, contact your dealer. Phone number: To support you as quickly as possible, please have the below details available when you contact our service department staff:...
