PROCET PT-PEX02GB User Manual

ＰＴ－ＰＥX02ＧＢ ＰｏＥ Ｅｘｔｅｎｄｅｒ
Ｕｓｅｒ Ｍａｎｕａｌ
WWW.PROCETPOE.COM
Ｏｖｅｒｖｉｅｗ
ＰＴ－ＰＥＸ０２ＧＢ ｉｓ ａｎ ｉｎｄｕｓｔｒｉａｌ－ｒａｔｅｄ ＰｏＥ Ｅｘｔｅｎｄｅｒ ｗｉｔｈ ｔｗｏ ＰｏＥ ｏｕｔｐｕｔ ｐｏｒｔｓ， ｓｐｅｃｉａｌｌｙ ｄｅｓｉｇｎｅｄ ｆｏｒ
ｃｏｍｐｌｅｘ ｂａｃｋｈａｕｌ ａｎｄ ｎｅｔｗｏｒｋｉｎｇ ａｐｐｌｉｃａｔｉｏｎｓ． Ｅｎｃｌｏｓｅｄ ｉｎ ａ ｈｉｇｈ－ｉｍｐａｃｔ ｍｅｔａｌ ｓｈｅｌｌ． Ｔｈｅ ３
ｐｏｒｔｓ １０／１００／１０００Ｍｂｐｓ ｉｎｃｌｕｄｅｓ： １ ｘ ＰｏＥ－ｐｏｗｅｒｅｄ ｉｎｐｕｔ ｐｏｒｔ ｗｉｔｈ ８０２．３ｂｔ／ＰｏＥ＋＋ ａｔ ６０Ｗ ｏｒ
ｈｉｇｈｅｒ ｏｆ ９５Ｗ（Ｍａｘ） ａｎｄ ２ ｘ ＰｏＥ ｏｕｔｐｕｔ ｐｏｒｔｓ ｗｉｔｈ ６ＫＶ （１０／７００ｕｓ） ｓｕｒｇｅ ｐｒｏｔｅｃｔｉｏｎ． Ｅａｃｈ ｏｕｔｐｕｔ
ｐｏｒｔ ｄｅｌｉｖｅｒｓ ３０Ｗ（Ｍａｘ） ｐｏｗｅｒ ｆｏｒ ｒｅｍｏｔｅ ｔｗｏ ＰＤｓ， ｔｏｔａｌｉｎｇ ｕｐ ｔｏ ６０Ｗ．
PoE Input port requiring more power which is powered by ultra 802.3bt PoE++ works with an
input voltage of 44- 57Vdc and operates under -40℃ ｔｏ ＋６５℃. Equipped detecting chip inside
which will make the PoE identification handshake with IEEE802.3af/at/PoE+ PDs, such as wireless
APs, IP cameras, base stations, Microwave radio, and other PoE power Ethernet backhaul devices.
For planning purposes, the total effective distance from Ultra PoE to PDs is 200 meters over
CAT5e/CAT6 cables without local power.
Appearance
PoE IN
PoE � PoE �

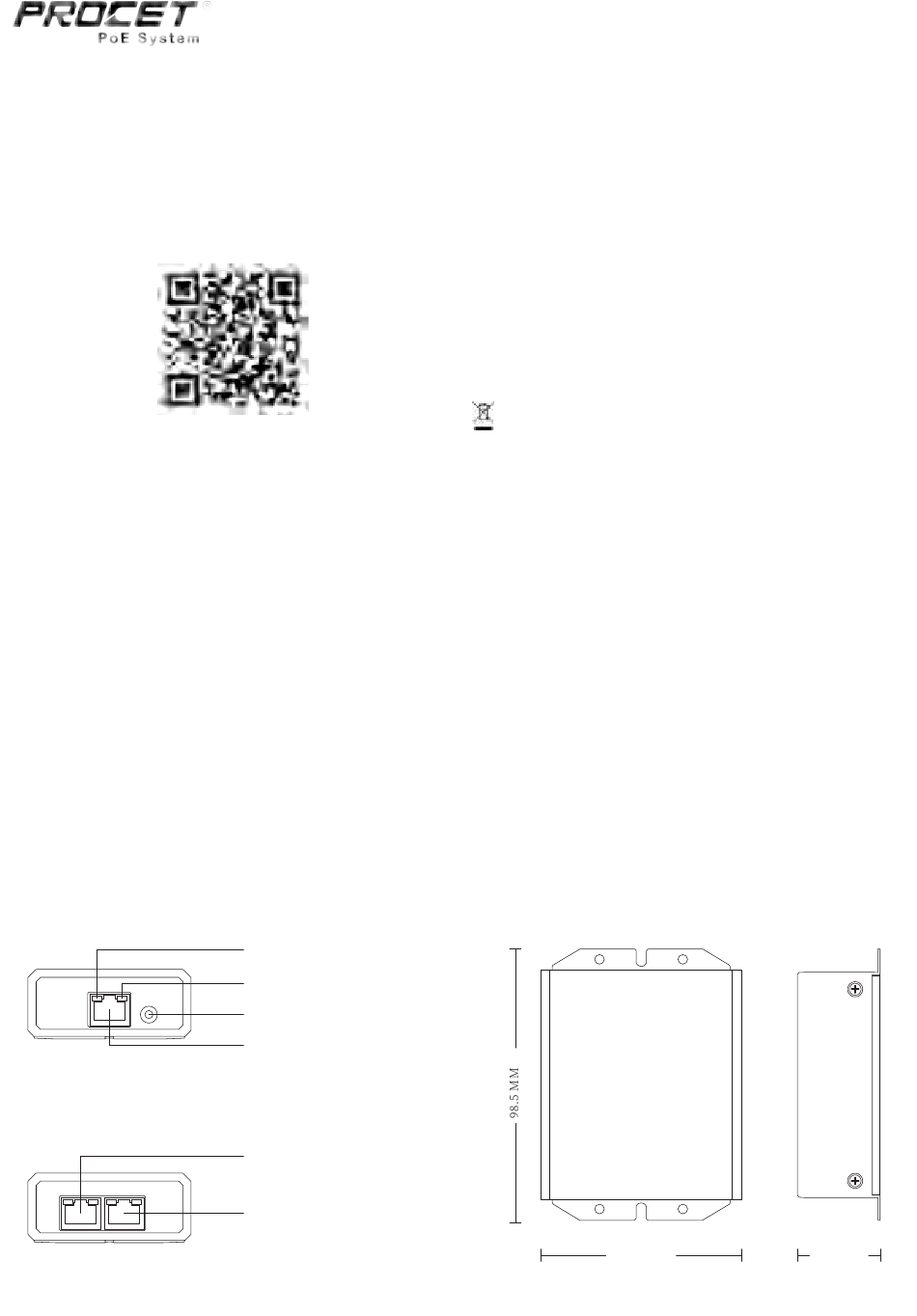

1 Ｐｒｏｄｕｃｔ Diagram
1
2
1.ＲＪ45 Ｄａｔａ Ｉｎｄｉｃａｔｏｒ
Solid light: Connected
３
Flashing light: Data Transmission
４
Light off: Abnormal Connection
2．ＲＪ45 Power Indicator
Solid light: Connected
Light off: Abnormal Connection
3．GND Terminal
4．ＰｏＥ Input Port
�
5．ＰｏＥ Output Port1
6．PoE Output Port2
�
Ｄｅｃｌａｒａｔｉｏｎ
Copyright ©2022Creative Lianjie Network
Technology Co.Ltd
Ｔｈｉｓ ｄｏｃｕｍｅｎｔ ｂｅｌｏｎｇｓ ｔｏ ＰＲＯＣＥＴ ｃｏｍｐａｎｙ． Ｉｔ ｉｓ ｎｏｔ
ａｌｌｏｗｅｄ ｔｏ ｒｅｐｒｏｄｕｃｅ ａｎｄ ｍｏｄｉｆｙ ｗｉｔｈｏｕｔ ｔｈｅ ｏｒｉｇｉｎａｌ
ａｕｔｈｏｒ＇ｓ ｐｅｒｍｉｓｓｉｏｎ． Ｉｔ ｉｓ ＰＲＯＣＥＴ＇ｓ ｐｏｌｉｃｙ ｔｏ ｉｍｐｒｏｖｅ
ｉｔｓ ｐｒｏｄｕｃｔｓ ａｓ ｎｅｗ ｔｅｃｈｎｏｌｏｇｙ， ｃｏｍｐｏｎｅｎｔｓ， ｓｏｆｔｗａｒｅ ，
ａｎｄｆｉｒｍｗａｒｅ ａｔ ａｎｙ ｔｉｍｅ． ＰＲＯＣＥＴ， ｔｈｅｒｅｆｏｒｅ， ｒｅｓｅｒｖｅｓ
ｔｈｅ ｒｉｇｈｔ ｔｏ ｃｈａｎｇｅ ｓｐｅｃｉｆｉｃａｔｉｏｎｓ ｗｉｔｈｏｕｔ ｐｒｉｏｒ ｎｏｔｉｃｅ．
Please follow WEEE (Waste Electrical and Electronic
Equipment) disposal instructions for old electronic
products.
Please do not dispose of the old product in your
general household waste bin.
The symbol indicates that the product should not
be discarded as unsorted waste but must be sent to
separate collection facilities for recovery and recycling.
��.�� MM
２ Ｄｉｍｅｎｓｔｉｏｎ Ｄｉａｇｒａｍ
All rights reserved.
��.� MM
