Summary of Contents for Kingfisher MPS750S-2

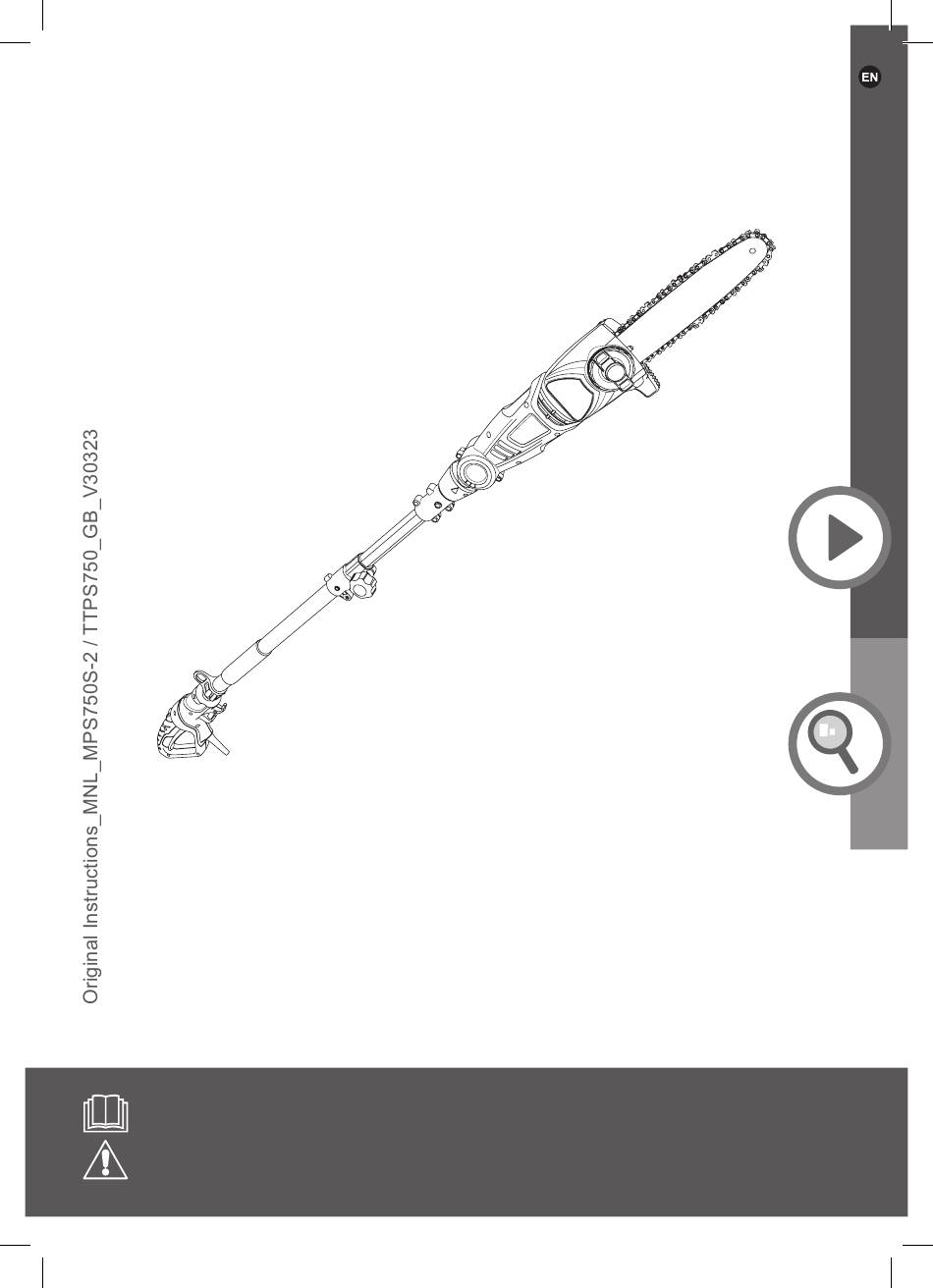

- Page 1 Pole Saw 750W ORIGINAL INSTRUCTIONS MPS750S-2 EAN: 3663602627661 / 3663602627685 TTPS750 EAN: 5063022106032 / 5063022106384 MAND1_2223 WARNING: Read the instructions before using the product! 3663602627661_MNL_IN_V02.indd 1 3663602627661_MNL_IN_V02.indd 1 17-03-2023 16:52:44 17-03-2023 16:52:44...
- Page 2 MPS750S-2 / TTPS750 Let’s get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. started... Getting Safety information Your product Before start detail... more Product functions Operation Care maintenance...
-
Page 3: General Power Tool Safety Warnings
Safety information MPS750S-2 / TTPS750 Safety warnings READ CAREFULLY BEFORE USE. IMPORTANT KEEP FOR FUTURE REFERENCE. General Power Tool Safety Warnings WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/ or serious injury. -
Page 4: Personal Safety
Safety information MPS750S-2 / TTPS750 Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. Do not expose power tools to rain or wet conditions. - Page 5 Safety information MPS750S-2 / TTPS750 Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non- skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/ or battery pack, picking up or carrying the tool.
- Page 6 Safety information MPS750S-2 / TTPS750 Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. Disconnect the plug from the power source and I or the...
-
Page 7: Pruner Safety Warnings
Safety information MPS750S-2 / TTPS750 Service Have your power tools serviced by a qualified repair person using only identical replacement parts. This will ensure that safety of the power tool is maintained. Pruner safety warnings Interrupt your work when you feel tired or exhausted. - Page 8 Safety information MPS750S-2 / TTPS750 Always hold the product with both hands on the handle and soft grip. Holding the product with only one hand or on parts not intended for that increases the risk of personal injury and should never be done.
- Page 9 Safety information MPS750S-2 / TTPS750 13. Follow instructions for lubricating, chain tensioning and changing accessories. Improperly tensioned or lubricated chain may either break or increase the chance for kickback. 14. Keep handles dry, clean, and free from oil and grease.
-
Page 10: Causes And Operator Prevention Of Kickback
Safety information MPS750S-2 / TTPS750 Causes and operator prevention of kickback Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut. -
Page 11: Vibration And Noise Reduction
Safety information MPS750S-2 / TTPS750 Follow the manufacturer’s sharpening and maintenance instructions for the saw chain.Decreasing the depth gauge height can lead to increased kickback. Vibration and noise reduction To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low- noise operating modes as well as wear personal protective equipment. -
Page 12: Residual Risks
Safety information MPS750S-2 / TTPS750 Emergency Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety directions and follow them to the letter. This will help to prevent risks and hazards. Always be alert when using this product, so that you can recognise and handle risks early. - Page 13 Safety information MPS750S-2 / TTPS750 Prolonged use of this product expose the operator to vibrations and may produce ‘whitefinger’ disease. In order to reduce the risk, please wear gloves and keep your hands warm. If any of the ‘whitefinger’ symptoms appear, seek medical advice immediately ‘Whitefinger’...
-
Page 14: Safety Information
Safety information MPS750S-2 / TTPS750 Wear hearing protection! Wear eye protection! Wear respiratory protection! Wear protective gloves! Wear slip-resistant, sturdy footwear! Wear safety helmet! Wear face protection! Wear tight-fitted protective clothes. Warning! Danger from overhead electric-power lines! Keep at least 10 m distance. - Page 15 The product complies with the applicable Your product European directives and an evaluation method of conformity for these directives was done. UK Conformity Assessed. MPS750S-2 / TTPS750 (M_Brand Name; PS_Pole Saw) 3663602627661_MNL_IN_V02.indd 15 3663602627661_MNL_IN_V02.indd 15 17-03-2023 16:52:47 17-03-2023 16:52:47...
-
Page 16: Your Product
Your product MPS750S-2 / TTPS750 Your product 1. Rear handle 7. Power cord with plug 2. Lock-off button 8. On/off switch 3. Loop 9. Gripping surface 4. Loop retainer 10. Hex key 4mm 5. Cable strain relief 11. Angle adjusting button 6. -
Page 17: You Will Need
Your product / Before you start MPS750S-2 / TTPS750 13. Guide bar 23. Locking knob 14. Saw chain 24. Pole 15. Sprocket wheel 25. Oiling port 16. Oil level window 26. Mounting bolt 17. Oil tank cap 27. Anti-slip serration 18. -
Page 18: Before You Start
Before you start MPS750S-2 / TTPS750 Motor unit assembly 1. Place the product (the rear part) and motor unit on a flat stable surface with the side cover (12) facing upwards. 2. Turn the pre-assembled screw anticlockwise by using the hex key (10), and remove it together with the nut, keep them on hand. - Page 19 Before you start MPS750S-2 / TTPS750 4. Align the pole extension (22) to the motor unit and insert it all the way to the stop. Secure the connection with the screw and nut. (Fig. 3) The pre- assembled screw & nut Fig.
- Page 20 Before you start MPS750S-2 / TTPS750 Fig. 5 4. Spread the saw chain (14) out with the cutting edges of the chain pointing in the direction of rotation. Slide the saw chain (14) into the groove around the guide bar (13). Ensure saw chain (14) is installed in correct direction of rotation.
- Page 21 Before you start MPS750S-2 / TTPS750 Fig. 7 6. The saw chain movement is as indicated by the arrow (Fig.8). Make sure the saw chain (14) is properly placed over the sprocket wheel (15) of the guide bar (13). (Fig.8) Fig.
- Page 22 Before you start MPS750S-2 / TTPS750 Two marks be aligned Fig. 9 Fig. 10 8. Refit the cover (12), fit the rear of cover then front, ensure pin is located in position. Slightly tighten the locking wheel (19) (Fig. 10). Do not tighten the locking wheel (19) completely, saw chain tensioning is required first.
- Page 23 Before you start MPS750S-2 / TTPS750 WARNING! Disconnect the product from the power supply before adjusting saw chain tension! The cutting edges of the saw chain are sharp! Always wear protective gloves when handling chain! Always maintain proper chain tension! A loose chain increases the risk of...
-
Page 24: Chain Lubrication
Before you start MPS750S-2 / TTPS750 5. Pull the saw chain (14) along the top of the guide bar (13) by gloved hand from one end to the other, several times. The saw chain (14) should feel tight but still move freely. - Page 25 Before you start MPS750S-2 / TTPS750 5 mm Fig. 14 NOTE: Towards the end of the season, it is advisable to put only as much lubricant in the tank as you need for each cut, so that it is completely used up before you store the product.
- Page 26 Before you start MPS750S-2 / TTPS750 Harness The harness (29) helps the operator carry this product. WARNING! Always attach the product to the harness. Do not carry it only with your hands! 1. Attach the clip (29a) of the harness (29) to the loop (3) on the pole (24) (Fig. 17).
- Page 27 Before you start MPS750S-2 / TTPS750 Connection to the power supply (for UK only) WARNING! Always use a residual current supply (RCD) protected supply. If an extension cord is used, make sure the extension cord is specifically designed for outdoor use and not lighter than H05VV-F or H05RN-F, 2 x 1.0mm max 75m.
- Page 28 Before you start MPS750S-2 / TTPS750 3. Connect the power cord (7) to the socket of the extension cord. (Fig. 22) Fig. 22 4. Make sure not to press the on/off switch (8). 5. Connect the plug of the extension cord to a suitable power source.
- Page 29 MPS750S-2 / TTPS750 more detail... Product functions Operation Care maintenance Troubleshooting Recycling disposal Technical specifications Guarantee Declaration conformity 3663602627661_MNL_IN_V02.indd 29 3663602627661_MNL_IN_V02.indd 29 17-03-2023 16:52:51 17-03-2023 16:52:51...
-
Page 30: Intended Use
MPS750S-2 / TTPS750 Intended use This pole saw MPS750S-2 / TTPS750 is designated with a rated input of 750 Watts. The product is intended for cutting limbs with a thickness of max. 180 mm. It must not be used for cutting other materials, such as plastic, stone, metal or wood that contains foreign objects. - Page 31 Product functions MPS750S-2 / TTPS750 Fig. 24 4. Release the on/off switch (8) to switch the product off. WARNING! The product will continue to work for some time even after the motor has been switched off! Wait until it comes to a complete stop before...
-
Page 32: General Operation
Product functions / Operation MPS750S-2 / TTPS750 Saw chain stop test NOTE: Perform the following test before operating your product. 1. Hold the gripping surface (9) with the left hand, the rear handle (1) with your right hand. 2. Ensure the saw chain (14) does not come into contact anything when switching on. -
Page 33: Operation
Operation MPS750S-2 / TTPS750 WARNING! In some countries regulations define at what time of the day and on what special days products are allowed to be used and what restrictions apply! Ask your community for detailed information and observe the regulations in... - Page 34 Operation MPS750S-2 / TTPS750 Pruning Fig. 27 Fig. 28 1. Always hold the product firmly with both hands on gripping surface (9) and rear handle (1). Never operate this product using only one hand (Fig. 27). 2. Maintain a firm grip with your thumbs and fingers encircling the handles. A firm grip will help you reduce ‘kickback’...
- Page 35 Operation MPS750S-2 / TTPS750 WARNING! Never climb into a tree to prune! Do not stand on ladders, platforms, logs, or in any position which may cause you to lose your balance or control of the product! When pruning trees, it is important not to make the flush cut next...
- Page 36 Operation MPS750S-2 / TTPS750 Thin branches Thin branches can be cut off with one single cut. To prevent the branch from slivering and buckling the branch should be cut off in several pieces (Fig. 33). Fig. 33 Thick branches When cutting off larger branches three cuts are necessary.
-
Page 37: After Use
Operation / Care and maintenance MPS750S-2 / TTPS750 After use 1. Switch the product off, disconnect it from the power supply and let it cool down. 2. Check, clean and store the product as described below. The golden rules for care... -
Page 38: Care And Maintenance
Care and maintenance MPS750S-2 / TTPS750 Sprocket wheel NOTE: It is not necessary to remove the saw chain (14) to lubricate the sprocket wheel. Lubrication can be done on the job. 1. Clean the sprocket wheel (15). 2. Using a disposable lube gun, insert the needle nose into the lubrication hole (Fig. 37, A) and inject grease until it appears at the outside edge of the sprocket (15) (Fig. - Page 39 Care and maintenance MPS750S-2 / TTPS750 Fig. 38 NOTE: The condition of the oil passages can be easily checked. If the passages are clear, the chain will automatically give off a spray of oil within seconds of the product starting. Your product is equipped with an automatic oiling system.
- Page 40 Care and maintenance MPS750S-2 / TTPS750 Fig. 40 6. Check the saw chain for possible wear and damages. Replace it with a new one if required. Experienced user can sharpen a dull saw chain (see section “Saw chain sharpening” below).
- Page 41 Care and maintenance MPS750S-2 / TTPS750 Right-hand Left-hand cutter cutter Bumber tie strap Bumber drive link Tie strap Saw chain direction Fig. 41 3. To sharpen the chain proceed as follows: • Use protective gloves. • Ensure the chain is correctly tensioned.
-
Page 42: Power Cord
Care and maintenance MPS750S-2 / TTPS750 6. File each tooth from the inside towards outside only. File one side of the chain first than turn the saw around and repeat the process. 7. Sharpen each tooth equally by using the same number of strokes. - Page 43 Care and maintenance MPS750S-2 / TTPS750 Plug replacement (for UK only) If you need to replace the fitted plug, then follow the instructions below. IMPORTANT: The wires in the mains lead are coloured in accordance with the following code: Blue - Neutral Brown - Live As the colours of the wire in the mains lead of this product may not correspond with the coloured marking identifying the terminals in your plug, proceed as follows.
-
Page 44: Care And Maintenance / Troubleshooting
Care and maintenance / Troubleshooting MPS750S-2 / TTPS750 3. Always store the product in a place that is inaccessible to children. The ideal storage temperature is between 10 and 30°C. 4. We recommend using the suitable package for storage or covering the product with a suitable cloth or enclosure to protect it against dust. -
Page 45: Recycling And Disposal
Troubleshooting / Recycling and disposal MPS750S-2 / TTPS750 Problem Possible cause Solution 2. Product does 2.1. Extension cord not 2.1. Use a proper extension not reach full suitable for operation with cord power this product 2.2. Power source (e.g. 2.2. Connect to another power... -
Page 46: Technical Specifications
Technical specifications MPS750S-2 / TTPS750 Technical specifications General > Rated voltage : 220 - 240 V~, 50 Hz > Rated input : 750 W > Rated no load speed n : 5000 min > Cutting angel : 3 settings, 0°-20°-40°... - Page 47 Technical specifications / Guarantee MPS750S-2 / TTPS750 Wear hearing protection, especially when sound pressure is over 80 dB(A). The declared vibration value has been measured in accordance with a standard test method and may be used for comparing one product with another. The declared vibration value may also be used to evaluate the exposure for the user caused by vibration in advance.
- Page 48 Guarantee MPS750S-2 • Damage caused by foreign objects, substances or accidents • Accidental damage or modification • Failure to follow manufacturer’s guidelines • Loss of use of the goods If this product is defective, we will, within a reasonable time, repair, replace or provide spare parts.
- Page 49 Customer care and technical helpline A better way to repair your tools Kingfisher takes special care in creating high-quality garden power tools that are designed to last. But if a fault develops with your garden power tool and you need to claim under...
-
Page 50: Availability Of Spare Parts
Availability of Spare Parts MPS750S-2 / TTPS750 Availability of spare parts Contact the customer service helpline for assistance or visit www.kingfisherspares.com For assistance contact the customer services helpline: UK 0800 0789647 uk@Kingfisherservice.com EIRE 1800 932226 eire@kingfisherservice.com Further information about this product can also be found at: www.kingfisher.com/products... - Page 51 Manufacturer: UK Manufacturer: Kingfisher International Products Limited 1 Paddington Square, London, W2 1GG, United Kingdom EU Manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.diy.com www.screwfix.com www.screwfix.ie To view instruction manuals online, visit www.kingfisher.com/products 3663602627661_MNL_IN_V02.indd 51 3663602627661_MNL_IN_V02.indd 51...
