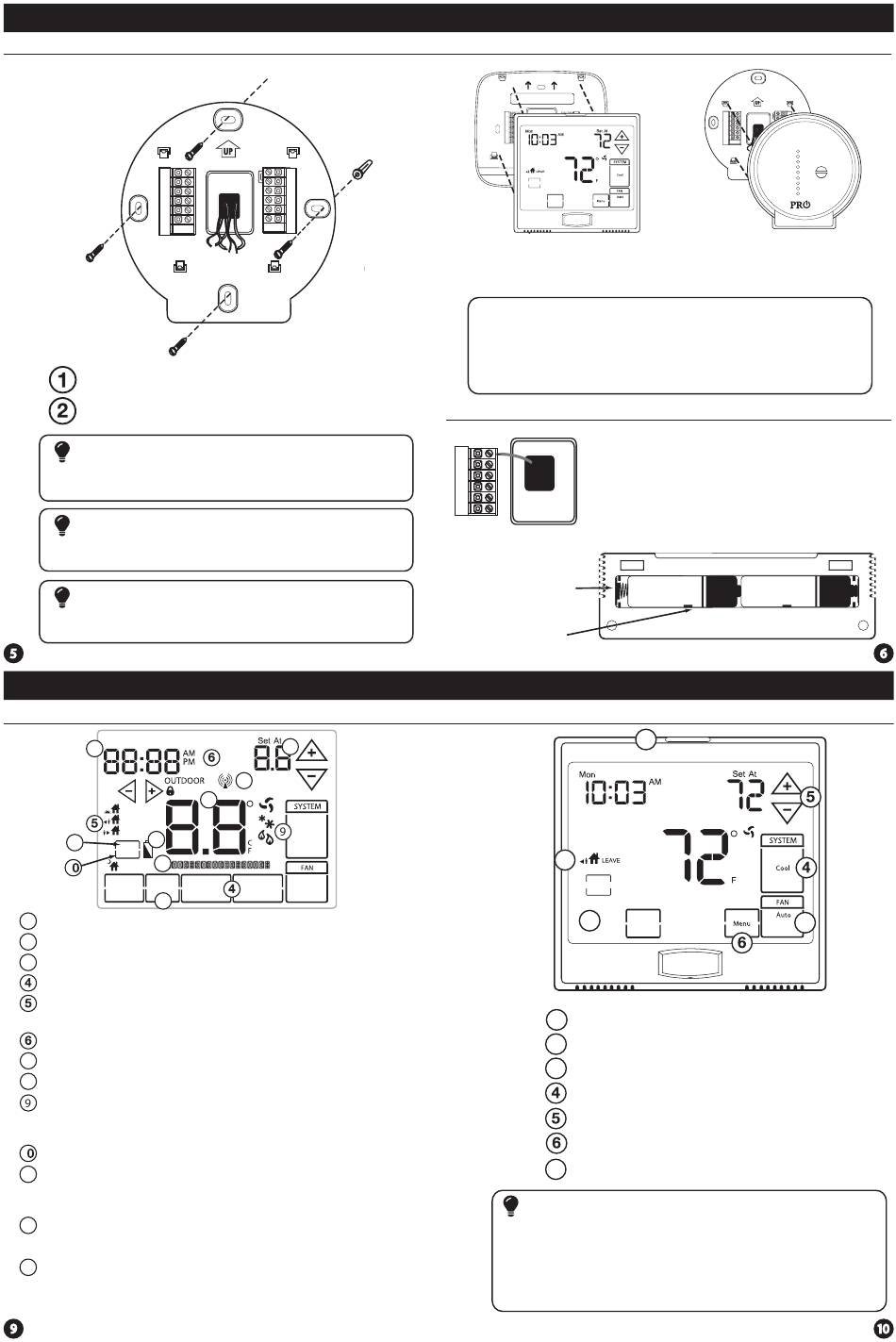

Installation Tips

Base Module Subbase installation
Horizontal Mount
Vertical Mount
Wiring Note
Wire the base module's subbase the same way you would wire a
hardwired thermostat subase.
Note:
To connect the base module to the master thermostat, refer to the
directions on page 13 of this manual.
Note:
The base module must be hardwired (C and R terminals connected to
24V power.)

Thermostat Quick Reference

Getting to know your thermostat
Mon Tue Wed Thu Fri Sat Sun
2
WAKE
LEAVE
RETURN
3
11
Clean
Display
Humidity
13
1
SLEEP
Technician Set Time
Setup Next Zone
Next Step
12
1
Indicates the current room temperature
2 Time and day of the week
3 Low Battery Indicator: Replace batterieswhen this indicator is shown.
Program Menu Options: Show different options during programming.
Period Icons - This thermostat can have 2 or 4 programmable time periods
per day. Icons are displayed for 4 time periods. Occupied and unoccupied
will display in the text field for 2 time periods.
REMOTE indicates a remote has control of the system.
7
HOLD is displayed when thermostat program is permanently overriden.
8
Setpoint: Displays the user selectable setpoint temperature
System Operation Indicators: The COOL, HEAT or FAN icon will display
when the COOL, HEAT or FAN is on. NOTE: The compressor delay feature is
active if these icons are flashing. The compressor will not turn on until the 5
minute delay has elapsed.
1 Humidity: Shows the humidity target setpoint settings and keys.
11
Clean Display: Pressing CLEAN DISPLAY will allow 30 seconds to clean the
display. The keys will be inoperable during this time. CLEAN will appear if
your contractor has programmed a filter change reminder. Press CLEAN
when filter has been replaced to reset the filter change reminder timer.
12
Next Zone: This button will appear if optional indoor remotes are
present. By selecting NEXT ZONE you can cycle through each of the zones
set up during the initial installation.
13 System Information: Shows which zone or zones are controlling your
system. Shown only when one or more indoor sensors are connected.
For horizontal mount put one screw on
the left and one screw on the right.
For vertical mount put one screw on
the top and one screw on the bottom.
8
REMOTE
HOLD
F C
7
1
Heat
Off
Cool
Auto
+1 +2 Em. Heat
Set Schedule Run Schedule
Auto
Hold Menu
On
Previous Step Done
Installation Tips
Mount Thermostat and Base Module
Temperature
Clean
Display
Humidity
Set Time
Next Zone
Align the 4 tabs on the subbase with corresponding slots on
the back of the thermostat/base module, then push gently until
it snaps in place.
Note: To ensure a solid fit between the thermostat/base module
and the subbase:
1. Mount subbase to a flat wall
2. Use screws provided
3. Drywall anchors should be flush with the wall
4. Wires should be pushed into the wall
Battery Installation
Battery installation is optional if there are no remotes
connected to the Master Thermostat (C terminal con-
nected). If you connect an outdoor remote and/or
indoor remote sensors it is required the
thermostat be hardwired.
Important:
recommended. Rechargeable batteries or low quality
batteries do not guarantee a 1-year life span.
Insert 2 AA Alkaline
batteries (included). High
quality alkaline batteries
are recommended.
On the back of the
thermostat insert 2
AA Alkaline batteries
(included).
Thermostat Quick Reference
Getting to know your thermostat
7
Clean
Display
Humidity
1
1
LCD Display
2
Glow in the dark light button
3
Fan key
System key
Setpoint keys
Menu key
7
Scheduled time period Icons
Important
The low battery indicator is displayed when the AA battery power is low. If the user
fails to replace the battery within 21 days, the screen will only show the low battery
indicator but maintain all functionality. If the user fails to replace the batteries after
an additional 21 days (days 22-42 since first "low battery" display) the setpoints will
change to 55˚F (Heating) and 85˚F (Cooling). If the user adjusts the setpoint away from
either of these, it will hold for 4 hours then return to either 55˚F or 85˚F. After day 63
the batteries must be replaced immediately to avoid freezing or overheating because
the thermostat will shut the unit off until the batteries are changed.
Pro1 Base Module
for use with T955WH
High quality alkaline batteries are
2
Temperature
Set Time
Next Zone
H
D
Y1
Y2
W1/E
W2
G
O
B
3
