Installation Manual
Pro1 Technologies
P.O. Box 3377
Springfield, MO 65808-3377
Toll Free: 888-776-1427
Web: www.pro1iaq.com
Hours of Operation: M-F 9AM - 6PM Eastern
Thermostat Application Guide
Description
Gas or Oil Heat
Electric Furnace
Heat Pump (No Aux. or Emergency Heat)
Heat Pump (With Aux. or Emergency Heat)
Multi-Stage Systems
Heat Only Systems
Cool Only Systems
Millivolt
Humidity
Dual Fuel

Table of Contents

Wireless Type Selection
U.S. Registered Trademark. Patents pending
Copyright
2018 All Rights Reserved.
Installation Tips
Wall Locations
The thermostat should be installed approximately 4 to 5 feet above the
floor. Select an area with average temperature and good air circulation.
Do not install thermostat in these locations:
• Close to hot or cold air ducts
• That are in direct sunlight
• With an outside wall behind the thermostat
• In areas that do not require conditioning
• Where there are dead spots or drafts (in corners or behind doors)
• Where there might be concealed chimneys or pipes
Installation Tip
Pick an installation location that is easy for the user to access. The temperature
of the location should be representative of the building.

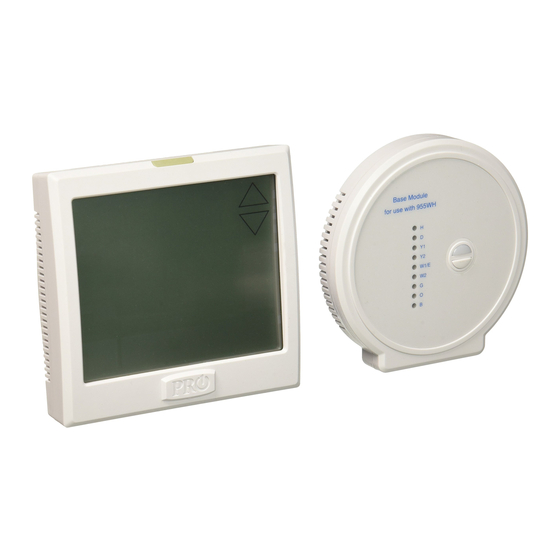

T955WH
Power Type
Battery Power*
Hardwire (Common Wire)
Yes
Hardwire (Common Wire) with
Yes
Battery Backup
Yes
Yes
Yes
A trained, experienced
Yes
technician must install this
Yes
product.
No
Carefully read these
Yes
instructions. You could damage
Yes
this product or cause a
hazardous condition if you fail
Page
to follow these instructions.
2
3-8
Una version en español de este
9-10
manual se puede descargar en
11
la pagina web de la compañia.
12
13
* If you are using remote
14-18
sensors the thermostat
19-28
must be hardwired.
29
30-38
39
Wireless Type Selection
The thermostat and base module contain selectable wireless
communication options. Each component has a jumper switch label
FSK and ASK. Default setting: FSK.
• All components must be set to the same position for wireless
communication.
• Both modes utilize a 916 MHz frequency.
• FSK: frequency-shift keying, is the recommended mode.
• ASK: amplitude-shift keying, should be selected when using
components that can not communicate with FSK.

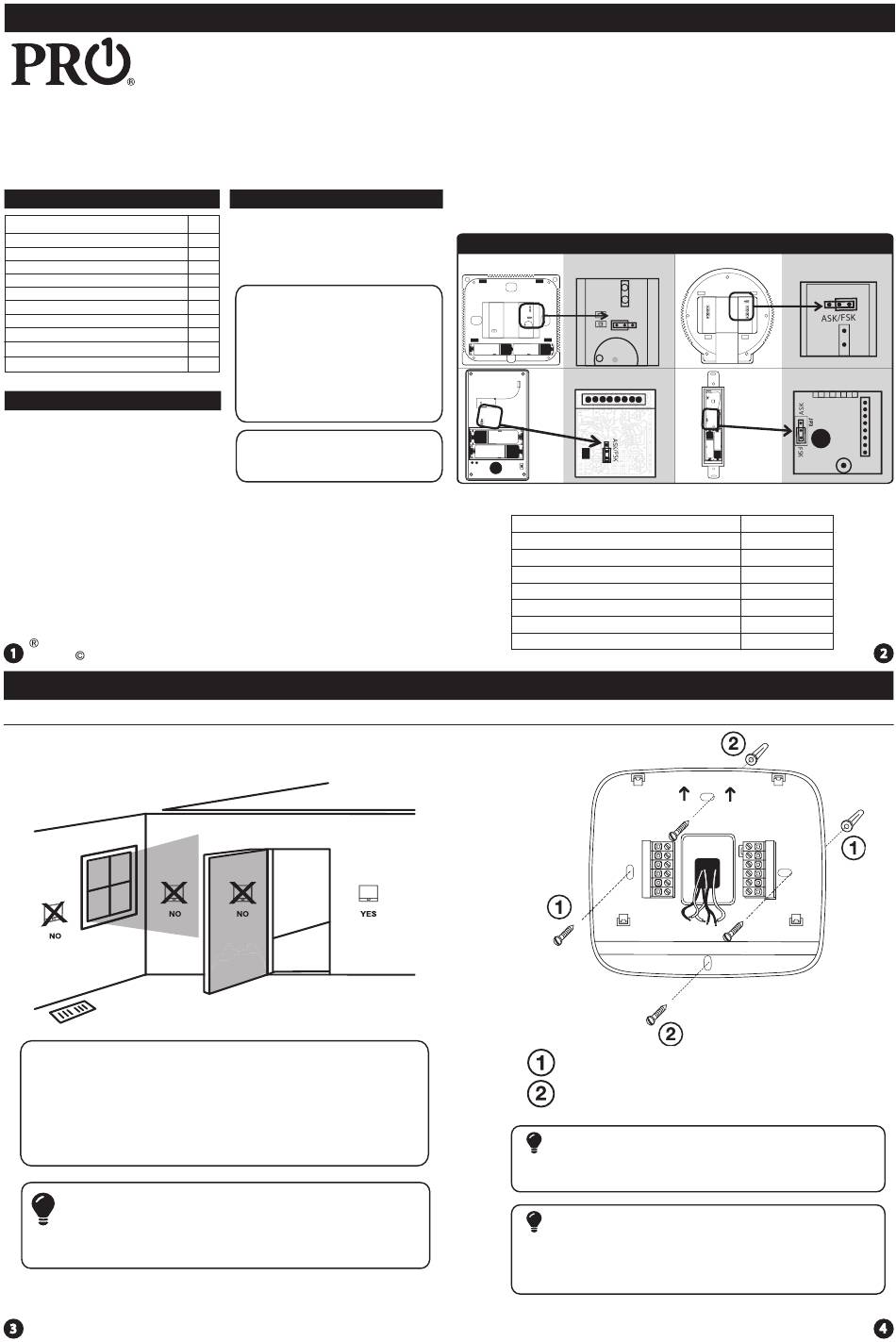

The images below illustrate the location of jumper switches for each
item that has one. Note only the thermostat and Base Module are
included in this package.
Back
T955WH
C
R
FSK / ASK
+
RESET
RZ251W
The table below lists the mode options for T955WH
Component
T955WH Thermostat
T955WH Thermostat Base Module
RZ251W - Indoor Remote*
RZ250W - Outdoor Remote*
R251W - Indoor Remote
R250W - Outdoor Remote
W150W - Wireless Repeater
*Compatible with Z955W - Wireless Zoning Controller
Rev. 1845
Installation Tips
Thermostat Subbase Installation
Horizontal Mount
Vertical Mount
Installation Tip: Electrical Hazard
Failure to disconnect the power before beginning to install this product
can cause electrical shock or equipment damage.
Mercury Notice
All of our products are mercury free. However, if the product you are
replacing contains mercury, dispose of it properly. Your local waste
management authority can give you instructions on recycling and
proper disposal.
FSK/ASK Switch
Back
BASE MODULE
C
R
FSK/ASK
B1
+
wireless thermostat and its accessories.
For horizontal mount put one screw on
the left and one screw on the right.
For vertical mount put one screw on
the top and one screw on the bottom.
FSK/ASK Switch
c
o
RZ250W
JP1
Mode Options
FSK or ASK
FSK or ASK
FSK or ASK
FSK or ASK
ASK
ASK
ASK
