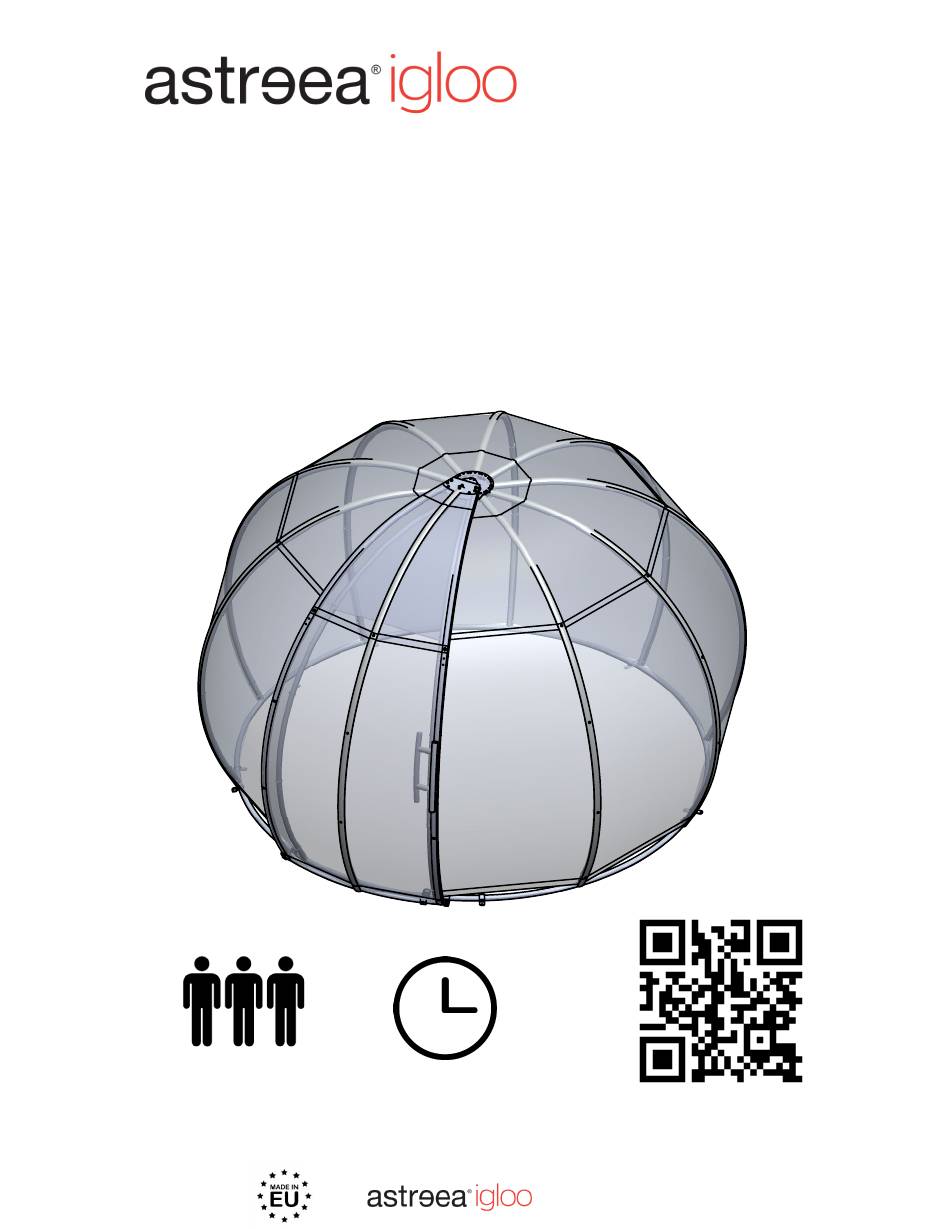

IGLOO L PLUS
Quick Installation Guide
COSTCO MODEL
IGLOO MUST BE SECURED TO THE
ITEM NO. 2127500
GROUND USING THE FLOOR
CLAMPS PROVIDED IN THE KIT
We recommand tree
2-3 hours needed
We recommend three (3)
5 Hours Needed
people for this operation
Quick installation video
www.astreea.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for astreea IGLOO L PLUS
Summary of Contents for astreea IGLOO L PLUS
- Page 1 IGLOO L PLUS Quick Installation Guide COSTCO MODEL IGLOO MUST BE SECURED TO THE ITEM NO. 2127500 GROUND USING THE FLOOR CLAMPS PROVIDED IN THE KIT We recommand tree 2-3 hours needed We recommend three (3) 5 Hours Needed people for this operation Quick installation video www.astreea.com...
- Page 2 1. The frame 2. The door 3. The umbrella www.astreea.com...
-
Page 3: Tools Included
15 x M8x50 21 x M8x20 10 x M8x25 16 x M6x20 24 x M6x12 20 x M6x12 screws screws screws screws screws screws 35 x M8 nuts Tools included Wrench no.13 Allen key no.2.5, 3, 4, 5 and 6 www.astreea.com... -
Page 4: Tools Needed
1 x stop plate 5 x M8x50 screws 1 x locking plate Tools needed Allen key no.6 Wrench no.13 Place the base rails on the floor. Consider one base rail as door rail . door rail locking plate stop plate www.astreea.com... - Page 5 Join the other rails and fix them as shown in the detail C. Tghten the screws on all 60° angle bolts of the base frame. M8x55 screw M8 nut DETAIL C door rail stop plate M8x55 M8 nut M8 nut screw DETAIL A locking plate M8x50 screw DETAIL B www.astreea.com...
- Page 6 M8 x 25 screw frame lower pole aluminium rings DETAIL D *If there is a gap between the poles, unscrew the connecting bolt and move poles closer until gap disappears. The same applies to base connections. www.astreea.com...
- Page 7 1 x support plate Tools needed Allen key no.5 Wrench no.13 Attach the support plate on the lateral pole and fix it with 2 x M8x20 screws and 2 x M8 nuts support plate M8 nuts lateral pole M8 x 20 screws www.astreea.com...
- Page 8 Mount the lateral pole, with the support plate attached, on the base rail and fix it with M8x50 screw and M8 nut. lateral pole with the support plate M8 nut attached M8x50 screw base rails DETAIL E door rail www.astreea.com...
- Page 9 Wrench no.13 Mount the second lateral pole in the opposite of the first one and fix it in the upper part and the lower part as shown. M8 nuts DETAIL F M8x20 screws M8x50 screw M8 nut DETAIL G www.astreea.com...
- Page 10 Allen key no.6 Allen key no.5 Wrench no.13 Mount the second lateral pole in the opposite of the first one and fix it in the upper part and the lower part as shown. M8 nut DETAIL H crown plate M8x20 screw www.astreea.com...
- Page 11 1.7 Fix the frame on the floor Components 10 x M8 anchors 5 x aluminium clamps (not included) Place the aluminium clamps on the base rails. Do not mount them on the door rail. aluminium clamps door rail aluminium clamps www.astreea.com...
- Page 12 2pcs. of M6x12 screws. Do not tight the screws until the end. Do not tighten the screws until the end. central bolt assembly M6x12 screws DETAIL I upper panel door rail door www.astreea.com...
- Page 13 Allen key not another tool that can damege the thread of the rings. the frame rings. upper aluminium ring DETAIL J M6x10 screw upper panel lower panel allign it with the lateral pole frame ring lateral pole www.astreea.com...
- Page 14 1.10 Mount the left door lower panel Install Fix the panele on the lower frame rings using 6pcs. of M6x8 screws. on the lower frame rings using 6pcs. of M6x8 screws. Install lower aluminium ring M6x8 screw lower panel DETAIL K www.astreea.com...
- Page 15 Use 2 pcs. of M6x12 screws to fix toghether the upper panel and the policarbonate disc on the crown plate. Do not tight the screws until the end. Do not tighten the screws until the end. polycarbonate panel M6x12 screw second upper panel www.astreea.com...
- Page 16 Do not tighten the M6 x 12 screws that fix the upper part of the upper panels until Do not tight the M6 x 12 screws that fix the upper part of the upper panels until the upper door panel will be mount. installed. DETAIL L www.astreea.com...
- Page 17 Install M6x20 screws. Proceed in the same way for all the 8 strips. Do not mount the upper strips on to the lateral poles of the door. install M6x20 screw upper strip door poles crown plate DETAIL M www.astreea.com...
- Page 18 - use M6x20 screws to fix them together, in the upper part, on the frame rings - use M6x12 screws to fix them on the frame rings in the lower part M6x20 screw M6x12 screw M6x12 screw M6x12 screw www.astreea.com...
- Page 19 2 x M6x12 Allen key no.4 Mout the door upper panel under the polycarbonate disc. Fix it on the crown plate Install using 2pcs. of M6x12 screws. using 2pcs. of M6x12 screws. DETAIL N M6x12 screws door upper panel www.astreea.com...
- Page 20 3 x M8x45 6 x M8x55 1 x M6x20 1 x M6x12 30 x M6x12 3 x M8x25 screw screws screw screw screw screws 6 x M8 9 x M8 nut washer Tools Wrench no.13 Allen key no.4, 5 and 6 www.astreea.com...
- Page 21 Mount the upper poles between the upper and nut M8 lower plate and fix them using M8x55 screws, M8 washers and M8 nuts. washer M8 right upper plate upper plate central upper plate lower plate M8x55 screw left upper pole www.astreea.com...
- Page 22 1 x M8x25 screw right upper pole door rings M8x25 screw right lower pole Insert on the right upper pole 1 pcs of door ring then join the upper assembly with the right lower pole. Fix them using M8x25 screw. www.astreea.com...
- Page 23 Insert on the central upper pole 1pcs. of frame ring Inser on the central upper pole 1pcs. of frame ring then join the upper assembly with the central lower pole. Fix them toghether using 8x25 screw. www.astreea.com...
- Page 24 Inser on the left upper pole 1pcs. of door ring Insert on the left upper pole 1pcs. of door ring then join the upper assembly with the left lower pole. Fix them toghether using 8x25 screw. www.astreea.com...
- Page 25 3 pcs. of door ring. Join the base door rail with the upper assembly and fix them using 3pcs. of M8x45 screws and 3pcs of M8 nuts. door rings door rings M8 nut base door rail frame rings M8x45 screw www.astreea.com...
- Page 26 Pay attention at the position of the door sealings. Ecah one have its has its own place. The right one have a has a cuted section for the handel and handle the left one does not have it. www.astreea.com...
- Page 27 2 x M6x12 2 x upper panel screw Mount the upper panels and fix them in the upper part using M6x12 screws. Install M6x12 screws upper panels Top view of the door with the installed upper panels mounted on www.astreea.com...
- Page 28 Align the lower holes of the upper panel with the upper holes of the lower panel and fix them on the upper rings using 2pcs. of M6x10 screws. Fix them also in the lower part using 6pcs. of M6x8 screws. M6x10 screws M6x8 screws M6x8 screws M6x8 screws www.astreea.com...
- Page 29 2pcs. of M6x10 screws. Fix them also in the lower part using 6pcs. of M6x8 screws. M6x10 screws M6x8 screws M6x8 screws M6x8 screws www.astreea.com...
- Page 30 1 x door upper strip washer Wrench no.13 1 x M8 nut 1 x M8 washer 1 x door upper strip Mount the upper strip on the central upper pole and fix it using M8 washer and M8 nut as shown. www.astreea.com...
- Page 31 M6x20 screw the upper frame ring. Use 3pcs. of M6x12 screws to fix 1 x door it in the lower part on the lower lower strip frame rings. M6x12 screw M6x12 screw M6x12 screw www.astreea.com...
- Page 32 M8x20 screw 2. Fix the door on the upper bolt using 2pcs. of M6x12 screws. Fix the upper bolt on the support plate using M8x20 screw. 3. Pass the left door lower panel over the left wheel. www.astreea.com...
- Page 33 Place the cover on the frame and align the holes of it with the holes of the upper poles as shown. Use the same screw to fix it on each pole. M8x25 screw umbrella cover lower pole DETAIL O www.astreea.com...
