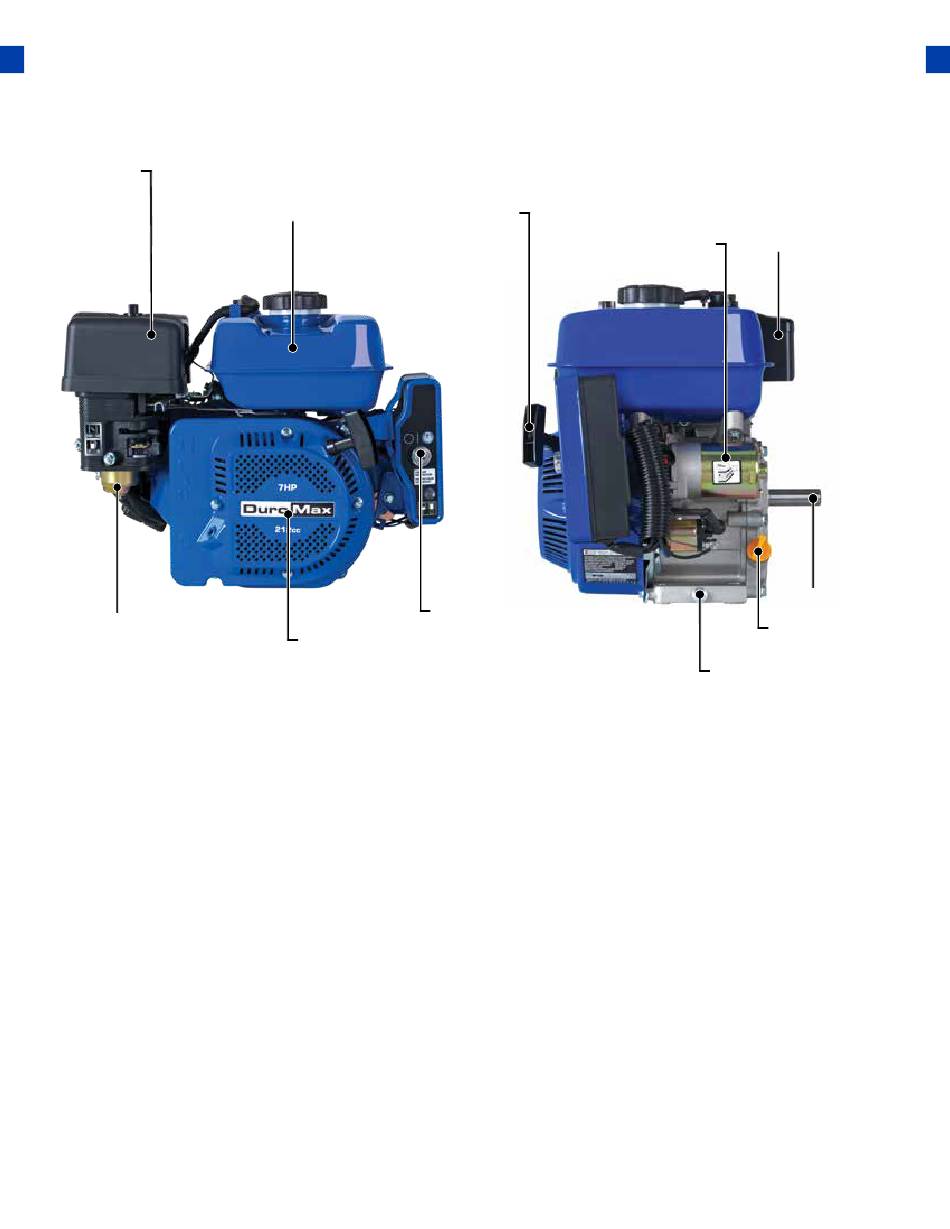

ENGINE COMPONENTS

1. Air Filter
3. Fuel Tank
6. Recoil Handle
8. Muffler
7. Starter Motor
9. Engine Shaft
5. Key Switch Box
2. Carburetor
10. Oil Fill
4. Recoil Starter
11. Oil Drain Plug
1. Air Filter - A removable, cleanable, oiled, element that cleans the air going into the engine.
2. Carburetor - A component used to control the air fuel mixture of the engine.
3. Fuel Tank - All metal 1 gallon gasoline fuel tank.
4. Recoil Starter - An easy pull recoil start to start the engine without the electric start.
5. Key Switch Box - An electric start switch that engages the starter motor with the turn of a key.
6. Recoil Handle - An easy grip handle used to pull the recoil starter rope.
7. Starter Motor - Electric motor that starts the generator electrically for easy starting.
8. Muffler - A noise dampening component that helps lower the engine decibel level.
9. Engine Shaft - A 3/4" diameter, 2-3/8" long, 3/16" key-way.
10. Oil Fill - An easy access location to fill the oil for the engine.
11. Oil Drain Plug - An easy to remove oil plug that is used to drain the oil.
