Brizo Rook 68460-LHP Series Manual

Two handle rosette bidet valve & diverter with vacuum breaker and pop-up assembly - less handles

Advertisement

Quick Links

Models/Modelos/Modèles
68460-LHP
Series/Serias/Seria
Rook™
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.

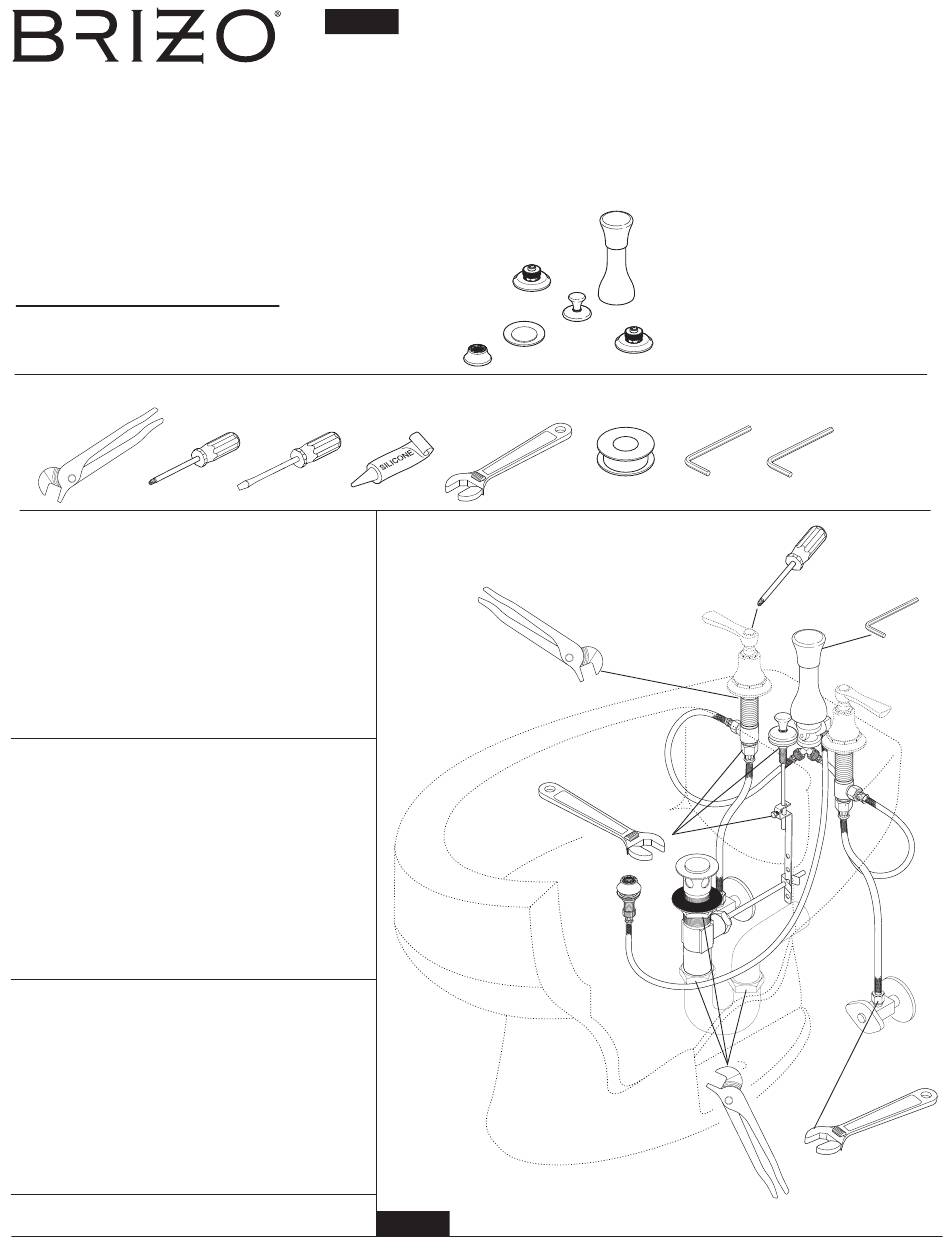

You may need/Usted puede necesitar/Articles dont vous pouvez avoir besoin:
For easy installation of your Brizo
faucet you will need:
• To READ ALL the instructions completely
before beginning.
• To READ ALL warnings, care, and maintenance
information.
• To purchase the correct water supply hook-up.
Para instalación fácil de su llave
Brizo
usted necesitará:
®
• LEER TODAS las instrucciones completamente
antes de empezar.
• LEER TODOS los avisos, cuidados, e
información de mantenimiento.
• Comprar las conexiones correctas para el
suministro de agua.
Pour installer votre robinet Brizo
facilement, vous devez:
• LIRE TOUTES les instructions avant de débuter;
• LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien;
• Acheter le bon nécessaire de raccordement.
▲Specify Finish / Especifíque el Acabado / Précisez le Fini
www.brizo.com
TWO HANDLE ROSETTE BIDET VALVE & DIVERTER
80439
WITH VACUUM BREAKER AND POP-UP ASSEMBLY
- LESS HANDLES
VÁLVULA DE DOS MANIJAS PARA BIDÉS CON
BOQUILLA DE ROCÍO Y DESVIADOR CON ROMPE-
VACÍO Y DESAGÜE AUTOMÁTICO – SIN MANIJAS
ROBINET À DEUX MANETTES POUR BIDET AVEC
GICLEUR, INVERSEUR À BRISE-VIDE ET RENVOI
MÉCANIQUE - SANS LES MANETTES
®
®
80439
1
Note: Handle kits must be
ordered separately.
Nota: los juegos de manijas se
venden por separado.
Note : Manettes en kit vendues
séparément.
3/32" (2.38mm)
3/32 po (2.38mm)
2 mm
4/21/15
2 mm
Rev. A

Advertisement

loading
Need help?

Need help?

Do you have a question about the Rook 68460-LHP Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Brizo Rook 68460-LHP Series

  • Page 1 Inscrivez le numéro de modèle ici. You may need/Usted puede necesitar/Articles dont vous pouvez avoir besoin: 3/32" (2.38mm) 3/32 po (2.38mm) 2 mm For easy installation of your Brizo ® faucet you will need: • To READ ALL the instructions completely before beginning.
  • Page 2 350 South Edgeware Road Componentes electrónicos y pilas (si aplicable) Indianapolis, IN 46280 St. Thomas, Ontario, Canada N5P 4L1 Todas las piezas (salvo las pilas), si hay, de esta llave de agua Brizo ® están garantizadas al con- 1-877-345-BRIZO (2749) 1-877-345-BRIZO (2749) customerservice@deltafaucet.com customerservice@mascocanada.com...
  • Page 3 RP28653▲ Handles (sold separately) Metal Pop-Up Assembly Less Lift Rod Manijas (se vende por separado) Ensamble de Metal del Desagüe Automático Menos Manettes (vendu séparément) la Barra de Alzar Renvoi mécanique en métal sans la tige de manoeuvre RP78584▲ Buttons & Friction Rings Botóns y Argolla de la Fricción RP5648▲...
  • Page 4 MAINTENANCE OPERATING INSTRUCTIONS SHUT OFF WATER SUPPLIES BEFORE SERVICING VALVE ASSEMBLIES. A. Check to be sure diverter valve handle (6) is in the rim feed position (turned fully clockwise). If your bidet faucet leaks out of rim feed area, or from rosette sprayer, or around handle body area, replace valve cartridge (1).
  • Page 5 INSTALLATION OF DIVERTER VALVE/VACUUM BREAKER Note: Please refer to bidet bowl installation instructions to identify hole location for diverter valve. Hole size must be 1-1/8" diameter minimum. INSTALLATION OF ROSETTE SPRAY Assemble diverter valve (1) with “Y” and gasket (2) as shown in illustration. Slide one rubber cone washer Apply silicone bead (1) under rosette (2).
  • Page 6 INSTALLATION OF VALVE ASSEMBLIES & TRIM Note: Holes for valves must be 1-1/8" diameter minimum and must be at least 5" apart. Place spline adapter (6) over valve stem (7) and secure with screw (8). Look for a blue label or dot on cold valve assembly and red label or dot on hot valve Repeat steps A, B &...
  • Page 7 Step 3b METAL POP-UP Step 3c Remove stopper (1) and flange (2). Apply silicone to underside of flange (9). Insert body Remove pivot nut (10). Install horizontal rod (11) and stopper (1) as removable (12) or non- (7) into sink. Screw flange (2) into body (7). removable (13).
  • Page 8 FLUSH YOUR SYSTEM Turn diverter handle (1) clockwise to ‘rim feed’ position. Turn on water Connect 12" hoses (1) from “Y” on diverter valve (2) to outlets on hot supplies (2) and turn hot and cold handles (3) to open position for one &...
