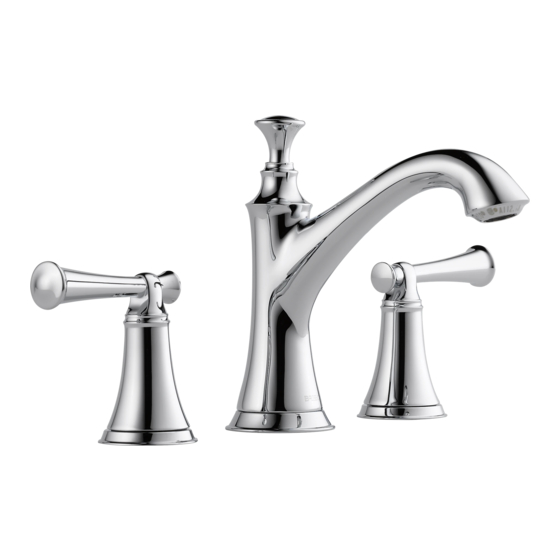

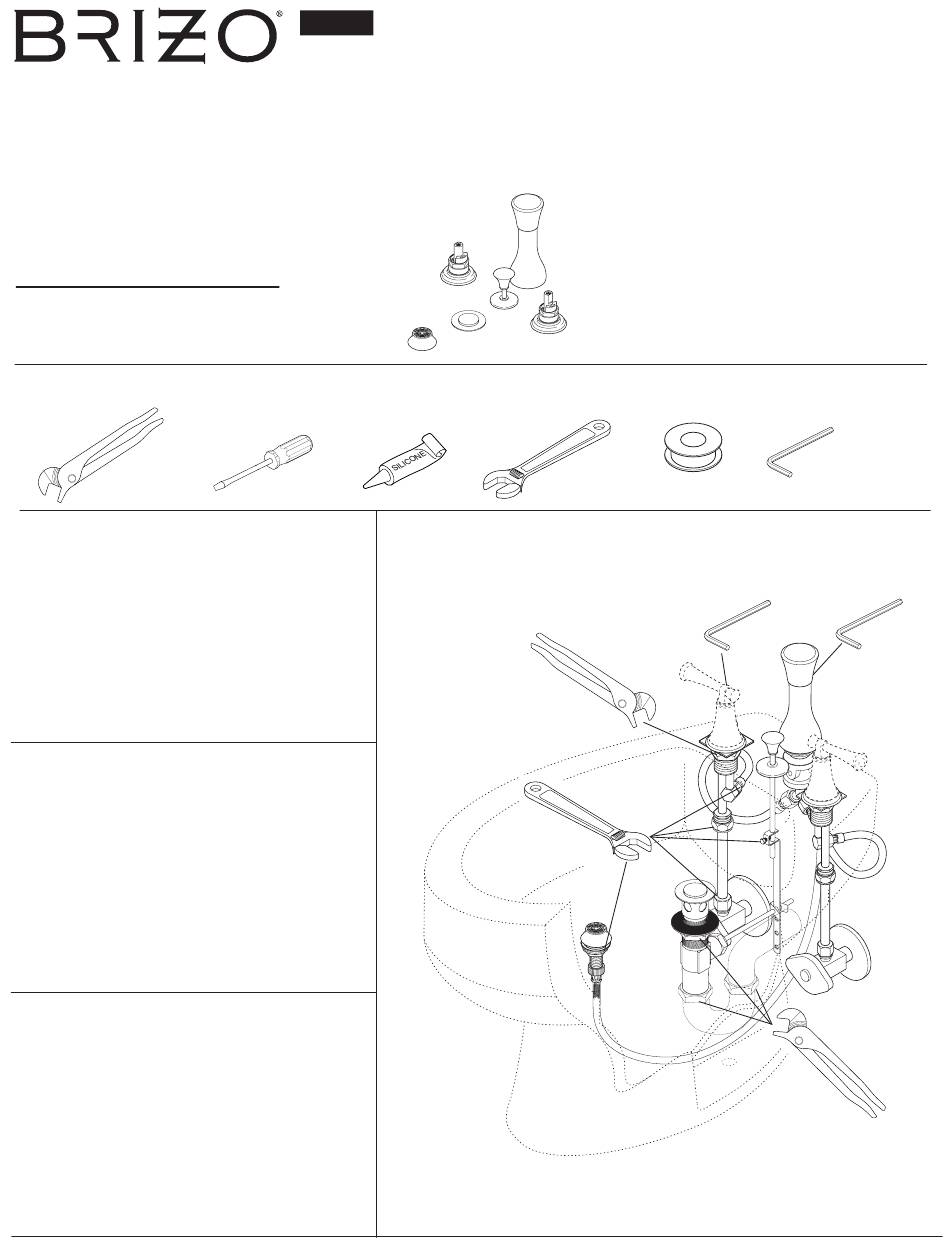

Brizo Baliza Series Manual

Brizo Baliza Series Manual

Three handle rosette bidet valve with vacuum breaker and pop-up assembly

Advertisement

Quick Links

Models/Modelos/Modèles
68405-LHP
Baliza
®
Series/Serias/Seria
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
You may need/Usted puede necesitar/Articles dont vous pouvez avoir besoin:
For easy installation of your Brizo
faucet you will need:
• To READ ALL the instructions completely
before beginning.
• To READ ALL warnings, care, and maintenance
information.
• To purchase the correct water supply hook-up.
Para instalación fácil de su llave
Brizo
usted necesitará:
®
• LEER TODAS las instrucciones completamente
antes de empezar.
• LEER TODOS los avisos, cuidados, e
información de mantenimiento.
• Comprar las conexiones correctas para el
suministro de agua.
Pour installer votre robinet Brizo
facilement, vous devez:
• LIRE TOUTES les instructions avant de débuter;
• LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien;
• Acheter le bon nécessaire de raccordement.
www.brizo.com
THREE HANDLE ROSETTE BIDET VALVE WITH
62925
VACUUM BREAKER AND POP-UP ASSEMBLY
VÁLVULA DE TRES MANIJAS PARA EL BIDÉ DE
BOQUILLA ROCIADORA CON ROMPEDOR DE
VACÍO Y ENSAMBLE DEL DESAGÜE AUTOMÁTICO
ROBINET À TROIS POIGNÉES POUR BIDET AVEC
AJUTAGE, CASSE-VIDE ET RENVOI MÉCANIQUE
®
®
1
T E FLO N
N
O
T
L
F
E
3/32" (2.38mm)
3/32 po (2.38mm)
3/32" (2.38mm)
3/32 po (2.38mm)
8/25/15
Rev. D
