- Page 1 Scenario Panel RS-485 SC-TR1-4.8 www.citron-iot.com...

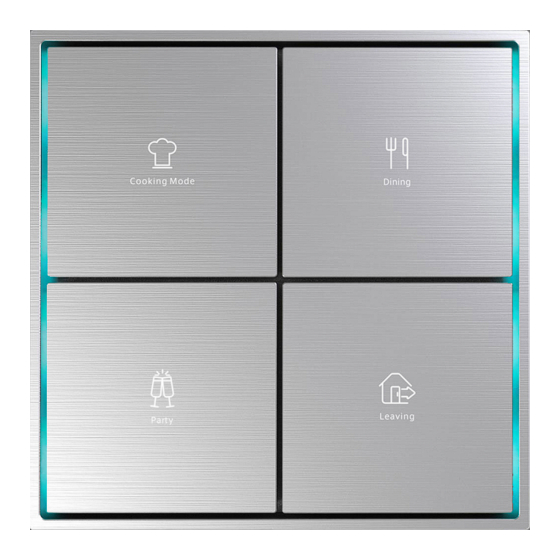

- Page 2 SC-TR1-4.8 series products are switch panel control devices with RS-485 protocol, which can control general switch lighting equipment, dimming lighting equipment, motor drive equipment or other pro- grammable switches. It integrates an RS-485 proto- col communication module and is specially designed for wall flush mounting.
- Page 3 Thirdly, connect the 485 bus to the terminal, then insert the terminal into the back of the product, and then set the address of the product to the required address through the dial switch. Snap the rocker switch (f) over the product. www.citron-iot.com...
- Page 4 Base bracket Frame Base Light guide bar Key holder Rocker switch www.citron-iot.com...
- Page 5 When a person or palm approaches the panel Panel backlight can be automatically turned on www.citron-iot.com...
- Page 6 Clamp o the adapter ears, suitable for 80 bottom box min 0.3m 1.3m-1.5m The product should be installed in a square or round bottom box. The fixing hole distance of the bottom box is 60mm. If necessary, the metal bracket for fixing can also be purchased separately. www.citron-iot.com...
- Page 7 485 dial address switch One channels of IO input 485 communication Rocker switch: square button Backlight LED www.citron-iot.com...
- Page 8 Double-click the button It is used to issue a control command when a double-click button action is detected. Long press the button Improper installation can cause short circuit or fire. Make sure the power is turned o before making connections. www.citron-iot.com...
- Page 9 Insert the removal hook into the gap between keys Swivel removal hook left or right Pull the hook up firmly The device is maintenance free. Use a dry cloth to clean it. It’s prohibited to use Solvents or other aggressive substances. www.citron-iot.com...
- Page 10 Warning Improper handling of this product may cause damage to the environment. Installation and commissioning can only be carried out by qualified profes- sional technicians. Illegal opening of the casing of the device will void the warranty. www.citron-iot.com...
