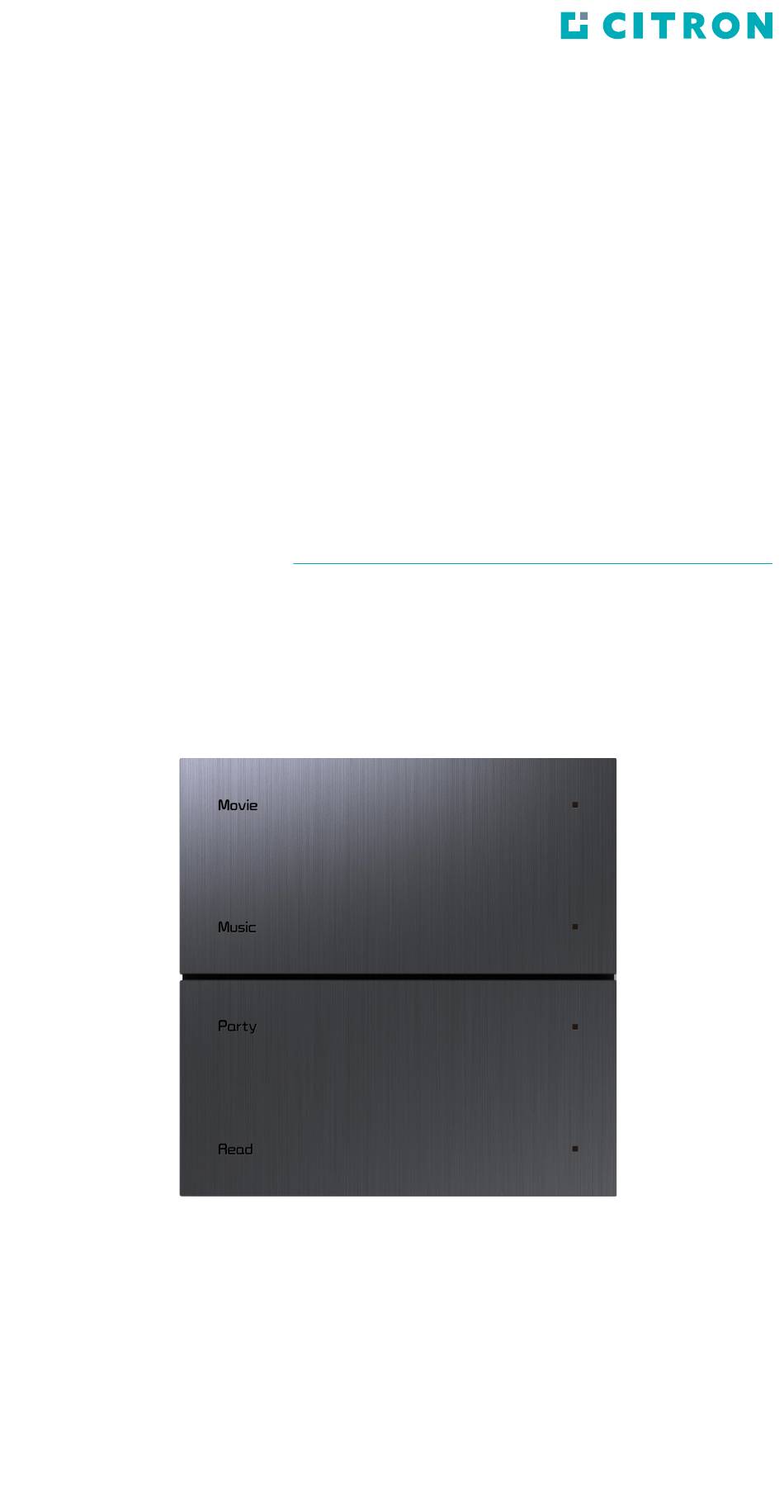

- Page 1 REf ire Scenario Panel SC-TK3-2.8/4.8 Entry Lux www.citron-iot.com...
- Page 2 It integrates a KNX bus communication chip, and is specially designed for wall flush mounting. This design can be assembled into 2 styles of panels. Product code Rockers Nr . Rocker size (mm) SC-TK3-2.8/4.8 42.2 x 85.5 Rectangular Square SC-TK3-2.8/4.8 42.2 x 42.2 www.citron-iot.com...
-
Page 3: Other Features
Pollution degree 2 (according to IEC 60664-1). Weight 80 grams (including mounting bracket). Dimensions 86×86×9 mm (frame thickness). Working voltage 21-32V DC Rated current ≤10mA Working temperature -5°C…+45°C Working humidity 5%~95%RH 86*86mm / 80*80mm Installation method bottom box installation www.citron-iot.com... - Page 4 Keys buckle Two-color bracket Box top support Metal bracket PCB box www.citron-iot.com...
- Page 5 Program button, red LED indicator Key backlight Proximity sensor KNX Bus www.citron-iot.com...
-
Page 6: Indicator Light
After programming, the proximity sensor will illumi- nate the backlight and trigger the associated group action. Induction distance, 15-20cm. When a person or palm Panel backlight can be approaches the panel automatically turned on www.citron-iot.com... - Page 7 0.3m 1.3m-1.5m The product should be installed in a standard 80/86 bottom box. The distance between the fixing screws of the one-piece bottom box is 24mm. If necessary, the metal bracket for fixing can also be purchased separately. www.citron-iot.com...
-
Page 8: Soft Reset
Soft Reset First uninstall the application data and physical address through the ETS software, and then use the ETS tool to reset the physical and configuration programs before they can be used normally. www.citron-iot.com... - Page 9 After wire connection, observe whether the button backlight is on. If it is on, the connection is fine. After importing the product database into the ETS software, you can start programming. (To obtain the database file, please contact the relevant salesman). KNX BUS+ KNX BUS- www.citron-iot.com...
- Page 10 Within 24 months from the date of re- ceipt, if the product has a product per- formance failure, you can enjoy free maintenance services. SC-TK3-2.8/4.8 * 1 M3 screw*3 www.citron-iot.com...
- Page 11 Wechat ID Wechat videos Web. www.citron-iot.com Cel. 186 6662 8709 Tel. 027 - 8886 1891 Add. 21st Floor, Greenland Chufeng Building, No. 750, Heping Avenue, Wuchang District, Wuhan www.citron-iot.com...
