Next SOUTHPORT 855825 Assembly Instructions Manual

Next SOUTHPORT 855825 Assembly Instructions Manual

Sink console

Advertisement

Quick Links

IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY.

Tools Needed

Helpline

If you have any problems with this product or
require any replacement fittings please contact
Customer Services Tel: 0844 844 8999
Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is
found to be faulty. Should you need to return the unassembled product, please repack in the original packaging.

IMPORTANT

• We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
• Carefully check that you have all parts before beginning assembly.
• Keep fittings out of children's reach and keep children well away from the construction area.
• We recommend that the packaging is used to protect the surfaces during assembly.
• A minimum of 2 persons is required to assemble this product.

PRODUCT INFORMATION

• Made from MDF with painted finish.
• Made in China.

CARE INSTRUCTIONS

• For general cleaning, periodically dust with a soft cloth.
• Do not rub or scrub the surface when cleaning.
• Always use a non-silicone based furniture polish. Silicone in furniture polishes can break down the lacquer
finish.
• Any spills should be removed immediately with a soft clean damp cloth and dried immediately.
• Ensure the product is protected with mats and coasters when items are placed on the surfaces, to prevent
scratching or damage.
• Do not put hot dishes directly on the surfaces of the item.
• Avoid keeping furniture in direct sunlight or close to any heat sources as this can cause cracking, discolouration
or warping.
• Never drag pieces of furniture across the floor as this will cause damage to the joints.
• All assembly fixings should always be tightened properly and periodically check all fixings and tighten if
necessary.

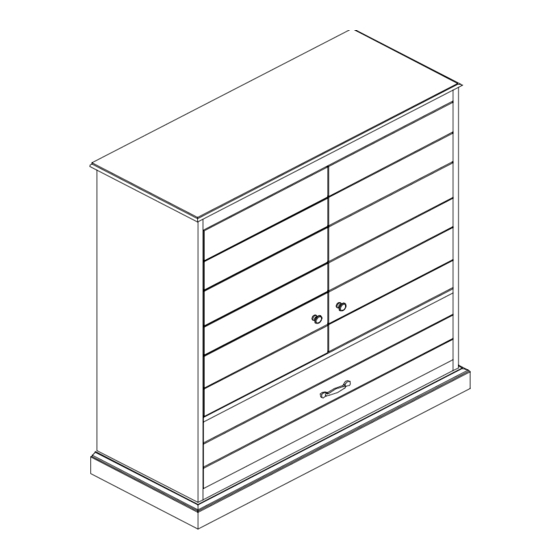

855825 SOUTHPORT SINK CONSOLE
ASSEMBLY INSTRUCTIONS.
Page 1 of 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SOUTHPORT 855825 and is the answer not in the manual?

Questions and answers

Summary of Contents for Next SOUTHPORT 855825

  • Page 1 855825 SOUTHPORT SINK CONSOLE ASSEMBLY INSTRUCTIONS. IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY. Tools Needed Helpline If you have any problems with this product or require any replacement fittings please contact Customer Services Tel: 0844 844 8999 Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is found to be faulty.
  • Page 2 FITTINGS PARTS (4) Top Front Rail x 1 (1) Top Panel x 1 (2) Side Panel (L&R) x 2 (3) Bottom Panel x 1 STEP ONE 1. Insert 2 x wooden dowels (D) into bottom panel 2. Attach lower front rail 6 to bottom panel 3 with 3 x screws (F) and tighten.
  • Page 3 STEP THREE 1. Insert 5 x cambolts (A) and 5 x wooden dowels (C) into side panel 2-R. 2. Attach side panel 2-R to the assembled unit. 3. Insert 5 x camlocks (B) into top front rail 4, back rail 5, back rail 7 and shelf panel 9. Ensure the arrow indicator is pointing towards the panel edge before tightening with a screwdriver.
  • Page 4 STEP SIX 1. Attach 4 x hinges (H) to door panel 10 (both L&R) and with 8 x screws (J) and tighten. 2.Attach 2 x handles (L) to door panel 10 (both L&R ) with 2 x bolts (K) and tighten. 3.
  • Page 5 STEP NINE 1. Insert the drawer into the unit. STEP TEN 1. Use pencil to mark through predrilled hole on back panel. STEP TWELVE 1. Use power tool drill through the pencil mark. Page 5 of 6...
  • Page 6 NB: Wall fixings are not incuded, please source suitable fixings for your wall type. If in doubt please consult a qualified trades person. Next Retail Ltd, Desford Road, Leicester, LE19 4AT Page 6 of 6...

Table of Contents
