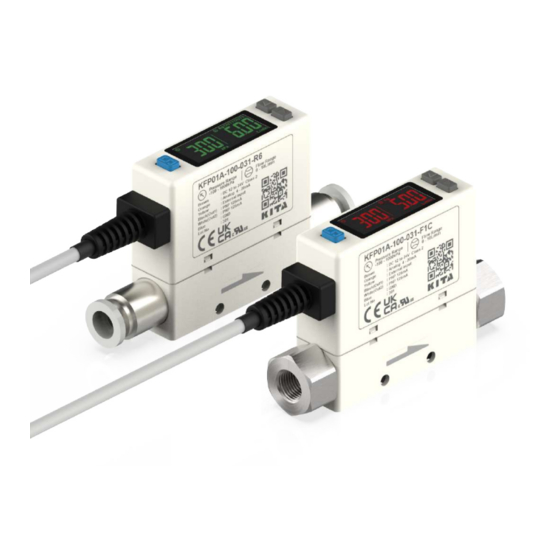

KITA KFP01A Series Instruction Manual

Digital flow and pressure sensor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

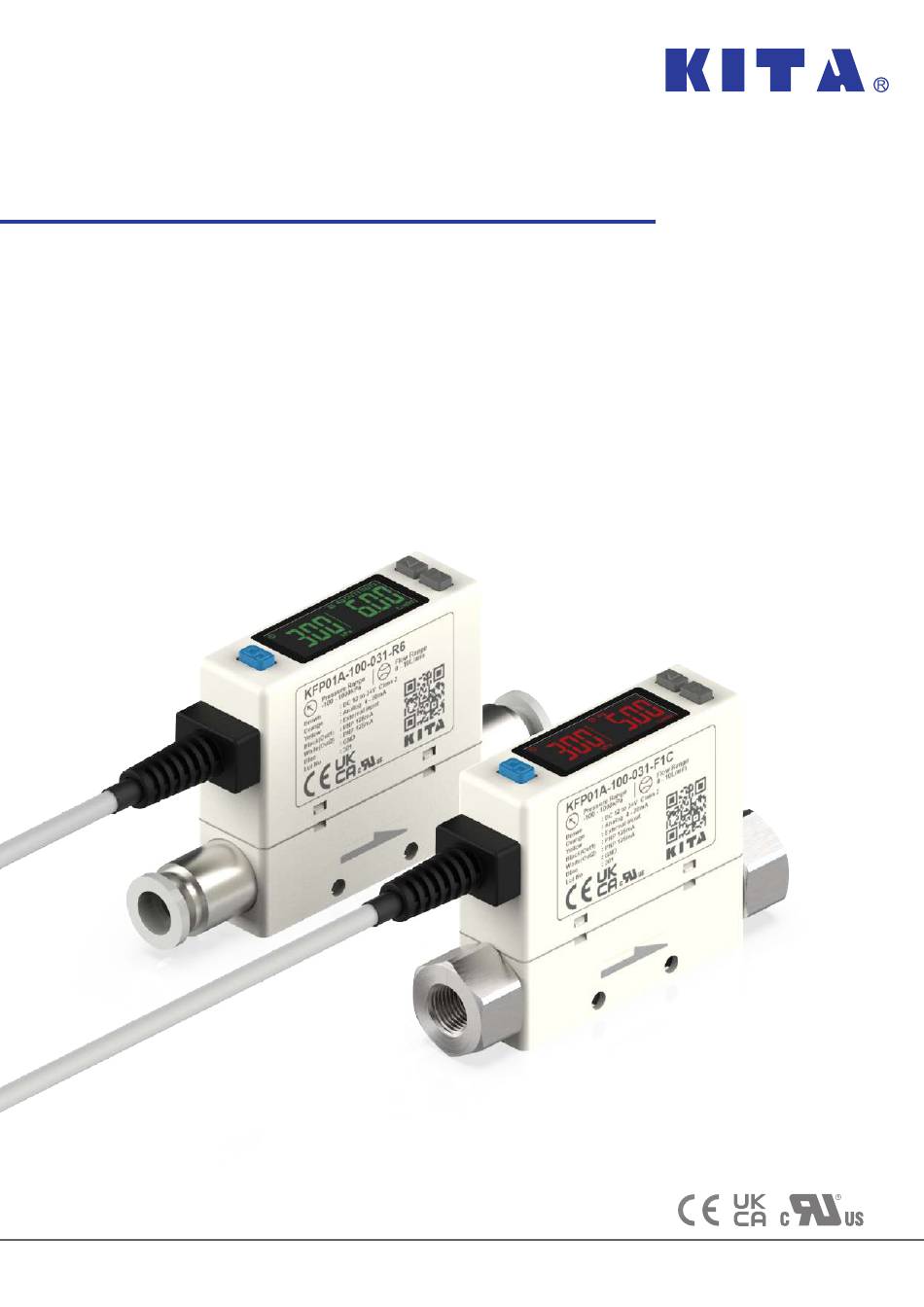

INSTRUCTION MANUAL
DIGITAL FLOW AND PRESSURE SENSOR
KFP01A
Series
@2022 KITA Sensor Tech. Co., LTD.
URL http://www.kita.com.tw

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KFP01A Series and is the answer not in the manual?

Questions and answers

Related Manuals for KITA KFP01A Series

Summary of Contents for KITA KFP01A Series

  • Page 1 INSTRUCTION MANUAL DIGITAL FLOW AND PRESSURE SENSOR KFP01A Series @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 2 Please follow the rated range of flow and pressure to avoid damage. avoid damage. ➅ Do not use flammable fluids and/or permeable fluids. Do not use flammable fluids and/or permeable fluids. They may cause fire, explosion or corrosion. @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 3 I.D. 5 mm.While installing ➅ the KFP01A-005/010/050/100/500 to the pipe, please the KFP01A-005/010/050/100/500 to the pipe, please apply apply air tube with I.D. 4 mm. air tube with I.D. 4 mm. @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 4 KITA. are not the responsibility of KITA.

  • Page 5: Table Of Contents

    ........11 2.2 Functions Instructions ................ 12 2.3 Operation Setting ................. 14 Modbus RTU Instruction Error Code Instruction Specifications Pressure Loss Characteristics Thermal Mass Principles of Flow Sensor Ordering Information Dimensions Internal Structure @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...

  • Page 6: Installation Instructions

    Also using the proper tube cutter is recommended to ensure square edge tube. ※ Recommends using PU tube. @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...

  • Page 7: Piping For The Internal Thread

    If the tightening torque is insufficient, the fitting may become loose and cause air leakage. After installation completed, turn on the gas and power supply for proper operation and leaking test to confirm whether the installation is correct. @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...

  • Page 8: Mounting Bracket

    ※ The tightening torque for bracket mounting screws should be under 0.5 ± 0.1 N.m. 3 . Panel mounting Front protective lid Panel adapter Panel adapter Panel adapter 60.5 x 22.5 ±0.3mm @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...

  • Page 9: Wiring

    Analog voltage output：1 ~ 5V Orange Orange Analog current output：4 ~ 20mA Yellow External input Yellow Black Output 1 (Max. load current：125mA) Black White Blue White Output 2 (Max. load current：125mA) Blue 0V (GND) @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...

  • Page 10: Pnp Output, Analog Output And External Input

    Analog voltage output：1 ~ 5V Orange Orange Analog current output：4 ~ 20mA Yellow External input Yellow Black Output 1 (Max. load current：125mA) Black White Blue White Output 2 (Max. load current：125mA) Blue 0V (GND) @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...

  • Page 11: Npn Output, Rs-485 Modbus

    Power supply (DC 12 to 24V DC) Brown Brown Orange RS-485 (B+) Orange Yellow RS-485 (A-) Yellow Output 1 (Max. load current：125mA) Black Black White White Output 2 (Max. load current：125mA) Blue Blue 0V (GND) -10- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...

  • Page 12: How To Use

    Pressure Symbol Button Ag OUT1OUT2 Ag OUT1OUT2 Button kgf/cm bar psi kPa Pulse ft /min mL /min Setting Button Pressure Display Flow Display Pressure Unit Flow Unit Display Section Display Section -11- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...

  • Page 13: Functions Instructions

    [ FLo ] Flow unit setting P.26 flow sensor. [PrES] Pressure unit setting Select the flow value is shown [rEFE] Flow reference standard [F-07] P.27 under standard (ANR) or normal setting condition (NOR). -12- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 14 The minimum pressure or instantaneous flow can be detected when the power is supplied for a period. Key lock/unlock mode To prevent errors occurring due to unintentional changes of the set values. -13- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...

  • Page 15: Operation Setting

    3 sec. at Function Setting Mode to return to Measurement Mode. /min Measurement Mode Press button for more than 3 sec. Function Selection Mode /min /min /min Press button Enter in each function setting -14- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 16 Hysteresis Mode Window Comparator Mode Accumulated Output Mode Accumulated Pulse Output Mode ※ NOTE : Accumulated Pulse Mode is available in OUT1, but not in OUT 2. Press button (to be continued) -15- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 17 /min hysteresis value. Fixed Hysteresis Set Value Mode ※ NOTE : Fixed hysteresis setting is available when selecting Window Comparator Mode. Press button to return to Function Selection Mode /min -16- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 18 Select output mode : Press button to select output /min mode of OUT1. Set Value Sensor /min /min /min Hysteresis Mode Window Comparator Mode One Point Set Mode Press button (to be continued) -17- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 19 /min hysteresis value. Set Value Fixed Hysteresis Mode ※ NOTE : Fixed hysteresis setting will not display when Hysteresis Mode is set. Press button to return to Function Selection Mode /min -18- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 20 *1. In case hysteresis is set at less than or equal to 2 digits, switch output may chatter if input detected fluctuates near the set point. *2. When using window comparator mode, the difference between two set points must be greater than the fixed hysteresis, otherwise will cause the switch output to malfunction. -19- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 21 Function Selection Mode to start "OUT 2 Setting" [F-02] [oUt2]. 2. Check the [F-01] for the same follow setting. NOTE : The OUT2 Setting dose not have Accumulated Pulse Output Mode. -20- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 22 ON : Green ON : Red ON : Green ON : Red OFF : Red OFF : Green OFF : Green OFF : Red Press button to return to Function Selection Mode /min -21- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 23 7 Response time selections include: Selected Set Value 50ms, 80ms, 120ms, 200ms, 400ms, 800ms, 1500ms Sensor /min /min /min 800ms 1500ms 400ms Press button to return to Function Selection Mode /min -22- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 24 7 Response time selections include: Set Value Selected 2.5ms, 25ms, 100ms, 250ms, 500ms, 1000ms, 1500ms Sensor /min /min /min 2.5ms 25ms 1500ms Press button to return to Function Selection Mode /min -23- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 25 /min 3 display refresh time selections include: Refresh Set Value 200ms, 500ms,1000ms Time /min /min /min 500ms 1000ms 200ms Press button to return to Function Selection Mode /min -24- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 26 /min 3 display refresh time selections include: Set Value Refresh 200ms, 500ms,1000ms Time /min /min /min 200ms 500ms 1000ms Press button to return to Function Selection Mode /min -25- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 27 /min 4 pressure unit selections include: Set Value Pressure kPa, kgf/cm , bar, psi Sensor /min kgf/cm /min /min /min kgf/cm Press button to return to Function Selection Mode /min -26- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 28 2. Normal condition (NOR): the display value is calculated under 0°C, 1atm. 3. Flow rate in the specification is the value at standard condition (ANR). Press button to return to Function Selection Mode /min -27- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 29 Set Value /min /min Flow sensor Pressure sensor ※ NOTE : This function is not available with Output Specification -02 and -04. Press button to return to Function Selection Mode /min -28- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 30 If the sensor is operated 24 hours per day, the durability is calculated as below : ◆ 5 minutes x 1 million cycles = 5 million minutes = 9.5 years ◆ 2 minutes x 1 million cycles = 2 million minutes = 3.8 years -29- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 31 ※ NOTE : When the measured flow rate range is 500mL/min or 1000mL/min, the accumulated flow is selected and the unit will become in mL/min. Press button to return to Function Selection Mode /min -30- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 32 Press button Fluid Setting Press button to select a fluid type. /min Fluid types Set Value /min /min /min Air , N Press button to return to Function Selection Mode /min -31- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 33 1. This function is not available with RS485 (Output Specification -02 and -04). 2. This function is available for output of flow rate only. Press button to return to Function Selection Mode /min -32- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 34 2. The sensor will return to [F-90] [AoUT] when select oFF. Press button Range Setting Min. setting value Min. setting value ： ： Press button to adjust the min. /min value. Analog Output Set Value Range Press button (to be continued) -33- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 35 : Measured flow rate range 0 ~ 10L e.g. : Measured flow rate range 0 ~ 10L ◆ AG_L range ： AG_L ～ AG_H – 1 digit ◆ AG_H range ： AG_L + 1 digit ～ AG_H -34- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 36 Range Setting Max. setting range ： ： Max. setting range Press button to adjust the max. /min value. Set Value Analog Output Range ※ NOTE : AG_H range：-99 ～ 1000 -35- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 37 Rated pressure range ： ： -100 ~ 1000 kPa Rated pressure range -100 ~ 1000 kPa ◆ AG_L range ： AG_L ～ AG_H – 1 digit ◆ AG_H range ： AG_L + 1 digit ～ AG_H -36- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 38 Set Value Mode /min /min Power-save mode "OFF" Power-save "ON" ※ NOTE : During the Power-Save Mode, the decimal point will flash. Press button to return to Function Selection Mode /min -37- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 39 1. This function is not available with RS485 (Output Specification -02 and -04). 2. When external signal is input, the instantaneous flowrate value will be /min shown ”oooo”. Press button to return to Function Selection Mode /min -38- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 40 Baud Rate Set Value /min /min /min 9600 Bd 19200 Bd 38400 Bd ※ NOTE : This function only available for RS485 (Output Specification -02 and -04). Press button (to be continued) -39- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 41 Even Parity Odd Parity ※ NOTE : This function only available for RS485 (Output Specification -02 and -04). Press button /min RTU mode Press button to return to Function Selection Mode /min -40- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 42 Flashing alternately /min /min Fine adjustment Instantaneous Value setting Value flow value ※ NOTE : Display will flashing between instantaneous flow value and "FST". Press button Return to the measurement mode -41- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 43 Flashing alternately /min /min Fine adjustment Pressure setting Value Value Value ※ NOTE : Display will flashing between pressure value and "FST". Press button Return to the measurement mode -42- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 44 OUT1 ON Press button OUT2 setting Press button to setting OUT2. /min Output 2 Set Value OUT2 /min /min OUT2 OFF OUT2 ON Press button to return to Function Selection Mode /min -43- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 45 Reset to The Default Setting Press the button to return to the /min factory default setting. Default Set Value setting /min /min Disable Enable Press button to return to Function Selection Mode /min -44- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 46 And release holding the button to return measurement mode. Measurement mode /min Press button simultaneously over 3 sec. /min To release holding the button to return measurement mode. /min Pressure value return zero. -45- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 47 And release holding the button to return measurement mode. Measurement mode /min Press button simultaneously over 3 sec. /min To release holding the button to return measurement mode. /min Instantaneous flow value return zero. -46- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 48 (Accumulated flow value mode) until display zero. And release holding the button to return measurement mode. Measurement mode Press button simultaneously over 3 sec. Accumulated value display zero. To release holding the button to return measurement mode. -47- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 49 Press button return to the measurement mode. Measurement mode /min Press button over 3 sec. Flashing alternately /min /min Press button return measurement mode. /min -48- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 50 Press button return to the measurement mode. Measurement mode /min Press button over 3 sec. Flashing alternately /min /min Press button return measurement mode. /min -49- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 51 Mode /min /min Unlock Lock ※ NOTE : If a button operation is performed while the key lock setting is ON, [ LoC][ on] will displayed. /min Displayed for 1 sec. -50- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...

  • Page 52: Modbus Rtu Instruction

    2 : WIN (Window Comparator) Flow display refresh time 0 : 200ms Read OUT1 output type 000DH Read 1 : 500ms Write 0019H 0 : N.O. mode Write 2 : 1000ms 1 : N.C. mode -51- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 53 Pressure setting value H-2 002CH Read / Write error Write OUT2 fixed hysteresis setting for Function Code error Read pressure value HYS 002DH Write Illegal data or over setting value 1 ~ 8 -52- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...

  • Page 54: Error Code Instruction

    /min The pressure has exceeded Increase the pressure to the the lower limit of the pressure display range. display range. /min -53- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...

  • Page 55: Specifications

    10 *5. -100 ~ 1000 kPa, Outlet Pressure : 1 atmospheric pressure, 25 °C. *2. Accuracy: It is based on dry compressed air and KITA standard flow meter. *6. Outlet flow rate = 0 L/min, 25 °C It is a reference only for other gases.

  • Page 56: Pressure Loss Characteristics

    0.4MPa 0.4MPa 0.5MPa 0.5MPa Flow rate (L/min) Flow rate (L/min) ● KF P01 A- 201 (200 L/min) 0.2MPa 0.3MPa 0.35MPa 0.4MPa 0.5MPa -50.00 50.00 100.00 150.00 200.00 250.00 Flow rate (L/min) -55- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...

  • Page 57: Thermal Mass Principles Of Flow Sensor

    F4C : Rc1/4”, with internal threads, for Flow Rate Range 101, 201. Optional Parts Optional Parts BT-26 : Mounting bracket PA-G : Panel adapter PA-H : Panel adapter + Front protective lid -56- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...

  • Page 58: Dimensions

    Ø6 ,Ø 8 ● Ø 8 Ø 6 92.1 82.9 2*Ø2.5 depth5.5 (mm) R c1/ 8” , Rc1 /4 ” ● Rc1/8” Rc1/4” 76.2 (B) 76.2 76.2 2*Ø2.5 depth5.5 (mm) Unit：mm -57- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 59 3 .Pa ne l M o un t ing 4 .Panel Cut-Out Front protective lid Panel adapter Panel thickness 1~4.5 33.6 60.5 ±0.3 49.5 ≤ 4 x R3 4 x 3.5 Panel adapter Panel adapter 32.6 Unit：mm -58- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...

  • Page 60: Internal Structure

    Nickel clad copper Sensor Module Holder O-ring (One-Touch Fitting) Sensor Board GE4F Port Filter SUS 304 O-ring Viton Resin Body O-ring Viton Internal thread SUS 303 Sensor O-ring Viton (Internal thread) -59- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 61 Module Holder O-ring (One-Touch Fitting) Sensor Board GE4F Port Filter SUS 304 O-ring Viton Spacer Throttle SUS 303 Resin Body O-ring Viton Internal thread SUS 303 Sensor O-ring Viton (Internal thread) -60- @2022 KITA Sensor Tech. Co., LTD. URL http://www.kita.com.tw...
  • Page 62 PR-0672A 03/2023 www.kita.com.tw KITA Sensor Tech. Co., LTD. All Rights Reserved...
