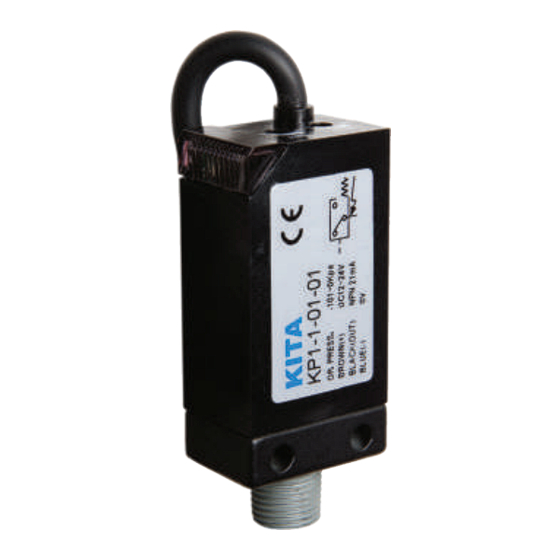

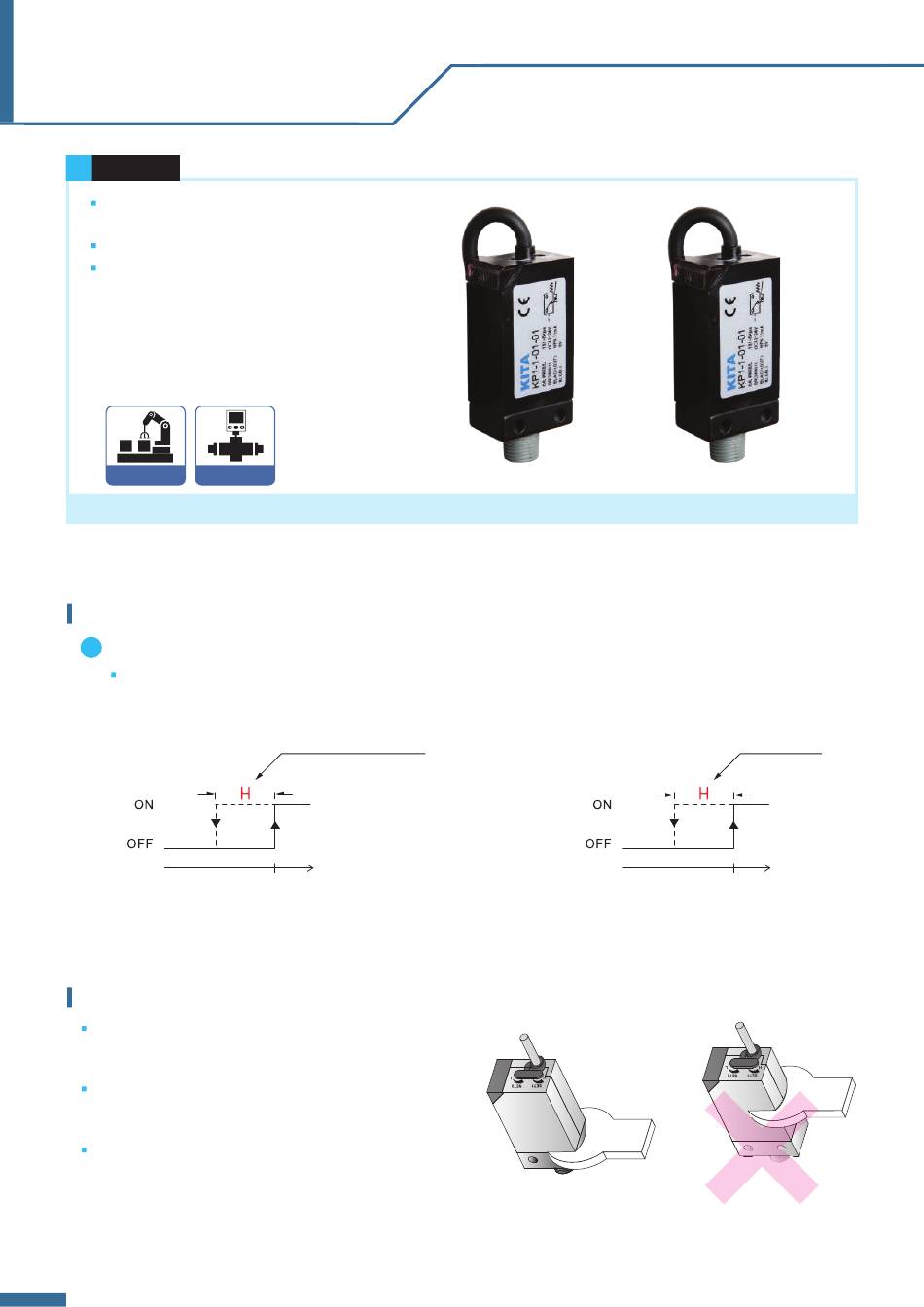

KP1
Features
1 output ( hysteresis adjustable )
2 outputs
Easy installation
Response time : less than 5 ms
Suction
Features Highlight
1
Hysteresis Adjustable
Output hysteresis
KP1- □ - 01, 02
Installation Precautions
When mounting, always use the wrench on the metallic
area near the pressure port. Never apply a wrench to the
plastic body, it will damage the sensor.
Over tightening may cause damage to the port thread,
mounting bracket and pressure sensor. Under tightening
may result loosen or leakage.
Apply air pressure and power after installation, make
necessary adjustments and inspect any possible signs of
leakage to ensure proper installation.
20
SERIES
Pressure Dectection
(H)
is adjustable
1 ~ 10 % of setting pressure
( Adjustable )
Vacuum Pressure
or
Low Pressure
Setting Pressure
Tunable Hystersis Sensor
KP1 - □ - 03
Hys. ≤ 3 % F.S.
Positive Pressure
Setting Pressure
Advertisement
Table of Contents
Related Manuals for KITA KP1 Series
Summary of Contents for KITA KP1 Series
- Page 1 Tunable Hystersis Sensor SERIES Features 1 output ( hysteresis adjustable ) 2 outputs Easy installation Response time : less than 5 ms Suction Pressure Dectection Features Highlight Hysteresis Adjustable Output hysteresis is adjustable KP1- □ - 01, 02 KP1 - □ - 03 1 ~ 10 % of setting pressure ( Adjustable ) Hys.
- Page 2 Pressure Sensor Specifications KP1-1 KP1-2 KP1-3 MODEL Vacuum Positive 1 MPa 100 kPa -101 kPa Set Pressure Range -101 ~ 0 kPa 0 ~ 100 kPa 0 ~ 1 MPa Withstand Pressure 300 kPa 1.5 MPa Fluid Filtered air, Non-corrosive / Non-flammable gas Power Supply Voltage 12 ~ 24 V DC ±...
- Page 3 SERIES Tunable Hystersis Sensor Ordering Information K P 1 - 1 - 0 1 - 0 1 - N P T Pressure Range Pressure Port 1 : Vacuum ( -101 ~ 0 kPa ) PT : 1/8"PT ( R1/8" ), M5 2 : Low ( 0 ~ 100 kPa ) NPT : NPT1/8", M5 3 : Positive ( 0 ~1 MPa )
- Page 4 Pressure Sensor Dimensions KP1 - □ - □ - □ Indicator L : 01:1000 03:3000 Ø3.4 x 2 15.5 13.1 23.5 44.5 KP1 - □ - C - □ Indicator 15.5 Ø3.4 x 2 23.5 13.1 44.5 QD PINOUT (1) Brown (+) (2) White (OUT2) (3) Blue (-) (4) Black (OUT1)
