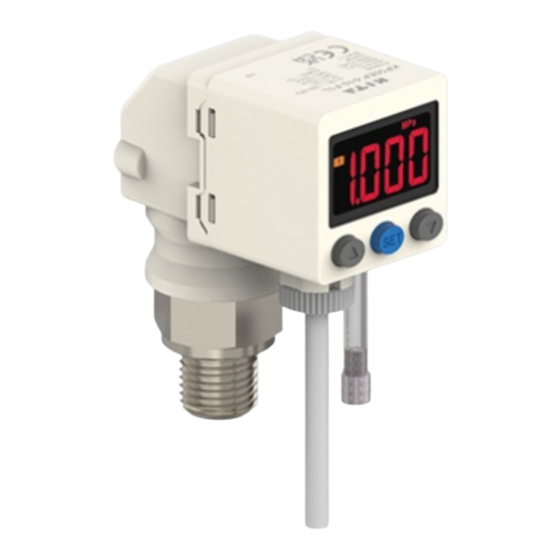

KITA KP50E Series Manual

For your safety, please read the following before using.
Do not use corrosive fluid SUS316L, please confirm the specification in detailed.
1
Please use within the rating pressure range. Do not apply pressure beyond recommended maximum withstand pressure, permanent
2
damage to the pressure sensor may occur.
Do not drop, hit or allow excessive shock. Even if switch body appears undamaged, internal components may be broken and can cause
3
malfunction.
Turn power off before connecting wiring. Wrong wiring or short circuit will damage and/or cause malfunction.
4
This product is not explosion-proof rated. Do not use in atmosphere containing flammable or explosive gases.
5
Wiring for pressure sensor should avoid power source line and high voltage line. If use in the same circuit, noise may cause malfunction.
6
The product is complied CE certificate, but no surge absorber. If required, please find other way to solve.
7
Do not exceed the screw-in torque of 13.6 N.m when installing piping. Exceeding this value may cause malfunction.
8
Sensors at end-of-life must be disposed of in accordance with E-Waste regulations of the country/region, NOT disposed of with regular
9
garbage.
A.
SPECIFICATIONS
Rated pressure range
Set pressure range
Withstand pressure
Fluid
Sealed liquid
kPa
MPa
kgf/cm
2
Set pressure
resolution
bar
psi
inHg
Power supply voltage
Current consumption
Output type
Max. load current
Max. supply voltage
Switch
output
Residual voltage
Response time
Output short circuit protection
Voltage
Voltage
output
Impedance
Current
Analog
output Current
output
Impedance
Linearity
LCD display
Switch on indicator
Display
Updates time
Indicator accuracy
Repeatability (Switch output)
Enclosure
Operation ambient temp. range
Storage ambient temp. range
Ambient humidity range
Environment
Withstand voltage
Insulation resistance
Vibration
Shock
Temperature characteristic
Port size
Lead wire
Weight
PR-0451F 2022/04 Online Version
KITA SENSOR TECH. CO., LTD.
KP50EP-
(Positive)
0.000 ~ 1.000MPa
-0.100 ~ 1.000MPa
─
0.001
0.01
0.01
0.1
─
≤ 2.5ms (chattering-proof function: 25ms, 100ms, 250ms, 500ms, 1000ms and 1500ms selections)
3 ½ digital, 7 segment LCD display ( Red / Green / Orange ) ( Sampling rate : 5 times / sec. )
Total amplitude 1.5mm or 10G,10Hz-55Hz-10Hz scan for 1 minute, two hours each direction of X, Y and Z
We reserve the right to change the specification without prior notice.
- KP50EH- -
(High)
0.000 ~ 2.00MPa
-0.100 ~ 2.00MPa
3 MPa
Non-corrosive fluid SUS 316L
Silicon oil
─
0.001(~1.999)
0.01(2.00~)
0.01(~19.99)
0.1(20.0~)
0.01(~19.99)
0.1(20.0~)
0.1(~199.9)
1(200~)
─
12 to 24V DC ±10%, Ripple (P-P) 10% or less
≤ 40mA (With no load)
2 NPN or 2 PNP open collector
30V DC (at NPN output), 24V DC (at PNP output)
1~5V ( ± 2.5% F.S.)
About 1kΩ
4~20mA ( ± 2.5%)
Max.Load Impedance: 250Ω at power supply of 12V
Min.Load Impedance: 50Ω
±1% F.S.
Orange Indicator 1 : OUT1 & Orange Indicator 2 : OUT2
About 0.2s
± 2% F.S. ± 1 digit (ambient temperature: 25 ± 3°C)
±0.3% F.S. ±1 digit
-10 ~ 60°C (No condensation or freezing)
35 ~ 85% RH (No condensation)
250V AC in 1-min (between case and lead wire)
50MΩ (at 500V DC, between case and lead wire)
100m/s (10G), 3 times each in direction of X, Y and Z
2
±3% F.S. of detected pressure (25°C) at temp. Range of 0~50°C
F1:R1/4", M5 ; F2:NPT1/4", #10-32 UNF ; F3: G1/4"(BSPP), M5
F1C:Rc1/8"
Ø4 Oil-resistance cable ( PVC ) - 26 AWG ( 0.15 mm
Approx. 110g (Rear ported) ; Approx. 150g (Bottom ported)
KP50E
KP50EV- -
(Vacuum)
0.0 ~ -101.3kPa
10.0 ~ -101.3kPa
300 kPa
0.1
─
0.001
0.001
0.01
0.1
125 mA
≤ 1.5V
Yes
600Ω at power supply of 24V
IP65
0 ~ 50°C
) - 5 cores
2
Series
KP50EC- -
(Compound)
-100.0 ~ 100.0kPa
-101.0 ~ 101.0kPa
www.kita.com.tw
