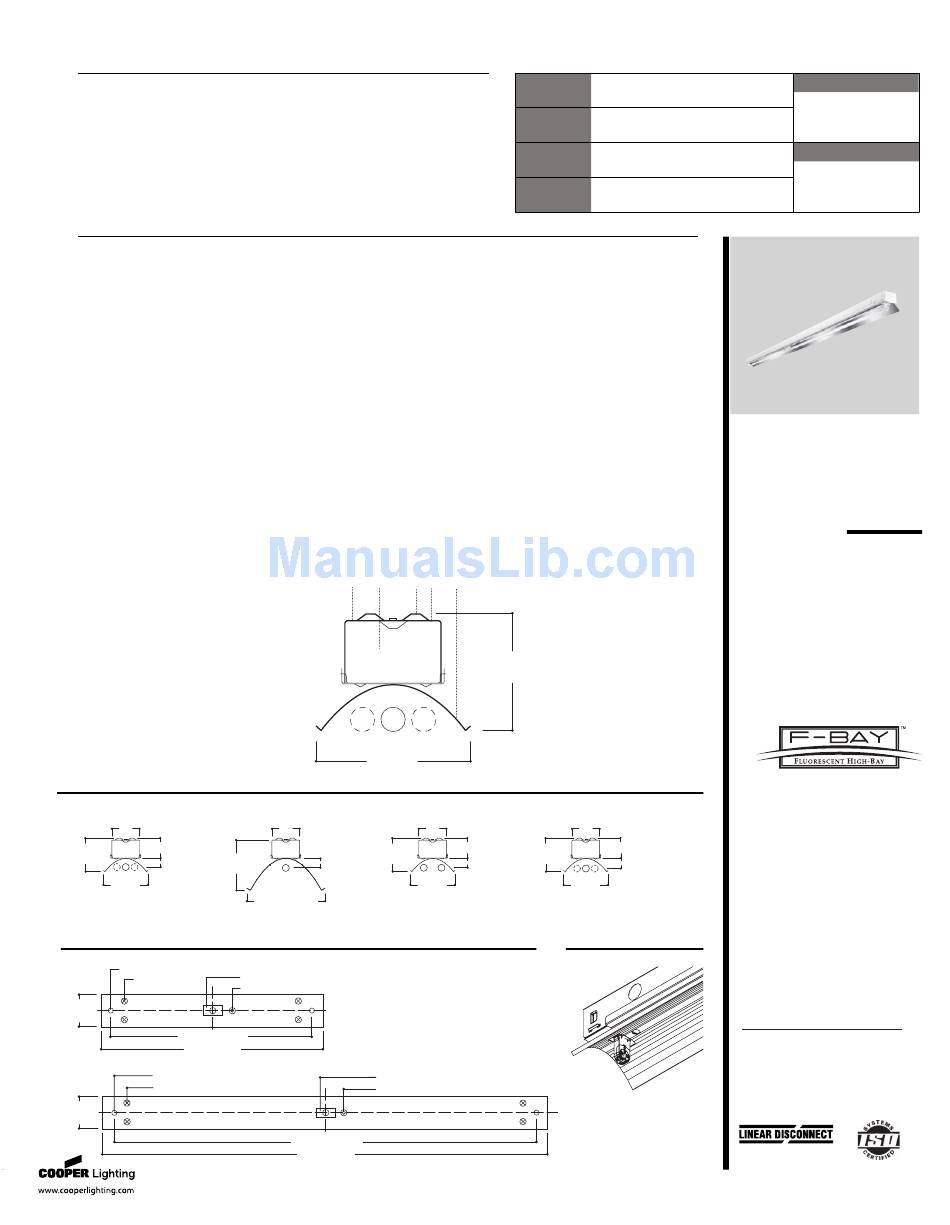

Cooper Lighting Metalux MB154 Specifications

DESCRIPTION
The MB series is a functional and multi-purpose narrow profile fluorescent
High-Bay that incorporates premium performance with durable
construction. Designed for T5 fluorescent technology, the MB series offers
both high performance and application versatility with three optical
configurations for general and aisle applications.
Illumination solution in commercial, industrial and retail applications, MB
series can be used in warehouses and retail store distribution centers.
SPECIFICATION FEATURES
A ... Construction
Die formed channel from 20 gauge
prime cold rolled steel. Numerous
KOs for ease of installation. End
plate quickly converts to snap-in
channel connector for continuous
row alignment. Push-in style
lampholders snap in to installed
tracks. Channel/wireway cover
positively secured with mechanical
fastener.
B ... Electrical*
Ballasts are Class "P" and are
positively secured. Rotor-lock
lampholders ensure positive lamp
retention. UL/CUL listed. Suitable
for damp locations.
C ... Finish
Multistage iron phosphate
pretreatment ensures maximum
bonding and rust inhibitor.
LAMP CONFIGURATIONS
Focus Beam 1 or 2 Lamp T5
X
1-31/32" [51mm]
3-9/32"
[84mm] 5-7/8"
1"
[150mm]
[26mm]
X=2-11/16"
4-5/16"
[69mm]
[110mm]
X=2-11/16"
[69mm]
MOUNTING DATA
7/8" [23mm] K.O. (3)
Ceiling Stand-Off
Embossments
2-11/16"
[69mm]
43-3/4" [1112mm]
48" [1220mm]
7/8" [22mm] K.O. (3)
Ceiling Stand-Off Embossments
2-11/16"
[68mm]
D ... Channel/Wireway Cover
Heavy gauge prime cold rolled
steel. Tight fit for ease of
maintenance.
E ... Reflector
Specular Miro reflectors for precise
light control minimum 95% total
reflectivity. Three optical
distribution patterns are available:
Focus - SC less than .9
Task - .9 less than or equal to SC
less than 1.2
Normal - 1.2 less than or equal to
SC less than or equal to 1.4
A B C D
F o c u s B e a m
4-5/16"
[110mm]
Task Beam 1 Lamp T5 Task Beam 2 Lamp T5
X
3-9/32"
1-3/16"
[84mm]
[30mm]
X=2-11/16"
[69mm]
[110mm]
7-7/32" [184mm]
1-3/4" x 3-1/4" K.O. (1)
Ground Screw Bump
1-3/4" x 3-1/4" K.O. (1)
Ground Screw Bump
91-3/4" [2330mm]
96" [2438mm]
Specifications and Dimensions subject to change without notice.
Consult your representative for additional options and finishes.
COOPER LIGHTING - METALUX
Catalog #
Project
Comments
Prepared by
F ... Mounting
Suspension is convenient and
flexible with the SS Aircraft Cable
"Y" Toggle Mounting Kits. Adjust-
ment for luminaire mounting
height is provided at luminaire
rather than structure. Order a rigid
exterior connector/coupling with
pre-punched holes to facilitate
easy installation of coupled
sections up to 32' long.
Option
Integral occupancy sensor avail-
able and provides from 600 sq. ft.
up to 1250 sq. ft. of coverage in a
maximum mounting height of 40'.
E
3-9/32"
[84mm]
Normal Beam 1 or 2 Lamp T5
X X
1-31/32" [51mm]
3-9/32"
[84mm]
1-3/16"
[31mm]
X=2-11/16"
4-5/16" 4-5/16"
[69mm]
[110mm]
ISOMETRIC VIEW
E N E R G Y D ATA
Input Watts @ 120V:
Electronic Ballast & STD Lamps
1-31/32" [51mm]
154 (62)
1-7/16"
254 (117)
[37mm]
454 (229)
8T154 (117)
8T254 (229)
Luminaire Efficacy Rating
LER = 69
Catalog Number: MB-154T5
Yearly Cost of 1000 lumens,
3000 hrs at .08 KWH = $3.47
Reference the lamp/ballast data in the
Technical Section for specific lamp/ballast
requirements.
LAMPS CONTAIN MERCURY. DISPOSE ACCORDING
TO LOCAL, STATE OR FEDERAL LAWS
Safe and convenient means of
disconnecting power
®
Type
Date
MB
154
254
4' OR 8' MICROBAY*
1 OR 2 LAMP
T5 Lamp Technology
Task Beam
Focus Beam
Normal Beam
*Patent Pending
