Summary of Contents for DirectOut Technologies EXBOX.GPIO

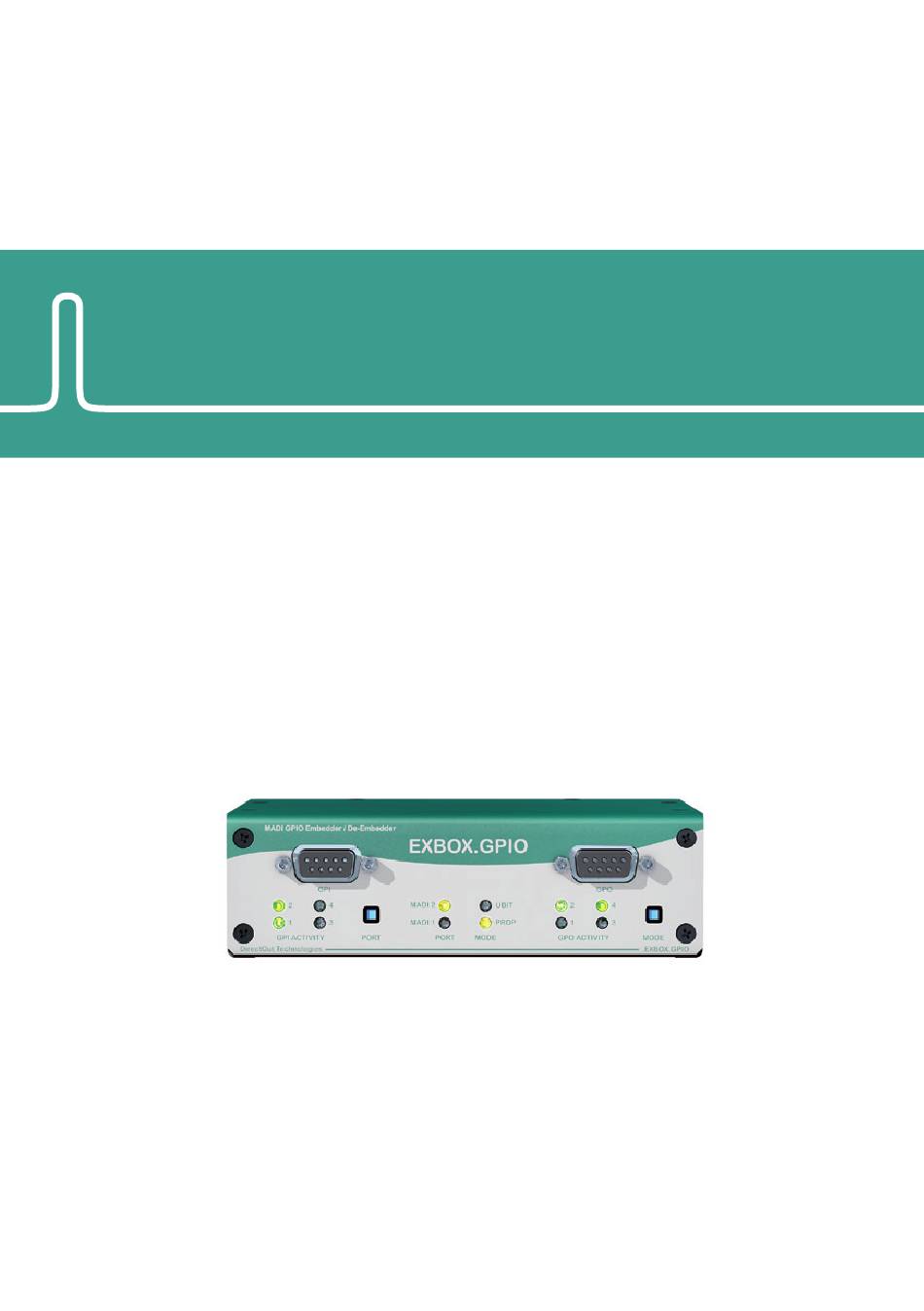

- Page 1 ® DirectOut Technologies EXBOX.GPIO Manual Version 1.0...
- Page 3 DirectOut GmbH reserves the right to change specifications at any time without notice. DirectOut Technologies® and D.O.TEC® are reg- istered trademarks of the DirectOut GmbH. © DirectOut GmbH, 2015 © 2015 DirectOut GmbH EXBOX.GPIO Manual Version 1.0...
-
Page 4: Table Of Contents
Conditions of Warranty Conformity & Certificates Contact CHAPTER 3: INSTALLATION Installing the Device CHAPTER 4: OPERATION Introduction Power supply Input / Output Port Selection Transmission Mode GPI Activity page 4 of 44 EXBOX.GPIO Manual Version 1.0 © 2015 DirectOut GmbH... - Page 5 Table of Contents GPO Activity CHAPTER 6: TROUBLESHOOTING AND MAINTE- NANCE Troubleshooting Maintenance TECHNICAL DATA APPENDIX A - WIRING SKETCHES Hirose HR10 (DC PSU) DSUB-9 - GPI / GPO INDEX © 2015 DirectOut GmbH EXBOX.GPIO Manual Version 1.0 page 5 of 44...
- Page 6 ® DirectOut Technologies Table of contents This page is left blank intentionally. page 6 of 44 EXBOX.GPIO Manual Version 1.0 © 2015 DirectOut GmbH...
-
Page 7: About This Manual
About This Manual How to Use This Manual This manual guides you through the installation and operation of the EXBOX.GPIO. Use the Table of Contents at the beginning of the man- ual or Index Directory (page 40) to locate help on a particular topic. -
Page 8: Chapter 1: Overview
The EXBOX.GPIO is a frontend for trigger signals that are processed within MADI streams. Applications The EXBOX.GPIO can be used to embed an input trig- ger (GPI) into a MADI signal and to output an incoming trigger from a MADI signal (GPO). -
Page 9: How It Works
The MADI ports are cross-connected; i.e. input port 1 feeds output port 2 and vice versa. MADI #1 MADI #1 MADI #2 MADI #2 EXBOX.GPIO *) Linked Port Selection Scheme © 2015 DirectOut GmbH EXBOX.GPIO Manual Version 1.0 page 9 of 44... -
Page 10: Feature Summary
firmware updates MADI formats 56/64 channel, 48k/96k Frame, S/MUX 2/4 Sample rates 44.1, 48, 88.2, 96, 176.4, 192 kHz +/-12.5% Power supply external, 2 x Hirose connector (9-24 V) page 10 of 44 EXBOX.GPIO Manual Version 1.0 © 2015 DirectOut GmbH... -
Page 11: Chapter 2: Legal Issues & Facts
80 %, non-con- densing. • The cabinet of the device will heat up. Do NOT place the device close to heat sources (e.g. heat- ers). Observe the environmental conditions. © 2015 DirectOut GmbH EXBOX.GPIO Manual Version 1.0 page 11 of 44... -
Page 12: Defective Parts/Modules
See „Chapter 6: Troubleshooting and Main- tenance“ on page 34 for assistance with trouble- shooting. page 12 of 44 EXBOX.GPIO Manual Version 1.0 © 2015 DirectOut GmbH... -
Page 13: First Aid (In Case Of Electric Shock)
Lay the body down and turn it to one side. Call for a doctor immediately. • Having sustained an electric shock, ALWAYS consult a doctor. © 2015 DirectOut GmbH EXBOX.GPIO Manual Version 1.0 page 13 of 44... -
Page 14: Contents
® DirectOut Technologies Chapter 2: Legal issues & facts Contents The contents of your EXBOX.GPIO package should include: • 1 x EXBOX.GPIO • 1 x external power supply unit (9-24 V) • 1 x Manual Updates DirectOut products are continually in development, and therefore the information in this manual may be superseded by new releases. -
Page 15: Intended Operation
® DirectOut Technologies Chapter 2: Legal issues & facts Intended Operation The EXBOX.GPIO is designed for processing trigger signals with MADI signals (AES10). Warning No compensation can be claimed for damages caused by operation of this unit other than for the intended use described above. -
Page 16: Conformity & Certificates
For correct recycling please dispatch the device to: IMM Elektronik GmbH, Leipziger Str. 32 09648 Mittweida Germany Only stamped parcels will be accepted! WEEE-Reg.-No. DE 93924963 page 16 of 44 EXBOX.GPIO Manual Version 1.0 © 2015 DirectOut GmbH... -
Page 17: Contact
Phone: +49 (0)3727 5665-100 // Fax: +49 (0)3727 5665-101 www.directout.eu Manufacturer: IMM Elektronik GmbH, Leipziger Str. 32, 09648 Mit- tweida, Germany Phone: +49 (0)3727 6205-0 // Fax: +49 (0)3727 6205- www.imm-gruppe.de © 2015 DirectOut GmbH EXBOX.GPIO Manual Version 1.0 page 17 of 44... -
Page 18: Chapter 3: Installation
5º C and 45º C and a maximum relative humid- ity of 80%, non-condensing. Ensure that the unit has suffi cient air circulation for cooling. page 18 of 44 EXBOX.GPIO Manual Version 1.0 © 2015 DirectOut GmbH... - Page 19 Only supply the voltages and signals indi- cated (9 - 24 V DC) to the device. Warning The connected power supply must provide a current limiting to a maximum of 2.5 A. © 2015 DirectOut GmbH EXBOX.GPIO Manual Version 1.0 page 19 of 44...
- Page 20 Retain the protective cap if the optical port is unused. This will protect against soiling which can lead to mal- function. Check the LED display on the front panel. page 20 of 44 EXBOX.GPIO Manual Version 1.0 © 2015 DirectOut GmbH...
- Page 21 Link: http://www.directout.eu/en/support/downloads/exbox_gpio.html Keep any packaging in order to protect the device should it need to be dispatched for service. © 2015 DirectOut GmbH EXBOX.GPIO Manual Version 1.0 page 21 of 44...
- Page 22 ® DirectOut Technologies Chapter 3: Installation This page is left blank intentionally. page 22 of 44 EXBOX.GPIO Manual Version 1.0 © 2015 DirectOut GmbH...
-
Page 23: Chapter 4: Operation
Connect the power supply here (9 V - 24 V). The device does not provide a power switch. Connect- ing a working power supply to the device will power up the device immediately. © 2015 DirectOut GmbH EXBOX.GPIO Manual Version 1.0 page 23 of 44... -
Page 24: Usb
Chapter 4: Operation USB socket (2.0, type Mini B) USB port - connect here for fi rmware updates and remote control ® Needs D.O.TEC USB Serial driver to be installed. page 24 of 44 EXBOX.GPIO Manual Version 1.0 © 2015 DirectOut GmbH... -
Page 25: Input / Output
® DirectOut Technologies Chapter 4: Operation Input / Output The EXBOX.GPIO detects the signal status of each MADI input. A LED indicates the lock status of each input discretely. MADI 1 OUT SC socket (optical) MADI output 1- connect here... - Page 26 LED ON = valid MADI signal Each MADI output is clocked by its corresponding MADI input. The MADI output is muted once no input signal has been detected. page 26 of 44 EXBOX.GPIO Manual Version 1.0 © 2015 DirectOut GmbH...
-
Page 27: Port Selection
This LED indicates the selection of MADI 1 port for de-embedding and embedding of trigger signals. LED OFF = MADI input 2 is not selected. LED ON = MADI input 2 is selected. © 2015 DirectOut GmbH EXBOX.GPIO Manual Version 1.0 page 27 of 44... -
Page 28: Transmission Mode
LED ON = UBIT used LED PROP This LED indicates the use of PROP as transmission method. LED OFF = PROP not used LED ON = PROP used page 28 of 44 EXBOX.GPIO Manual Version 1.0 © 2015 DirectOut GmbH... - Page 29 ® DirectOut Technologies Chapter 4: Operation This page is left blank intentionally. © 2015 DirectOut GmbH EXBOX.GPIO Manual Version 1.0 page 29 of 44...
-
Page 30: Gpi
The trigger state of each GPI is indicated by individual LEDs - see „GPI Activity“ on page 31. See „DSUB-9 - GPI / GPO“ on page 39 for wiring details. page 30 of 44 EXBOX.GPIO Manual Version 1.0 © 2015 DirectOut GmbH... -
Page 31: Gpi Activity
LED OFF = trigger off LED ON = trigger on LED 4 This LED indicates the trigger state of GPI 4. LED OFF = trigger off LED ON = trigger on © 2015 DirectOut GmbH EXBOX.GPIO Manual Version 1.0 page 31 of 44... -
Page 32: Gpo
The trigger state of each GPO is indicated by individual LEDs - see „GPO Activity“ on page 33. See „DSUB-9 - GPI / GPO“ on page 39 for wiring details. page 32 of 44 EXBOX.GPIO Manual Version 1.0 © 2015 DirectOut GmbH... -
Page 33: Gpo Activity
LED OFF = trigger off LED ON = trigger on LED 4 This LED indicates the trigger state of GPO 4. LED OFF = trigger off LED ON = trigger on © 2015 DirectOut GmbH EXBOX.GPIO Manual Version 1.0 page 33 of 44... -
Page 34: Chapter 6: Troubleshooting And Maintenance
Use an air supply to output port. signal cable are dirty. carefully remove any dust. Never use objects for cleaning. Exchange the signal cable. Always use protecting caps. page 34 of 44 EXBOX.GPIO Manual Version 1.0 © 2015 DirectOut GmbH... -
Page 35: Maintenance
To clean the device, use a soft, dry cloth. To protect the surface, avoid using cleaning agents. The device should be disconnected from the power supply during the cleaning process. © 2015 DirectOut GmbH EXBOX.GPIO Manual Version 1.0 page 35 of 44... -
Page 36: Technical Data
The connected power supply must provide a current limiting to a maximum of 2.5 A. Environmental conditions • Operating temperature +5°C up to +45°C • Relative humidity: 10% - 80%, non-condensing page 36 of 44 EXBOX.GPIO Manual Version 1.0 © 2015 DirectOut GmbH... - Page 37 • 4 x Voltage input 2 V - 24 • 1 x DSUB-9 socket female • 4 x FET Switch (0 V - 24 V) • 1 x Voltage Source (5 V, max 200 mA) © 2015 DirectOut GmbH EXBOX.GPIO Manual Version 1.0 page 37 of 44...
-
Page 38: Appendix A - Wiring Sketches
DC + DC - DC - To ensure proper operation all pins should be connected. Ground is connected with the chassis of the plug (safe- ty class 1). page 38 of 44 EXBOX.GPIO Manual Version 1.0 © 2015 DirectOut GmbH... -
Page 39: Dsub-9 - Gpi / Gpo
GPO - General Purpose Output Signal Effect 5P (+5 V) 5P (+5 V) GND (FET) GPO 1 GND (FET) GPO 2 GND (FET) GPO 3 GND (FET) GPO 4 © 2015 DirectOut GmbH EXBOX.GPIO Manual Version 1.0 page 39 of 44... -
Page 40: Index
Dimensions ______________________ 36 Environmental conditions ________ 18, 36 Feature summary _________________ 10 Firmware ________________________ 21 First Aid _________________________ 13 GPI ____________________________ 30 GPO ___________________________ 32 Intended operation ________________ 15 page 40 of 44 EXBOX.GPIO Manual Version 1.0 © 2015 DirectOut GmbH... - Page 41 Scheme __________________________ 9 Servicing ________________________ 12 Sketch DSUB-9 ............39 Hirose ............38 Technical data ____________________ 36 Troubleshooting ___________________ 34 Updates _________________________ 14 USB ____________________________ 37 Warranty ________________________ 15 © 2015 DirectOut GmbH EXBOX.GPIO Manual Version 1.0 page 41 of 44...
- Page 42 ® DirectOut Technologies Index page 42 of 44 EXBOX.GPIO Manual Version 1.0 © 2015 DirectOut GmbH...
- Page 43 ® DirectOut Technologies Notes © 2015 DirectOut GmbH EXBOX.GPIO Manual Version 1.0 page 43 of 44...
