- Page 1 BREAKOUT Series Hardware Guide Version 2.0...
- Page 2 DirectOut GmbH cannot be held responsible for any misleading or incorrect information provided throughout this manual. DirectOut GmbH reserves the right to change specifications at any time without notice. DirectOut Technologies® is a registered trademark of the DirectOut GmbH. © DirectOut GmbH, 2021 page 2 of 16...
-
Page 3: Table Of Contents
Conformity & Certificates ................10 Contact ......................10 Contents ..................... 11 Accessories ....................11 Chapter 3: Installation Installing the Device ................... 12 CHAPTER 4: Technical Data Appendix A - DSUB-25 Pin assignment BREAKOUT Series Hardware Guide - Version 2.0 page 3 of 16... - Page 4 This page is left blank intentionally. page 4 of 16 BREAKOUT Series Hardware Guide - Version 2.0...
-
Page 5: About This Manual
N OT E S are used for important points of clarification or cross references. WAR NI N GS! alert you when an action should always be observed. BREAKOUT Series Hardware Guide - Version 2.0 page 5 of 16... -
Page 6: Chapter 1: Overview

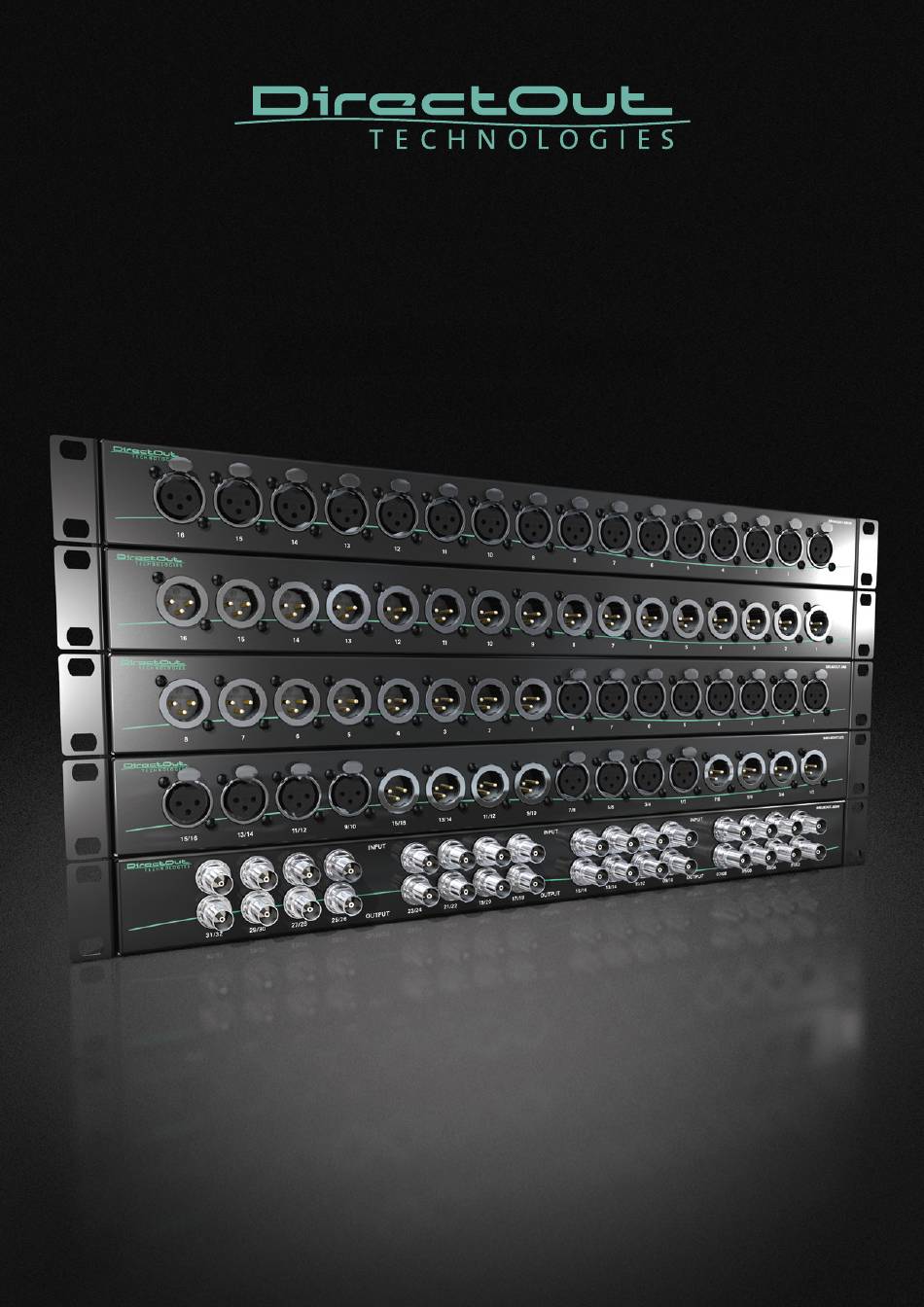

Chapter 1: Overview Introduction The BREAKOUT series is a range of adaptor boxes available in different variants to extend the coverage of the ANDIAMO and PRODIDGY series. They are equipped with XLR or BNC connectors on the front panel and DSUB-25 connectors on the rear panel. -
Page 7: Feature Summary
4 x DSUB-25 (AES59 digital pinout - 'TASCAM') * Impedance and level are adapted according the specific format. AES3: 110 Ω, 2-7 Vp-p < > AES3id: 75 Ω, 1 Vp-p BREAKOUT Series Hardware Guide - Version 2.0 page 7 of 16... -
Page 8: Chapter 2: Legal Issues & Facts
We would like to remind you to please check carefully whether the failure is caused by erroneous configuration, operation or connection before sending parts for repair. page 8 of 16 BREAKOUT Series Hardware Guide - Version 2.0... -
Page 9: Intended Operation
CHAPTER 2: Legal issues & facts Intended Operation The BREAKOUT series is designed for passive adaption of analog or digital audio (AES3, AES3id) signals. Updates DirectOut products are continually in development, and therefore the information in this manual may be superseded by new releases. To access the latest documentation, please visit the DirectOut website: www.directout.eu... -
Page 10: Conformity & Certificates
Only stamped parcels will be accepted! WEEE-Reg.-No. DE 64879540 Contact DirectOut GmbH Leipziger Str. 32, 09648 Mittweida, Germany Phone: +49 (0)3727 5665-100 Fax: +49 (0)3727 5665-101 Mail: sales@directout.eu www.directout.eu page 10 of 16 BREAKOUT Series Hardware Guide - Version 2.0... -
Page 11: Contents
DOCAA0332 BREAKOUT.AES or AESid transferring 8 audio channels, length 0.5 m DSUB25.AES100 Digital patch cable for connection with DOCAA0333 BREAKOUT.AES or AESid transferring 8 audio channels, length 0.5 m BREAKOUT Series Hardware Guide - Version 2.0 page 11 of 16... -
Page 12: Chapter 3: Installation
Connect the DSUB-25 ports using appropriate DSUB-25 cables with AES59 pinout. For connection with PRODIGY Series or ANDIAMO Series patch chords with DSUB-25 male to DSUB-25 male connectors are required. page 12 of 16 BREAKOUT Series Hardware Guide - Version 2.0... - Page 13 STP 110 Ω for AES3 signals or coaxial cables 75 Ω for AES3id signals. use shielded twisted pair (STP) cable use shielded twisted pair (STP) cable 110 Ω use coaxial bnc cable 75 Ω Switch on the connected device(s). BREAKOUT Series Hardware Guide - Version 2.0 page 13 of 16...
-
Page 14: Chapter 4: Technical Data
• 4 x DSUB-25 (AES59 digital pinout, ' TASCAM') Cable Specifications • coaxial cable - impedance 75 Ω, screening attenuation better than 85 dB • shielded twisted pair (analog) • shielded twisted pair, impedance 110 Ω (digital) page 14 of 16 BREAKOUT Series Hardware Guide - Version 2.0... -
Page 15: Appendix A - Dsub-25 Pin Assignment
CH 1 OUT + CH 4 − CH 4 IN − CH 3 + CH 3 IN + CH 2 − CH 2 IN − CH 1 + CH 1 IN + BREAKOUT Series Hardware Guide - Version 2.0 page 15 of 16... - Page 16 DirectOut GmbH Leipziger Strasse 32 T: +49-3727-5665-100 09648 Mittweida F: +49-3727-5665-101 Germany www.directout.eu...
