Nokia 6103 Manual

Quick Start Guide

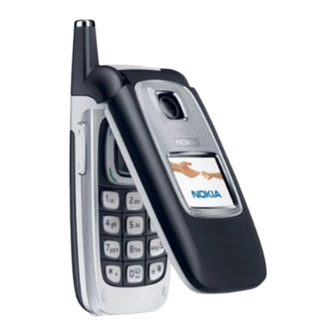

Welcome to the Nokia 6103 phone!
Use this guide to:
• Get familiar with your Nokia 6103 phone
• Install the SIM card
• Insert and charge the battery
• Send an audio message
• Take pictures and send a multimedia message
• Pair with a Nokia Bluetooth headset
All screen images are simulated.
9248385. Printed in Mexico.
1 1 1 1
Check it out! Check it out!
1 Camera lens
Lens for taking pictures.
2 Camera release key
Press and hold to quickly take pictures.
3 Infrared
Use to exchange data with other compatible Nokia phones or
your compatible PC.
4 Mini display
View the clock and caller ID without opening your phone.
5 Main display
6 Left and right selection keys
Press to access the option shown above the key.
Tip! When the phone is open, press the
during a call and talk handsfree.
Volume key
7
In the open or closed position, press up to increase the
volume or down to decrease the volume.
4-way navigation key with center selection key
8
Activate the camera
View your contacts
Compose a message
Create a voice message
Talk and End keys
9
Press the Talk key to make a call or to answer an incoming call.
Press the End key to end a call, or press and hold to return to
the idle screen.
Power key
10
Press and hold to turn phone on or off.
2 2
2 2
Install the SIM card Install the SIM card
Your Nokia 6103 phone uses a convenient SIM card, which holds
information about your wireless service and stores contact
information. That means you can transfer your service and
contacts to your phone simply by inserting your SIM card!
Insert the SIM card
1. With the back of the phone facing you, push down the release
button on the back cover.
2. Slide the cover off in the direction shown (fig. 2.1).
3. After removing the battery, open the SIM card holder by pressing
the release button and lifting the holder up (fig. 2.2).
4. Insert the SIM card with the gold-colored contact area facing
downwards and the beveled edge pointing towards the top of
the phone (fig. 2.3).
5. Close the SIM card holder.
3 3
3 3
Insert and charge the battery Insert and charge the battery
Insert and charge the battery
1. Align the gold-colored contacts of the battery with the battery
compartment contacts. Press the battery into place (fig. 3.1).
2. Replace the back cover by aligning the tabs, then sliding the cover
into place until it locks.
3. Plug the Nokia AC-3 charger into a standard AC wall outlet (fig. 3.2).
4. Connect the charger cable to the bottom of the Nokia 6103 phone.
Tip! Allow the battery to fully charge before using your
Nokia 6103 phone.
5. After your phone is fully charged, turn it on. You will be prompted to
set the time and date.
Recharge the battery
Recharging time is approximately 90 minutes while the phone is
in standby mode. While charging is in progress, the battery charge
indicator scrolls on the phone display. It stops scrolling when
the battery is fully charged.
Battery charge time information is provided for comparison purposes. For complete
battery information and a list of major factors impacting charge times, please refer to
www.nokiausa.com/support.
Camera release key
Infrared
(On side)
fig. 2.1
fig. 2.2
fig. 2.3
fig. 3.1
fig. 3.2
Charger
