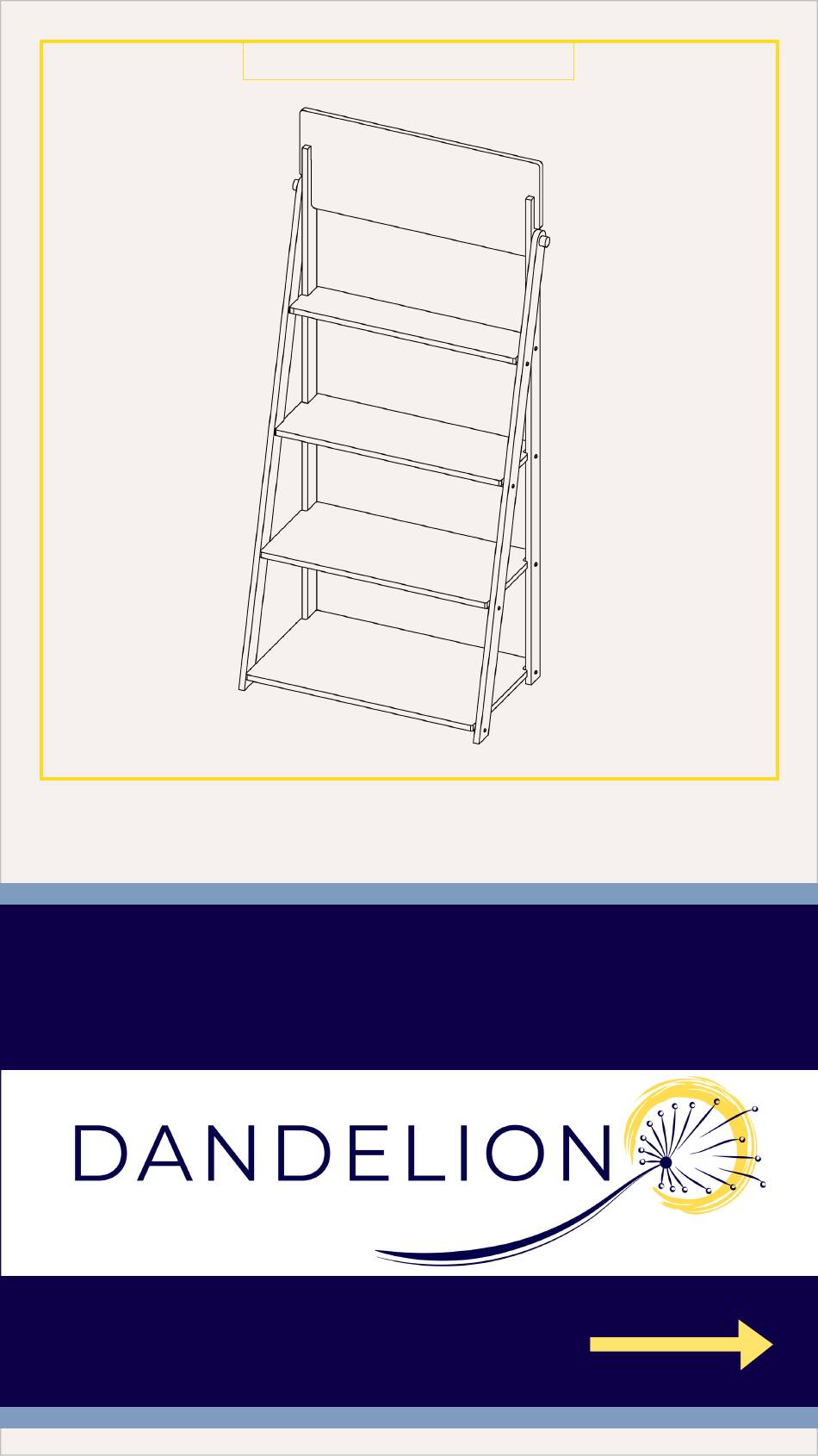

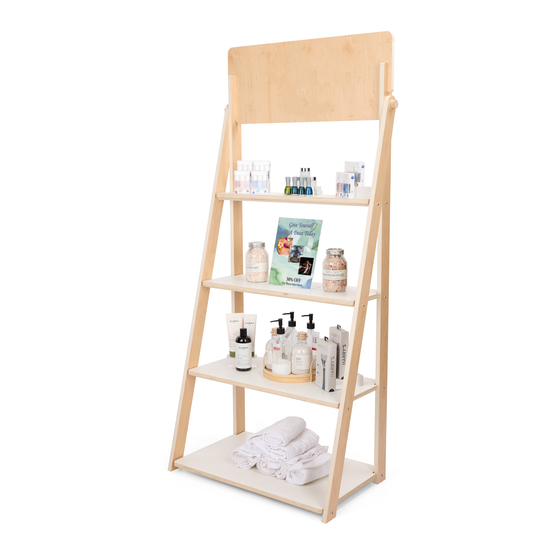

- Page 1 Unwind Collection Unwind Collection SKU: DBUSHLV SKU: DBUSHLV DBUSHLVCP DBUSHLVCP FLOOR STANDING SHELF DISPLAY WITH HEADER FLOOR STANDING SHELF DISPLAY WITH HEADER USER GUIDE USER GUIDE RESPONSIBLY CREATING BETTER PRODUCTS FOR A BETTER WORLD...
- Page 2 Table of Contents Parts Diagram Parts Diagram Assembly Assembly Instructions Instructions Contact Us Contact Us USER GUIDE USER GUIDE...
- Page 3 C1. Shorter Bar - Back x4 C2. Longer Bar - Front x4 D. Shelf x4 E. Header x1 A. Front B. Back Legs x2 Legs x2 H. Hex Wrench F. Screw x16 G. End Cap x2 PARTS DIAGRAM PARTS DIAGRAM...
- Page 4 IMPORTANT!! Identify the longer bars and the shorter bars needed for each step. 1. Connect 2 front legs (A) with 4 longer bars (C2) using 8 screws (F) and hex wrench (H). 2. Connect 2 back legs (B) with 4 shorter bars (C1) using 8 screws (F) and hex wrench (H). ASSEMBLY ASSEMBLY INSTRUCTIONS...
- Page 5 3. Align the holes at top on both frame and use end cups (G) to secure the shelf frame from both sides. 4. Place shelves (D) onto the supporting bars, one at a time. ASSEMBLY ASSEMBLY INSTRUCTIONS INSTRUCTIONS...
- Page 6 5. Attach the header (E) to the top of the frame. Press down to make sure the header fit securely. Use a rubber mallet (not included) as needed. 6. The assembly is finished. ASSEMBLY ASSEMBLY INSTRUCTIONS INSTRUCTIONS...
- Page 7 AND HELPING TO PROTECT AND HELPING TO PROTECT OUR PLANET. OUR PLANET. DANDELIO N Have a question? Get in touch with Have a question? Get in touch with our Dandelion representatives at: our Dandelion representatives at: 888-257-6639 888-257-6639 CONTACT US CONTACT US...
