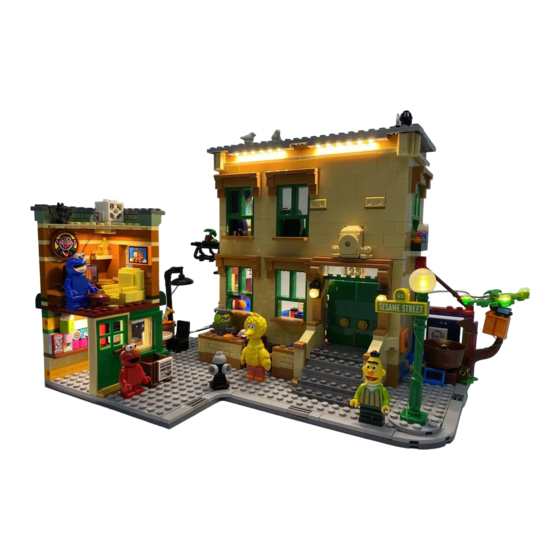

L EGO 12 3 SE S A ME S T RE E T 21324 L IGH T K I T INS TA L L AT IO N GUID E
Light My Bricks
INS TA L L AT IO N GUID E
LEGO
123 Sesame Street
®
21324 Light Kit Installation
Guide
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 123 Sesame Street 21324 Light Kit and is the answer not in the manual?

Questions and answers

Related Manuals for LIGHT MY BRICKS 123 Sesame Street 21324 Light Kit

Summary of Contents for LIGHT MY BRICKS 123 Sesame Street 21324 Light Kit

  • Page 1 L EGO 12 3 SE S A ME S T RE E T 21324 L IGH T K I T INS TA L L AT IO N GUID E INS TA L L AT IO N GUID E Light My Bricks LEGO 123 Sesame Street ®...
  • Page 2 L EGO 12 3 SE S A ME S T RE E T 21324 L IGH T K I T INS TA L L AT IO N GUID E INS TA L L AT IO N GUID E PAC K AGE C O N T E N T S Hi There, we’re Light My Bricks! PACKAGE CONTENTS: 8 x White 30cm Bit Lights 2 x White 15cm Bit Lights We’re here to help you get started on...
  • Page 3 L EGO 12 3 SE S A ME S T RE E T 21324 L IGH T K I T INS TA L L AT IO N GUID E INS TA L AT IO N GUID E C O N T E N T S Contents Before You Begin Instructions...
  • Page 4 L EGO 12 3 SE S A ME S T RE E T 21324 L IGH T K I T INS TA L L AT IO N GUID E INS TA L AT IO N GUID E BE FO RE YO U BEGIN Before You Begin LAYING CABLES IN BETWEEN CONNECTING CABLE CONNECTORS...
  • Page 5 L EGO 12 3 SE S A ME S T RE E T 21324 L IGH T K I T INS TA L L AT IO N GUID E INS TA L AT IO N GUID E BE FO RE YO U BEGIN Before You Begin CONNECTING CABLE CONNECTORS CONNECTING MICRO CABLE...
  • Page 6 L EGO 12 3 SE S A ME S T RE E T 21324 L IGH T K I T INS TA L L AT IO N GUID E INS TA L AT IO N GUID E BE FO RE YO U BEGIN Before You Begin INSTALLING BIT LIGHTS UNDER LEGO®...
  • Page 7 L EGO 12 3 SE S A ME S T RE E T 21324 L IGH T K I T INS TA L L AT IO N GUID E INS TA L L AT IO N GUID E S T E P S Instructions To ensure a smooth installation of your light kit,...
  • Page 8 L EGO 12 3 SE S A ME S T RE E T 21324 L IGH T K I T INS TA L L AT IO N GUID E INS TA L L AT IO N GUID E S T E P S Green Round Brick 1x1 Green Lamp Post w Large Bit Light Installed...
  • Page 9 L EGO 12 3 SE S A ME S T RE E T 21324 L IGH T K I T INS TA L L AT IO N GUID E INS TA L L AT IO N GUID E S T E P S LEGEND: DISCONNECT CONNECT / RECONNECT...
  • Page 10 L EGO 12 3 SE S A ME S T RE E T 21324 L IGH T K I T INS TA L L AT IO N GUID E INS TA L L AT IO N GUID E S T E P S 8-Port Expansion Board White 30cm Bit Light Trans Dark Green Round...
  • Page 11 L EGO 12 3 SE S A ME S T RE E T 21324 L IGH T K I T INS TA L L AT IO N GUID E INS TA L AT IO N GUID E S T E P S LEGEND: DISCONNECT CONNECT / RECONNECT...
  • Page 12 L EGO 12 3 SE S A ME S T RE E T 21324 L IGH T K I T INS TA L L AT IO N GUID E INS TA L AT IO N GUID E S T E P S LEGEND: DISCONNECT CONNECT / RECONNECT...
  • Page 13 L EGO 12 3 SE S A ME S T RE E T 21324 L IGH T K I T INS TA L L AT IO N GUID E INS TA L L AT IO N GUID E S T E P S LEGEND: DISCONNECT CONNECT / RECONNECT...
  • Page 14 L EGO 12 3 SE S A ME S T RE E T 21324 L IGH T K I T INS TA L L AT IO N GUID E INS TA L AT IO N GUID E S T E P S LEGEND: DISCONNECT CONNECT / RECONNECT...
  • Page 15 L EGO 12 3 SE S A ME S T RE E T 21324 L IGH T K I T INS TA L L AT IO N GUID E INS TA L L AT IO N GUID E S T E P S White 30cm Bit Light Trans Clear Plate 2x2 w Warm White 30cm Large Bit Light...
  • Page 16 L EGO 12 3 SE S A ME S T RE E T 21324 L IGH T K I T INS TA L L AT IO N GUID E INS TA L AT IO N GUID E S T E P S LEGEND: DISCONNECT CONNECT / RECONNECT...
  • Page 17 L EGO 12 3 SE S A ME S T RE E T 21324 L IGH T K I T INS TA L L AT IO N GUID E INS TA L L AT IO N GUID E S T E P S 15cm Connecting Cable 6-Port Expansion Board Adhesive Squares x 2...
  • Page 18 L EGO 12 3 SE S A ME S T RE E T 21324 L IGH T K I T INS TA L L AT IO N GUID E INS TA L AT IO N GUID E S T E P S LEGEND: DISCONNECT CONNECT / RECONNECT...
  • Page 19 L EGO 12 3 SE S A ME S T RE E T 21324 L IGH T K I T INS TA L L AT IO N GUID E INS TA L L AT IO N GUID E S T E P S White 30cm Bit Light LEGEND: DISCONNECT...
  • Page 20 L EGO 12 3 SE S A ME S T RE E T 21324 L IGH T K I T INS TA L L AT IO N GUID E INS TA L AT IO N GUID E S T E P S LEGEND: DISCONNECT CONNECT / RECONNECT...
  • Page 21 L EGO 12 3 SE S A ME S T RE E T 21324 L IGH T K I T INS TA L L AT IO N GUID E INS TA L L AT IO N GUID E S T E P S LEGEND: DISCONNECT CONNECT / RECONNECT...
  • Page 22 L EGO 12 3 SE S A ME S T RE E T 21324 L IGH T K I T INS TA L L AT IO N GUID E INS TA L L AT IO N GUID E S T E P S White 30cm Bit Light Black 1×1 Mod Plate Rounded w Handle x2 Black Round Plate 1x1 w open stud...
  • Page 23 L EGO 12 3 SE S A ME S T RE E T 21324 L IGH T K I T INS TA L L AT IO N GUID E INS TA L L AT IO N GUID E S T E P S LEGEND: DISCONNECT CONNECT / RECONNECT...
  • Page 24 L EGO 12 3 SE S A ME S T RE E T 21324 L IGH T K I T INS TA L L AT IO N GUID E INS TA L AT IO N GUID E S T E P S LEGEND: DISCONNECT CONNECT / RECONNECT...
  • Page 25 L EGO 12 3 SE S A ME S T RE E T 21324 L IGH T K I T INS TA L L AT IO N GUID E INS TA L L AT IO N GUID E S T E P S White 15cm Bit Light Adhesive Squares x 2 LEGEND:...
  • Page 26 L EGO 12 3 SE S A ME S T RE E T 21324 L IGH T K I T INS TA L L AT IO N GUID E INS TA L AT IO N GUID E S T E P S LEGEND: DISCONNECT CONNECT / RECONNECT...
  • Page 27 L EGO 12 3 SE S A ME S T RE E T 21324 L IGH T K I T INS TA L L AT IO N GUID E INS TA L AT IO N GUID E S T E P S LEGEND: DISCONNECT CONNECT / RECONNECT...
  • Page 28 L EGO 12 3 SE S A ME S T RE E T 21324 L IGH T K I T INS TA L L AT IO N GUID E INS TA L L AT IO N GUID E S T E P S Warm White 30cm Large Bit Light White 30cm Bit Light Trans Clear Plate 2x2 w...
  • Page 29 L EGO 12 3 SE S A ME S T RE E T 21324 L IGH T K I T INS TA L L AT IO N GUID E INS TA L AT IO N GUID E S T E P S LEGEND: DISCONNECT CONNECT / RECONNECT...
  • Page 30 L EGO 12 3 SE S A ME S T RE E T 21324 L IGH T K I T INS TA L L AT IO N GUID E INS TA L L AT IO N GUID E S T E P S Adhesive Squares x 2 LEGEND: DISCONNECT...
  • Page 31 L EGO 12 3 SE S A ME S T RE E T 21324 L IGH T K I T INS TA L L AT IO N GUID E INS TA L AT IO N GUID E F IN A L PRO D U C T Final Product This finally completes installation of the Light My Bricks 123 Sesame Street 21324 Light Kit.
  • Page 32 User Guide to help prevent faults and damages to your Light My Bricks components. If you are experiencing issues with your Light My Bricks set, watch our troubleshooting video here or read on for a list of common causes to help you troubleshoot.
  • Page 33 L EGO 12 3 SE S A ME S T RE E T 21324 L IGH T K I T INS TA L L AT IO N GUID E INS TA L AT IO N GUID E T RO U BL E SH O OT ING Troubleshooting Firstly, ensure that the CHECK FOR CR2032 BATTERIES...
  • Page 34 L EGO 12 3 SE S A ME S T RE E T 21324 L IGH T K I T INS TA L L AT IO N GUID E INS TA L AT IO N GUID E T RO U BL E SH O OT ING Troubleshooting CHECK FOR CR2032 BATTERIES CHECK FOR AA BATTERIES...
  • Page 35 In order for Light My Bricks components to fit in between and underneath LEGO® bricks, the components need to be very small. Due to this nature, Light My Bricks components can be easily damaged when not handled correctly. Be careful when removing unpacked...
  • Page 36 L EGO 12 3 SE S A ME S T RE E T 21324 L IGH T K I T INS TA L L AT IO N GUID E INS TA L AT IO N GUID E T RO U BL E SH O OT ING Troubleshooting CHECK YOUR EXPANSION BOARD Not only will a light connected to the...
  • Page 37 L EGO 12 3 SE S A ME S T RE E T 21324 L IGH T K I T INS TA L L AT IO N GUID E INS TA L L AT IO N GUID E C O N TAC T Contact Us If you have an enquiry regarding the online shop, our products or a general...
