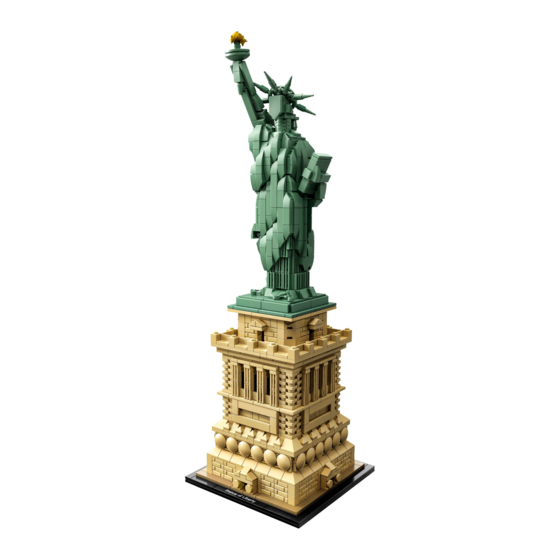

- Page 1 LEGO® STATUE OF LIBERTY #21042 LIGHT KIT INSTALLATION GUIDE...
- Page 2 LEGO STATUE OF LIBERTY 21042 LIGHT KIT INSTALL GUIDE Light My Bricks LEGO® STATUE OF LIBERTY #21042 LIGHT KIT INSTALLATION GUIDE Hi There! We’re here to help you get started on the LEGO® Statue of Liberty (21042) Light Kit. This PDF details the instructions for the LED light kit only. If you are wishing to purchase this product, please click here to view the product page.
- Page 3 LEGO STATUE OF LIBERTY 21042 LIGHT KIT INSTALL GUIDE PACKAGE CONTENTS: LEGO PIECES: • 2 x Plate 1x1 Mod Rounded w Handle - Black 1 x Bit Light - White 30cm • 2 x Tile 1x1 w Clip Round Edges - Black 1 x Large Bit Light - Warm White 30cm •...
-
Page 4: Table Of Contents
LEGO STATUE OF LIBERTY 21042 LIGHT KIT INSTALL GUIDE Contents Before You Begin Instructions Final Product Troubleshooting Contact CONTENTS... -
Page 5: Before You Begin
LEGO STATUE OF LIBERTY 21042 LIGHT KIT INSTALL GUIDE Before You Begin Laying cables in between Connecting Cable and underneath bricks Connectors To Expansion Boards Cables can fit in between and underneath LEGO® bricks, plates, and tiles providing Take extra care when inserting connectors they are laid correctly between the to ports of Expansion Boards. - Page 6 LEGO STATUE OF LIBERTY 21042 LIGHT KIT INSTALL GUIDE Before You Begin Connecting Cable Connecting Micro Cable Connectors To Strip Lights Connectors To Micro Expansion Board Ports Take extra care when inserting connectors to ports on the Strip Lights. Connectors Take extra care when inserting the can be inserted only one way.
- Page 7 LEGO STATUE OF LIBERTY 21042 LIGHT KIT INSTALL GUIDE Before You Begin Installing Bit Lights Under Lego® Bricks And Plates When installing Bit Lights under LEGO® pieces, ensure they are placed the correct way up (Yellow LED component exposed). You can either place them directly on top of LEGO®...
-
Page 8: Instructions
LEGO STATUE OF LIBERTY 21042 LIGHT KIT INSTALL GUIDE INSTRUCTIONS To ensure a smooth installation of your light kit, please read and follow each step carefully. If you run into any issues, please refer to the online troubleshooting guide. INSTRUCTIONS... - Page 9 LEGO STATUE OF LIBERTY 21042 LIGHT KIT INSTALL GUIDE Connect 8 of the 1x1 Plates removed at the beginning of this step, in the positions shown. Legend CONNECT / DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST...
- Page 10 LEGO STATUE OF LIBERTY 21042 LIGHT KIT INSTALL GUIDE White Strip Light 5cm Connecting Cable 5cm Connecting Cable White Strip Light White Strip Light 15cm Connecting Cable 5cm Connecting Cable White Strip Light Legend CONNECT / DISCONNECT TURN / FLIP...
- Page 11 LEGO STATUE OF LIBERTY 21042 LIGHT KIT INSTALL GUIDE If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board).
- Page 12 LEGO STATUE OF LIBERTY 21042 LIGHT KIT INSTALL GUIDE Black Round Plate 1x1 Cool White 30cm Large Bit Light w/ Open Stud Black 1x1 Plate Modified Plate Rounded w/ Handle • Black 1x1 Tile w/ Clip Rounded Edges Legend CONNECT /...
- Page 13 LEGO STATUE OF LIBERTY 21042 LIGHT KIT INSTALL GUIDE If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board).
- Page 14 LEGO STATUE OF LIBERTY 21042 LIGHT KIT INSTALL GUIDE White 30cm Bit Light Trans Orange Round Plate 1x1 Legend CONNECT / DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
- Page 15 LEGO STATUE OF LIBERTY 21042 LIGHT KIT INSTALL GUIDE 2-Port Expansion Board Warm White 30cm Large Bit Light Adhesive Square 5cm Connecting Cable Legend CONNECT / DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT...
- Page 16 LEGO STATUE OF LIBERTY 21042 LIGHT KIT INSTALL GUIDE Legend CONNECT / DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
- Page 17 LEGO STATUE OF LIBERTY 21042 LIGHT KIT INSTALL GUIDE If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board).
-
Page 18: Final Product
LEGO STATUE OF LIBERTY 21042 LIGHT KIT INSTALL GUIDE FINAL PRODUCT This finally completes installation of the Light My Bricks Statue of Liberty 21042 Light Kit. FINAL PPRODUCT... -
Page 19: Troubleshooting
LEGO STATUE OF LIBERTY 21042 LIGHT KIT INSTALL GUIDE TROUBLESHOOTING Light My Bricks lighting To prevent unnecessary If you are experiencing kits contain individual damage to components, issues with your Light components that are very we highly recommend that My Bricks set, watch our... - Page 20 LEGO STATUE OF LIBERTY 21042 LIGHT KIT INSTALL GUIDE Troubleshooting Firstly, ensure that the Check For CR2032 Batteries batteries have power using a Using The Flat Battery Pack battery charge gauge. Inside the battery pack is a symbol indicating which side the (round) CR2032 If the batteries have no power, battery should be inserted.
- Page 21 LEGO STATUE OF LIBERTY 21042 LIGHT KIT INSTALL GUIDE Troubleshooting Check For Cr2032 Batteries Check for AA batteries Using The Round Battery using the AA battery pack Pack Inside the battery pack are symbols indicating which direction the AA battery Inside the battery pack is a symbol indicating should be inserted.
- Page 22 LEGO STATUE OF LIBERTY 21042 LIGHT KIT INSTALL GUIDE Troubleshooting Check Your Wires In order for Light My Bricks components to fit If the wiring is detached from the LED itself, the in between and underneath LEGO® bricks, the light will not operate.
- Page 23 LEGO STATUE OF LIBERTY 21042 LIGHT KIT INSTALL GUIDE Troubleshooting Check Your Expansion Board A short circuit can also result in overheating of the board, cable or Ports/ Strip Light Ports / batteries. If you suspect a short circuit, Effects Board Ports...
-
Page 24: Contact
LEGO STATUE OF LIBERTY 21042 LIGHT KIT INSTALL GUIDE CONTACT US If you have an enquiry regarding the online shop, our products or a general enquiry please refer to our Frequently Asked Questions webpage here. Alternatively, you can contact our Customer Services team by visiting our online support portal here. - Page 25 lightmybricks.com...
