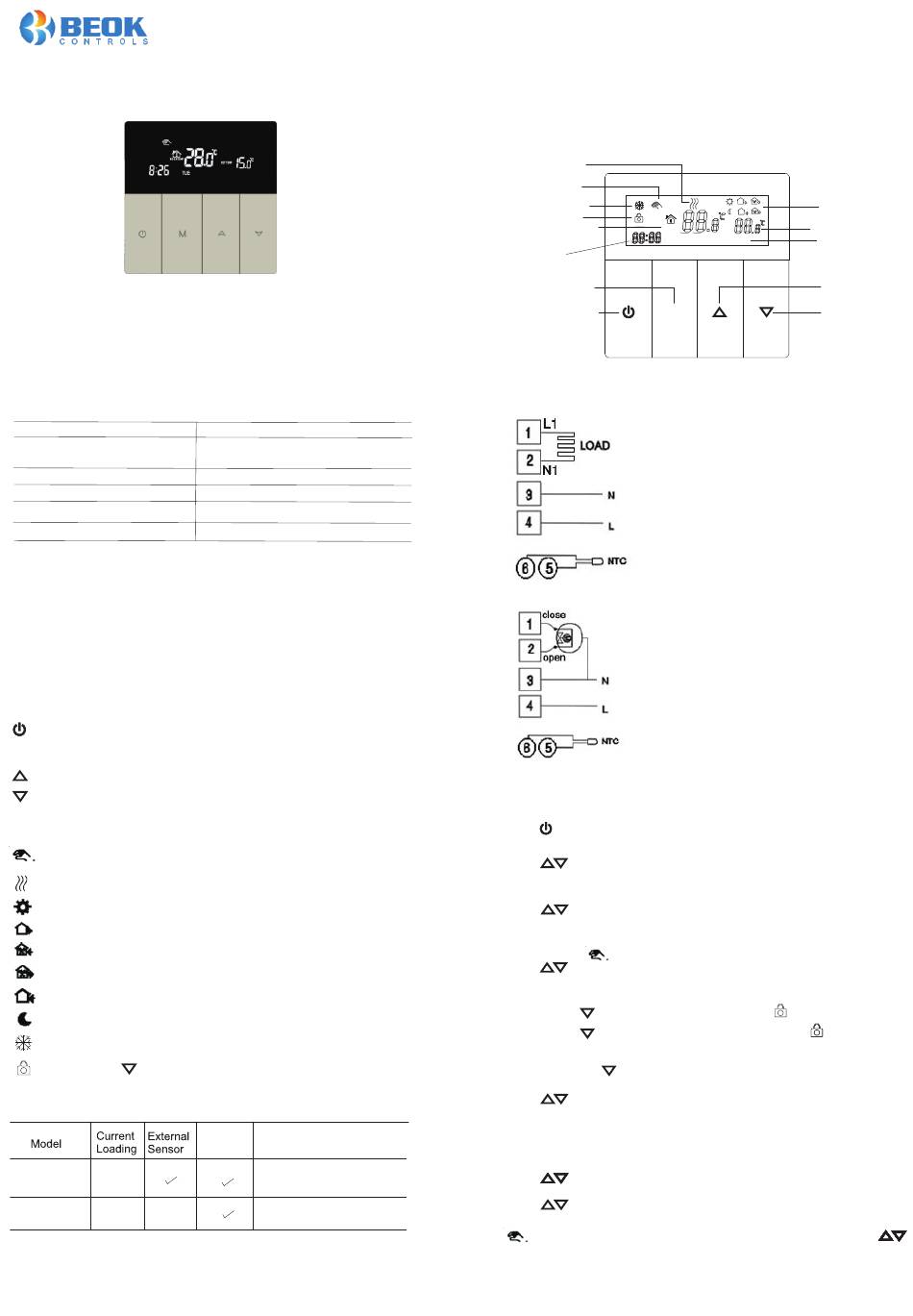

Beok Controls TGP51 Quick Start Manual

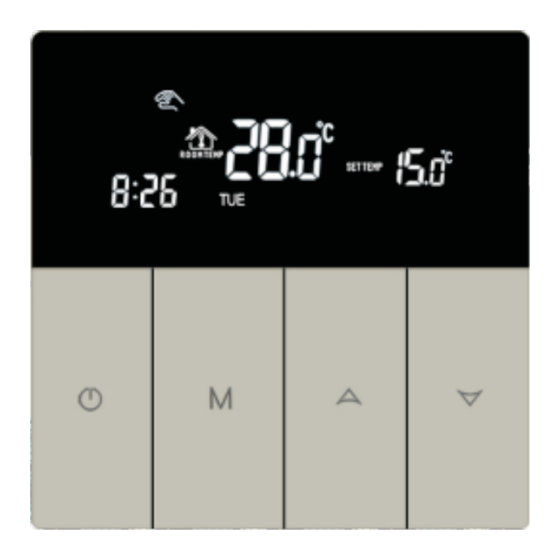

TGP51 TOUCH SCREEN THERMOSTAT
I. Product Summary:
The digital heating liquid crystal temperature controller adopts the most
advanced microcomputer control chip in the world, and detects the
temperature through a high-precision sensor inside the thermostat. And in
real time, compared with the temperature set by the user, the load (electric
heating device or valve) is automatically turned on and off to achieve the
purpose of maintaining the indoor constant temperature.
II. Technical Parameter:
Power Supply
Current Load
Power Consumption
Sensing Element
Set Temp. Range
Accuracy
III. Main Functions and Characteristics
1. Large screen display and touch button
2. Power-off memory function
3. Real-time data save function
. 4 5+2 or 6+1or 7days six periods program schedule
5. Anti-freezing function
6. 3 sensor modes can be setting
7. Selectable 80mmx80mm European hidden box.
8. With child lock function
IV. Button Function
Power on/off;
M Mode button: switch manual, automatic time control, temporary
manual, long press time, hour, minute, week settings.
Upper button: temperature plus, plus parameters;
Lower button: temperature minus, minus parameter.
V. Display and Function Description
Manual control, flashing for temporary manual control, no display
for automatic control
Heating
The first period, get up in the morning;
The second time, go out in the morning;
The third time, go home at noon;
The fourth time, go out at noon;
The fifth time, go home at night;
The sixth period, sleep at night;
The antifreeze function is turned on.
M
Press and unlock or unlock at the same time.
VI. Model Specific
TGP51-EP
16A
TGP51-WP
3A
200 ~ 240V 50 ~60Hz
≤3A（water heating)
≤16A(electric heating)
<0.3W
NTC
5-60℃
±1℃
Week
Controlled Objects
Program
For electric heating appliances
For water heating appliances
VII. User Interface Explanation
Heating
Manual
Antifreeze
Child lock
Room temperature
ROOM TEMP
OUT TEMP
Out temperature
MON TUE WED THU FRI SAT SUN
Clock
Manual / Automatic
M
Power on / Power off
VIII.Wiring Digram
TGP51-EP
TGP51-WP
IX. Thermostat Operation Instruction
1. Setting Power on/off
Press to turn on/off the power.
2. Setting Temperature
Press to set the temperature.
3. Setting the Clock
M
Press to set minute, hour and week.
Press for adjusting.
4. Setting the Manual Mode.
Manual mode means non-programmable mode.
M
Press , then will display in the screen, it is in manual mode.
Press to set the temperature.
M
Long press to set minute, hour and week.
5. Setting the Child Lock
M
Press and at the same time in the on state
Press M and at the same time in the on state again
6. Setting the Programmable Mode.
M
Press the and at the same time in the off state. LOOP and 12345
will display.
Press to select the control way: 5+2 or 6+1 or 7 days programmable.
12345 display in the position of week means 5+2;
123456 display in the position of week means 6+1;
1234567 display in the position of week means 7 days programmable.
M
Press to do time adjustment.
Press to change the time;
Press M to select the periods.
Press to change the temperature ;
Press M again to do time adjustment.
will disappear in automatic control state. You can directly press
to adjust temperature, This will return to manual mode.
Six time periods
Setting temperature
SET TEMP
Week
Up
Down
, will display.
, will disappear
.
