Instruction Manual
Type A11 High Performance Butterfly Valve
......................................................
..............................................
......................................................
.................................................
.........................................................
............................................
..........................................
............................................
.....................................................
..............................................
..........................................
Cryoge ic Seal Installation
............................................
.................................................
.........................................................
Introduction
Scope of Manual
This instruction manual includes installation,
maintenance, and parts information for Type A11
High Performance Butterfly Valves (figure 1) in Class
150, 300, and 600. For Class 900 and 1500 valves,
contact your Emerson Process Managementt sales
office.
For information about the actuator and accessories,
please refer to the separate instruction manuals for
these items.
Do not install, operate, or maintain a Type A11 valve
without first D being fully trained and qualified in
valve, actuator, and accessory installation,
operation, and maintenance, and D carefully reading
All manuals and user guides at all-guides.com
По вопросам продаж и поддержки обращайтесь:
(473)204-51-73,
(343)384-55-89,
(831)429-08-12,
Единый адрес: fhv@nt-rt.ru
www.fishvalve.nt-rt.ru
..............................
.................................
..........
........................................
.......................................
10
.
10
10
........
...................................
1 1 1 1 1 1
..........................
13
..........
13
15
.....................................
15
16
17
(843)206-01-48,
(846)206-03-16,
-
1
1
1
3
3
3
4
4
6
7
7
8
9
9

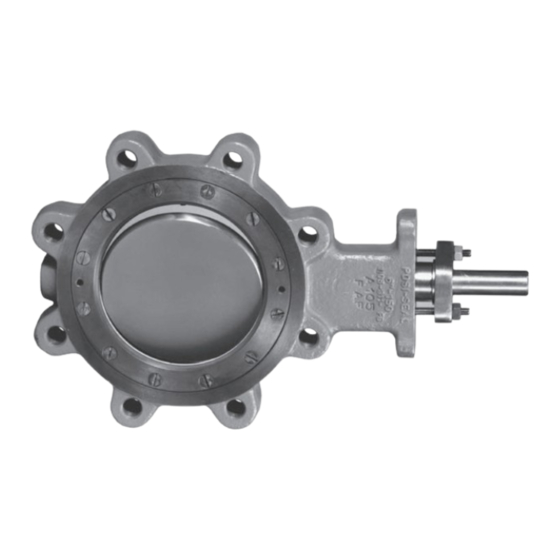

Figure 1. Type A11 Valve
and understanding the contents of this manual. If
you have any questions about these instructions,
contact your Emerson Process Management sales
office before proceeding.
Neither Emerson, Emerson Process
Management, nor any of their affiliated
entities assumes responsibility for the
selection, use and maintenance of any
product. Responsibility for the
selection, use, and maintenance of any
product remains with the purchaser
and end-user.
Description
Type A11 High Performance Butterfly Valves are
available in either a flangeless wafer or a single
flange design, with a variety of seal, valve body, and
internal components. These valves feature a
dynamic sealing design that is used in a variety of
demanding applications.
(861)203-40-90,
(812)309-46-40,
(845)249-38-78,
A11 Valve
W4641-1/IL
W4642-1/IL
Note
(391)204-63-61,
Advertisement
Table of Contents
Related Manuals for Emerson FISHER A11
Summary of Contents for Emerson FISHER A11
-
Page 1: Table Of Contents
Valve Shaft/Disc Pin Unit Maintenance ..and understanding the contents of this manual. If Gasket Retainer ..........Bearing Maintenance ........you have any questions about these instructions, contact your Emerson Process Management sales Parts Ordering ..........office before proceeding. Parts List ............Note Introduction... - Page 2 1623 1157 2100 3100 1778 2470 1380 1978 2900 4385 2871 3418 2425 2928 4989 6009 4198 4955 3537 4204 6737 9209 4844 6151 4747 6379 5329 7203 8604 11,282 1. Consult your Emerson Process Management sales office for information.
-
Page 3: Specifications
Single Flange valve at least ten times to re-energize the dynamic seal. Please contact your Emerson Process Management sales office if you have any questions about preparing a valve for storage or if you are planning to put into service a valve that has been stored for some time. -
Page 4: Preparing For Installation
For metal-seated and cryogenic valve gasket recommendations, please contact your Emerson CAUTION Process Management sales office. 4. Refer to the appropriate table for the quantity and To avoid product damage, inspect the... - Page 5 All manuals and user guides at all-guides.com A11 Valve Table 4. Stud Bolt and Cap Screw Data for Wafer Style Valves Class 150 & Class 150/150 VALVE SIZE, INCHES Number of Stud Bolts Number of Cap Screws Size-Diameter Inch Thread 1-1/4 1-1/2 1-1/2...
-
Page 6: Installing The Valve
If you have questions about proper valve orientation end-user. Since some valve/body trim in a specific application, contact your Emerson material combinations are limited in Process Management sales office. their pressure drop and temperature... -
Page 7: Thrust Washers
All manuals and user guides at all-guides.com A11 Valve B2263/IL Figure 3. Proper Installation Procedure the final bolting torque. Repeat this procedure Thrust Washers several times increasing the torque value each time Two thrust washers are used in valve sizes 10-inch by a fourth of the final desired torque. -
Page 8: Maintenance
All manuals and user guides at all-guides.com A11 Valve prevent shaft leakage. Excessive tightening of ACTUATOR VALVE BODY packing will accelerate wear and could produce higher rotating friction loads on the valve shaft. If necessary, refer to the Packing Maintenance section. -
Page 9: Removing The Valve
All manuals and user guides at all-guides.com A11 Valve D Use lockout procedures to be necessary, stroke the actuator to place the disc in the closed position while sure the above measures stay in effect while you work on the equipment. removing the valve from the pipeline. -
Page 10: Lantern Rings
All manuals and user guides at all-guides.com A11 Valve BACK-UP GRAPHITE BODY BODY RING GASKET LARGEST LARGEST BACK-UP OUTSIDE SEAL RING OUTSIDE RING DIAMETER DIAMETER METAL SEAL RETAINING RING RING HIGH PRESSURE RESILIENT AT SHUTOFF INSERT VALVE DISC VALVE DISC HIGH PRESSURE AT SHUTOFF SOFT SEAL WITH... -
Page 11: Metal An N N D Phoenix Iii Seal Installation
All manuals and user guides at all-guides.com A11 Valve 4. When the seal is thoroughly seated, re-install the CAUTION retaining ring and screws. Tighten the retaining screws just enough to eliminate vertical movement of the retaining ring. With the use of the blunt end In the following step, use the appropriate tool to avoid damage to tool, carefully tuck the lip of the seal ring under the... - Page 12 All manuals and user guides at all-guides.com A11 Valve Figure 6. Typical Seal Ring (Sectional) opening between the valve body and the seal ring. Use the seal tool to apply pressure to the backup ring and carefully tuck the backup ring down into the T-slot between the valve body and the seal ring.
-
Page 13: Valve Shaft/Disc Pin Unit Maintenance
All manuals and user guides at all-guides.com A11 Valve 4. Install the retaining ring and align the screw holes CAUTION in the retaining ring with the holes in the valve body. Install the first retaining ring screw through the punched hole in the ring gasket. Install the other ring If a vise or other clamps are being screws by pushing the screws through the graphite used, be sure damage is not done to... - Page 14 All manuals and user guides at all-guides.com A11 Valve A5249/IL Figure 8. Packing Configurations Note several inches above the disc when screwed into a pin. The disc must be removed from the waterway side of the valve body, which 5. After screwing the rod into the pin, slide the is the side opposite the T-slot area.
-
Page 15: Gasket Retainer
All manuals and user guides at all-guides.com A11 Valve Before placing disc into a valve body, properly align Table 6. Torque Values for Fasteners the top of the disc with the top of the valve. A ”T” is Fastener InSlb FtSlb stamped on the disc to indicate alignment. -
Page 16: Parts Ordering
Fisher valve, because they will void your warranty, might adversely affect the When corresponding with your Emerson Process performance of the valve, and could Management sales office about a Type A11 valve, give rise to personal injury and please mention the valve serial number which is property damage. -
Page 17: Parts List
V124883X012 42-inch Class 150 & 150/150 V124872X012 Part numbers are shown for recommended spares 42-inch Class 300 V124881X012 only. For other part numbers, contact your Emerson 48-inch Class 150 & 150/150 V125088X012 Process Management sales office. 48-inch Class 300 V124874X012... - Page 18 All manuals and user guides at all-guides.com A11 Valve Description Part Number ENVIRO-SEALr Packing Parts 106* Anti-Extrusion Ring (2 req’d) Parts shown are used in standard and NACE constructions. Use w/PTFE packing Stud 3-inch 12B9121X012 Hex Nut 4-inch 12B7418X012 Packing Flange 6-inch 12B9084X012 Spring Pack...
- Page 19 All manuals and user guides at all-guides.com A11 Valve Key 8* Seal Ring MATERIAL VALVE SIZE, CLASS Metal Seal Ring S17400 Phoenix III Metal Seal INCHES ETFE Metal Seal Ring S31600 H1150M Ring V111012X012 V110605X012 V110605X022 V114478X012 V111035X012 V149609X012 V149609X022 V114480X012 V118868X012 V118864X012...
- Page 20 All manuals and user guides at all-guides.com A11 Valve Keys 10* and 11* Bearing and Thrust Bearing BEARING MATERIAL VALVE SIZE, CLASS QUANTITY INCHES PEEK S31600 Bronze Alloy 6 Key 10 Bearing 13B1509X012 V110614X022 V110614X022 V110614X042 13B1660X012 V166684X012 V166684X032 V166684X052 13B1489X012 V168505X012 V168505X022...
- Page 21 All manuals and user guides at all-guides.com A11 Valve Key 14* Packing Set MATERIAL VALVE SIZE, INCHES CLASS PTFE V-Ring Graphite Graphite with Oxygen Service V113124X022 V113124X012 V113124X032 V113128X022 V113128X012 V113128X032 V111025X022 V111620X012 V111025X032 V110456X012 V110456X022 V110456X032 V111028X032 V111028X012 V111028X022 V111696X032 V111696X012 V111696X022...
- Page 22 All manuals and user guides at all-guides.com A11 Valve Key 19* Retainer Gasket (not shown) MATERIAL VALVE SIZE, INCHES CLASS Standard Service Standard Service Oxygen Service Soft Seal Metal/Phoenix III Seal with Soft or Metal Seals V135212X022 V135212X012 V135212X032 V135209X022 V135209X012 V135209X032 V148910X032...
- Page 23 All manuals and user guides at all-guides.com A11 Valve Key 28*, Disc-Shaft-Pin Assembly Square Connection [Disc (key 3), Shaft (key 4), Follower Shaft (key 5), and Pin (key 6)] DISC MATERIAL VALVE SIZE, INCHES SHAFT MATERIAL CF8M Chrome Coated CF8M ENC CF8M Hard Face S17400 H1025 V138800X092...
