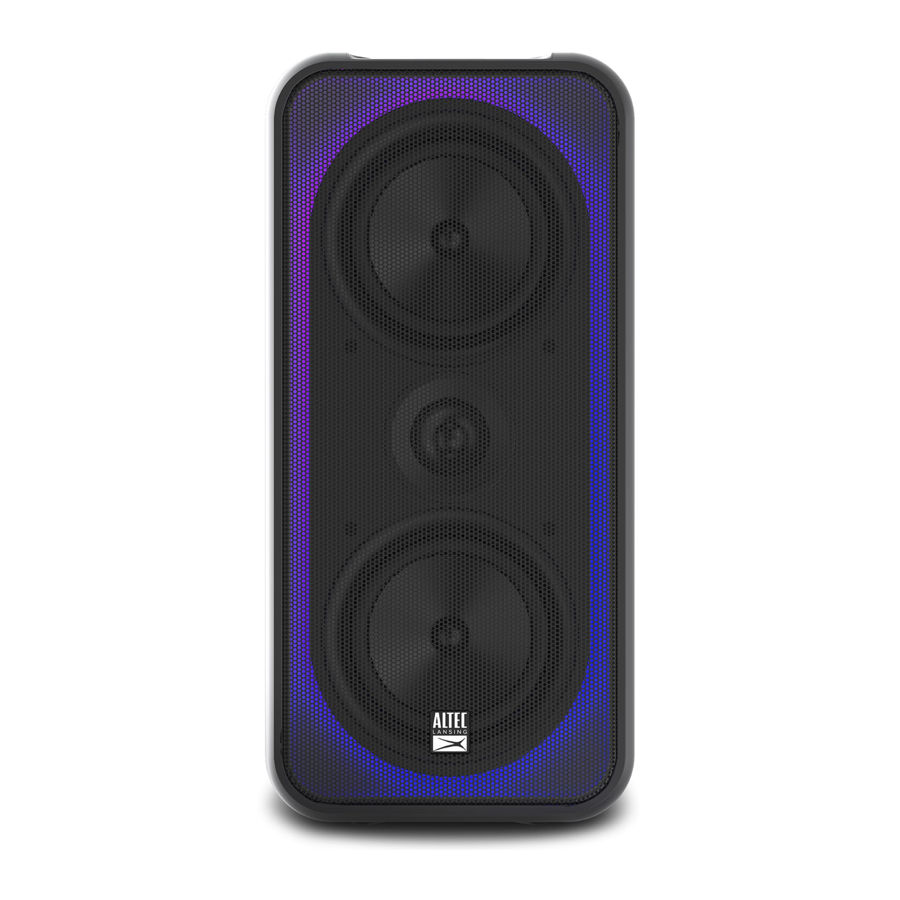

Altec Lansing Shockwave 200 IMT7100 - Wireless Party Speaker Manual

Table of Contents

Contents

1 WHAT'S INCLUDED
2 DEVICE CONTROLS
- 2.1 Reset to default settings
3 Bluetooth Connection
4 Party-sync with AL SHOCKWAVE Family
5 LIGHTING CONTROL
6 INPUT/OUTPUT PORTS
7 SPECIFICATIONS
8 SAFETY PRECAUTIONS
9 Documents / Resources
- 9.1 References
- 9.2 Download manual

WHAT'S INCLUDED

DEVICE CONTROLS

Brief introduction to buttons on top panel
DEVICE CONTROLS

Light Modes:
Briefly press to turn on the lighting. Cycles through 9 modes and then back to off

BT & Party-sync Button:
Briefly press to enter into Bluetooth pairing mode,
Press and hold for Bluetooth disconnect,
Double-click for party-sync connect or disconnect

Bass Modes:
Briefly press to cycle through 3 bass modes, Standard (flat), Bass Enhance 1 and Bass Enhance 2

Reset to default settings

Press and hold the BASS button for 10S to reset all settings back to factory default.

Bluetooth Connection

Go to the Bluetooth settings menu on your phone. Make sure that Bluetooth is turned on. Connect to the device listed as "AL Shockwave 200"
Bluetooth Connection

If needed briefly press the BT button to enter into BT mode;

If you want to change to a different BT device when already paired press and hold the BT button, the speaker will disconnect from its paired device. A different device can now be paired.

Party-sync with AL SHOCKWAVE Family

Party-sync with AL SHOCKWAVE Family
A double press of the BT button is used to enter/exit party-sync mode on extra speakers if you have them as below.

Item Number	Item name	Pairing Name
IMT7000	Shockwave Wireless Party Speaker	AL Shockwave
IMT7100	Shockwave 200 Wireless party speaker	AL Shockwave 200
IMT7200	Shockwave 300 Wireless Party Speaker	AL Shockwave 300
IMT7300	Shockwave 400 Wireless Party Speaker	AL Shockwave 400

The Altec Lansing SHOCKWAVE family has four members that support party-sync. You can mix and match between any of these four models, setting up one speaker as the primary unit connected to up to 100 other speakers all playing in sync.

Connect one speaker to your Bluetooth device in the normal way via Bluetooth.
Double press the BT button on this first speaker to enter Party sync and make it the primary speaker.
Double-press the BT button on the next speaker to enter Party-sync mode, its BT LED will flashes slowly and it will find and connect to the first (primary) speaker.
Repeat No 3 if you have more speakers you want to connect.
To exit party-sync double press the BT button on the speakers you wish to disconnect and return to normal operation.

Notes:

Playback volume is adjusted via the first (primary) speaker.
The BT playback controls only operate on the first (primary) speaker.
Turning off the first (primary) speaker turns off all speakers.
All secondary speakers can be turned on/off individually and their light modes changed via their individual controls.

LIGHTING CONTROL

Briefly press the LIGHTS button to switch lighting mode.
(Note: Some modes which use 'sound-to-light' need music playing to be visible)

Each press moves to the next mode and back round to off.
Mode 1: Rotating ring in three colors
Mode 2: Flashing to music
Mode 3: 'Spectrum'
Mode 4: 'Stacking/re-stacking' lights both sides
Mode 5: Rotating lights in multi-colors
Mode 6: Breathing on/off
Mode 7: Flashing to music, solid lighting when no audio
Mode 8: 'Bar-graph' in multi-colors
Mode 9: Rotating 'stacking/re-stacking' lights

INPUT/OUTPUT PORTS

Descriptions about the various ports on the speaker
INPUT/OUTPUT PORTS
RESET:
Button is recessed inside.
For use only in the unlikely case of a lock up.
Use paperclip or pin to perform restart of the speaker.

SPECIFICATIONS

Power Audio: 180W (Peak) Total
Driver Units: 2 x 5.25" Bass + 2" Tweeter.
S/N: ≥70dB
Distortion: ≤0.5% 1K,1W)
USB-A output: 5V 1A
USB-C charging Input: 19V 1.5A
Dimensions: L223*H465*D190 mm
Length of ULAdaptor cable: 110cm
